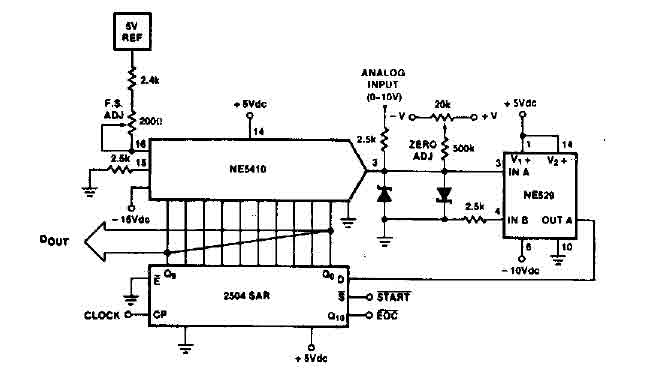

Simple A/D converter circuit with 2504

Published:2012/9/11 21:16:00 Author:Ecco | Keyword: Simple A/D converter | From:SeekIC

Time IO-bit conversion is 3.3 MHz with a p 3. Clock. This converter uses an approximation 2504 12-bit register in successive operating mode where the short-cycle end signal conversion is taken from the first bit used in the SAR (QLO).
