Sound control electric fan speed governing and the cricket voice control circuit

Published:2011-8-30 2:07:00 Author:Christina | Keyword: Sound control, electric fan, speed governing, cricket voice, control circuit | From:SeekIC

555, CD4022, 9014, KD-56018, LM386, 7809 request for quotation
Click here to send inquiry

You can post buying lead, and our suppliers will quote via our online message system or other channels soon.

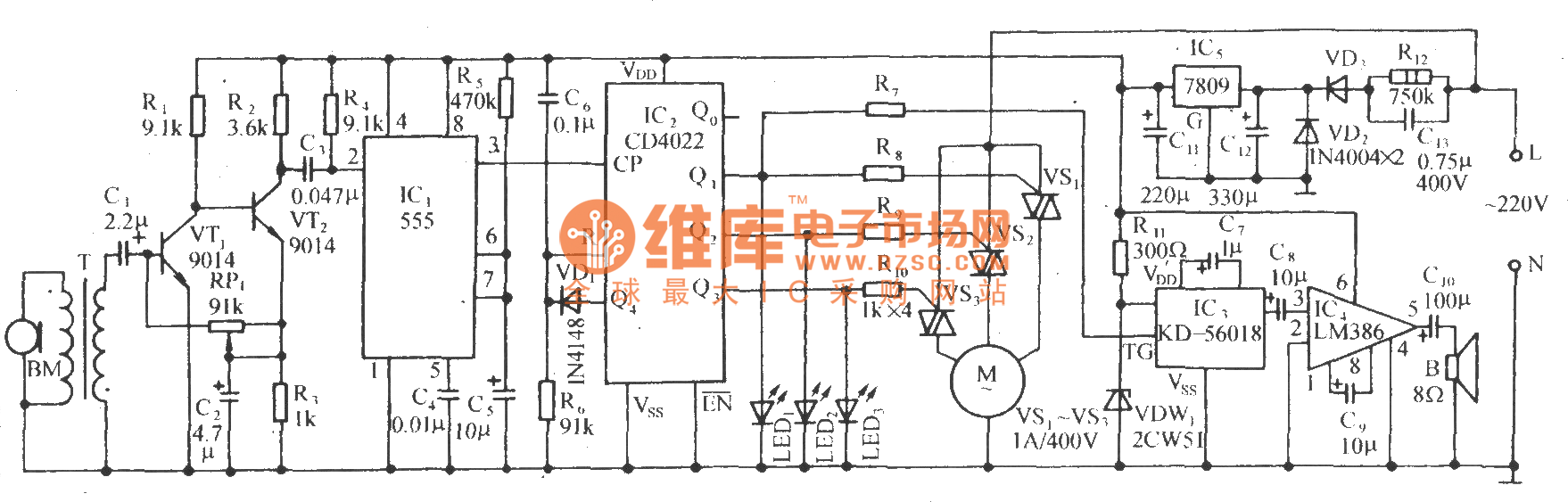

As the figure shows, it is composed of the sound control sensor, the audio-frequency amplifier, the monostable trigger circuit, the pulse count/distribution circuit, the SCR speed control circuit, the cricket sound circuit and the AC step-down rectifier circuit. This circuit uses the triggering sound control mode, and it has the three-stage wind-speed control and stalled control functions, when the fan is blowing, there is the sound of cricket. It has strong anti-interference characteristic.
