SINGLE_TRANSISTOR_CODE_PRACTICE_OSCILLATOR

Published:2009/6/17 3:01:00 Author:May | From:SeekIC

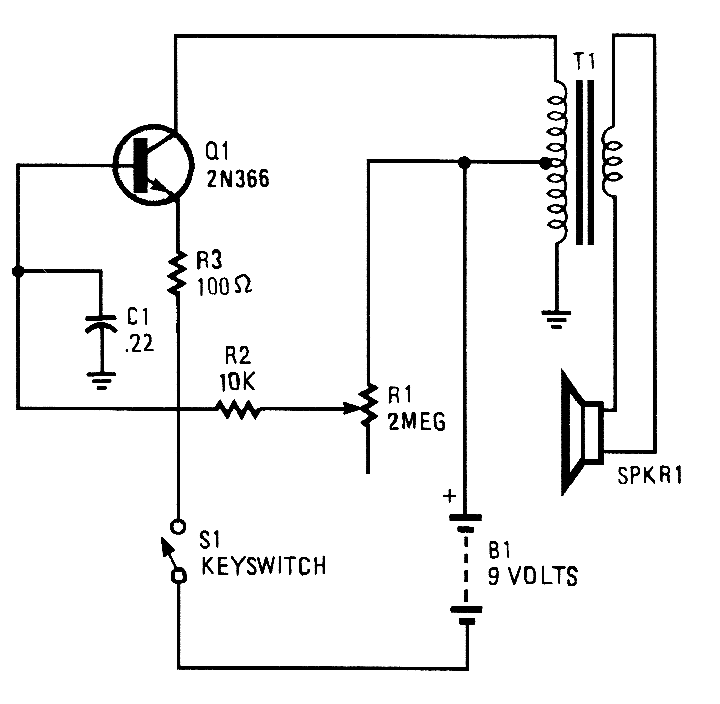

A 2N366 is configured as an audio feedback oscillator using an audio transformer is shown. Adjust R1 for proper operation and desired audio note.
