Purchase 2SJ412(TE24L,Q), In-stock 2SJ412(TE24L,Q) From SeekIC.

MFG:Toshiba (VA) Category:Discrete Semiconductor Products

Five Points

Category: Discrete Semiconductor Products

MFG: Toshiba (VA)

Descriptions: MOSFET P-CH 100V 16A TO-220SM

Price Break

1
10
100
250
500

Unit Price

2.89000
2.40800
1.92600
1.44452
1.34820

Extended Price

2.89
24.08
192.60
361.13
674.10

(All prices are in USD) Prices for reference only

MOSFET P-CH 100V 16A TO-220SM

Technical/Catalog Information	2SJ412(TE24L,Q)
Vendor	Toshiba (VA)
Category	Discrete Semiconductor Products
Mounting Type	Surface Mount
FET Polarity	P-Channel
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25° C	16A
Rds On (Max) @ Id, Vgs	210 mOhm @ 6A, 10V
Input Capacitance (Ciss) @ Vds	1100pF @ 10V
Power - Max	60W
Packaging	Digi-Reel?
Gate Charge (Qg) @ Vgs	48nC @ 10V
Package / Case	TO-220SM
FET Feature	Logic Level Gate
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	2SJ412 TE24L,Q 2SJ412TE24L,Q 2SJ412QDKR ND 2SJ412QDKRND 2SJ412QDKR

2SJ0163
PDF/DataSheet Download

·2SJ0164
PANASONIC [Panasonic Semiconductor]
For Switching
73769 KB
·2SJ0364
PANASONIC [Panasonic Semiconductor]
For analog switch
73467 KB
·2SJ0536
PANASONIC [Panasonic Semiconductor]
Silicon P-Channel MOS FET
31978 KB
·2SJ0582
PANASONIC
Silicon P-channel power MOSFET
103559 KB
·2SJ0674
PANASONIC
Silicon P-channel MOSFET
103559 KB
·2SJ103
TOSHIBA [Toshiba Semiconductor]
P CHANNEL JUNCTION TYPE (FOR AUDIO AMPLIFIER , ANALOG SWITCH, CONSTANT CURRENT AND IMPEDANCE CONVERTER APPLICATIONS)
190039 KB
·2SJ104
TOSHIBA [Toshiba Semiconductor]
P CHANNEL JUNCTION TYPE (FOR AUDIO AMPLIFIER, ANALOG SWITCH, CONSTANT CURRENT AND IMPEDANCE CONVERTER APPLICATIONS)
213830 KB
·2SJ105
TOSHIBA [Toshiba Semiconductor]
P CHANNEL JUNCTION TYPE (FOR AUDIO AMPLIFIER, ANALOG SWITCH, CONSTANT CURRENT AND IMPEDANCE CONVERTER APPLICATIONS)
190433 KB

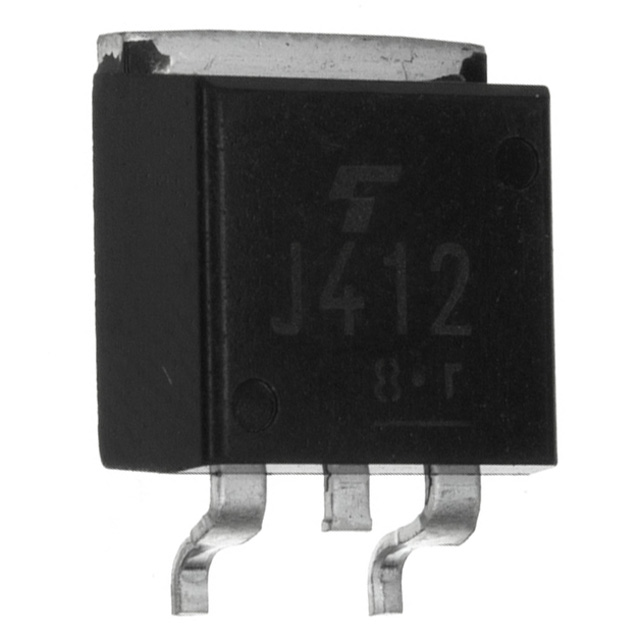

2SJ412(SM,Q)
