Purchase 74AC244SJ, In-stock 74AC244SJ From SeekIC.
Package Cooled:SOP D/C:02+
Part Number: 74AC244SJ
Package Cooled: SOP
D/C: 02+
Description: The AC/ACT244 is an octal buffer and line driver designed to be employed as a memory address driver, c...
- Table of contents:
74AC244SJ
-
Suppliers
DataSheet
General Description
74AC244SJ General Description
The AC/ACT244 is an octal buffer and line driver designed to be employed as a memory address driver, clock driver and bus-oriented transmitter/receiver which provides improved PC board density.
74AC244SJ Maximum Ratings
Supply Voltage (VCC) ......................... -0.5V to + 7.0V
DC Input Diode Current (IIK)
VI = 0.5V .....................................................-20 mA
VI = VCC + 0.5V ..........................................+20 mA
DC Input Voltage (VI) ..................-0.5V to VCC + 0.5V
DC Output Diode Current (IOK)
VO = 0.5V ....................................................-20 mA
VO = VCC +0.5V ..........................................+20 mA
DC Output Voltage (VO)................ -0.5V to VCC+0.5V
DC Output Source
or Sink Current (IO) ....................................±50 mA
DC VCC or Ground Current
per Output Pin (ICC or IGND) .....................± 50 mA
Storage Temperature(TSTG)............ -65oC to +150oC
Junction Temperature (TJ)
PDIP............................................................ 140oC
Supply Voltage (VCC)
AC.......................................................2.0V to 6.0V
ACT.....................................................4.5V to 5.5V
Input Voltage (VI).......................................0V to VCC
Output Voltage (VO)....................................0V to VCC
Operating Temperature (TA) .............-40oC to +85oC
Minimum Input Edge Rate (V/t)........... 125 mV/ns
ACT Devices
VIN from 30% to 70% of VCC
VCC @ 3.3V, 4.5V, 5.5V
Minimum Input Edge Rate (V/t)........... 125 mV/ns
ACT Devices
VIN from 0.8V to 2.0V
VCC @ 4.5V, 5.5V
Note 2: Absolute maximum ratings are those values beyond which damage to the device may occur. The databook specifications should be met, without exception, to ensure that the system design is reliable over its power supply, temperature, and output/input loading variables. Fairchild does not recommend operation of FACT™ circuits outside databook specifications.
DC Input Diode Current (IIK)
VI = 0.5V .....................................................-20 mA
VI = VCC + 0.5V ..........................................+20 mA
DC Input Voltage (VI) ..................-0.5V to VCC + 0.5V
DC Output Diode Current (IOK)
VO = 0.5V ....................................................-20 mA
VO = VCC +0.5V ..........................................+20 mA
DC Output Voltage (VO)................ -0.5V to VCC+0.5V
DC Output Source
or Sink Current (IO) ....................................±50 mA
DC VCC or Ground Current
per Output Pin (ICC or IGND) .....................± 50 mA
Storage Temperature(TSTG)............ -65oC to +150oC
Junction Temperature (TJ)
PDIP............................................................ 140oC
Supply Voltage (VCC)
AC.......................................................2.0V to 6.0V
ACT.....................................................4.5V to 5.5V
Input Voltage (VI).......................................0V to VCC
Output Voltage (VO)....................................0V to VCC
Operating Temperature (TA) .............-40oC to +85oC
Minimum Input Edge Rate (V/t)........... 125 mV/ns
ACT Devices
VIN from 30% to 70% of VCC
VCC @ 3.3V, 4.5V, 5.5V
Minimum Input Edge Rate (V/t)........... 125 mV/ns
ACT Devices
VIN from 0.8V to 2.0V
VCC @ 4.5V, 5.5V
Note 2: Absolute maximum ratings are those values beyond which damage to the device may occur. The databook specifications should be met, without exception, to ensure that the system design is reliable over its power supply, temperature, and output/input loading variables. Fairchild does not recommend operation of FACT™ circuits outside databook specifications.
74AC244SJ Features
ICC and IOZ reduced by 50%
3-STATE outputs drive bus lines or buffer memory address registers
Outputs source/sink 24 mA
ACT244 has TTL-compatible inputs
3-STATE outputs drive bus lines or buffer memory address registers
Outputs source/sink 24 mA
ACT244 has TTL-compatible inputs
74AC244SJ
PDF/DataSheet Download
- Datasheet: 74AC244SJ
- File Size: 113968 KB
- Manufacturer: FAIRCHILD [Fairchild Semiconductor]
- Click here to Download
- ·74ABH16244ADGG
- PHILIPS [Philips Semiconductors]
- 16-bit buffer/line driver 3-State
- 77546 KB
- ·74ABH16244ADL
- PHILIPS [Philips Semiconductors]
- 16-bit buffer/line driver 3-State
- 77546 KB
- ·74ABT00
- PHILIPS [Philips Semiconductors]
- Quad 2-input NAND gate
- 97320 KB
- ·74ABT00D
- PHILIPS [Philips Semiconductors]
- Quad 2-input NAND gate
- 97320 KB
- ·74ABT00DB
- PHILIPS [Philips Semiconductors]
- Quad 2-input NAND gate
- 97320 KB
- ·74ABT00N
- PHILIPS [Philips Semiconductors]
- Quad 2-input NAND gate
- 97320 KB
- ·74ABT00PW
- PHILIPS [Philips Semiconductors]
- Quad 2-input NAND gate
- 97320 KB
- ·74ABT00PWDH
- PHILIPS [Philips Semiconductors]
- Quad 2-input NAND gate
- 97320 KB
74AC244SJ Relative Products

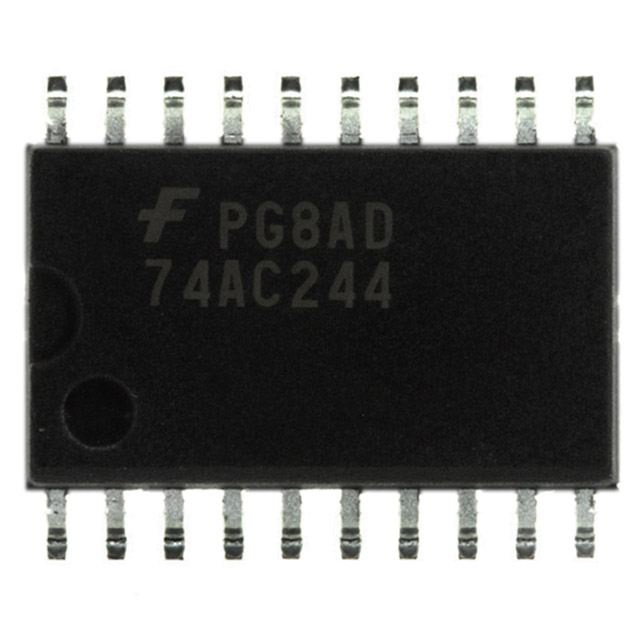

74AC244SCX
IC BUFF DVR TRI-ST OCTAL 20SOIC

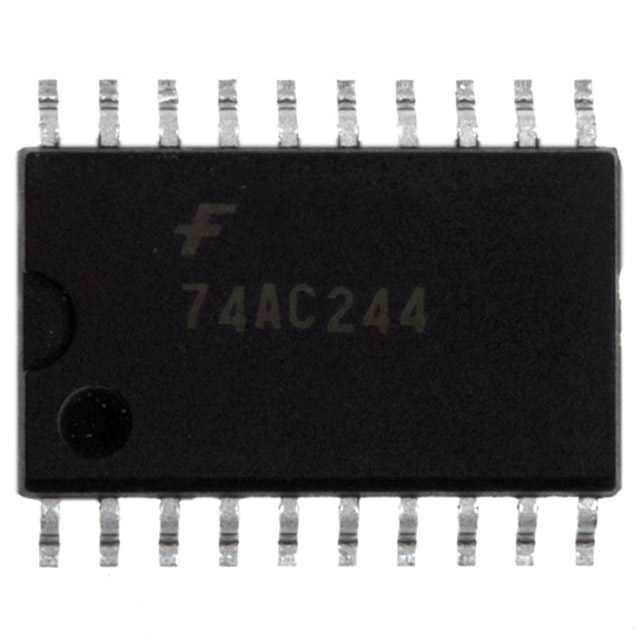

74AC244SC
