Purchase BTS410F2, In-stock BTS410F2 From SeekIC.
MFG:SIEMENS D/C:03+
- Table of contents:
BTS410F2
-
Suppliers
DataSheet
General Description
BTS410F2 Maximum Ratings
| Parameter |
Symbol |
Values |
Unit |
| Supply voltage (overvoltage protection see page 3) | Vbb |
65 |
V |
| Load dump protection1) VLoadDump = VA + Vs, VA = 13.5V RI3)= 2 , RL= 6.6 , td= 400 ms, IN= low or high |
VLoaddump4) |
100 |
V |
| Load current (Short circuit current, see page 4) | IL |
self-limited |
A |
| Operating temperature range Storage temperature range |
Tj Tstg |
-40 ...+150 -55 ...+150 |
°C |
| Power dissipation (DC), TC 25 °C | Ptot |
85 |
W |
| Inductive load switch-off energy dissipation, single pulse Vbb = 12V, T j,start = 150°C, TC = 150°C const. IL = 1.8 A, ZL = 2.3 mH, 0 : |
EAS |
4.5 |
J |
| Electrostatic discharge capability (ESD) IN: (Human Body Model) all other pins: acc. MIL-STD883D, method 3015.7 and ESD assn. std. S5.1-1993 |
VESD |
1 2 |
kV |
| Input voltage (DC) | VIN |
-0.5 ... +6 |
V |
| Current through input pin (DC) Current through status pin (DC) see internal circuit diagrams page 6 |
IIN IST |
±5.0 ±5.0 |
mA |
BTS410F2 Features
• Overload protection
• Current limitation
• Short circuit protection
• Thermal shutdown
• Overvoltage protection (including load dump)
• Fast demagnetization of inductive loads
• Reverse battery protection1)
• Undervoltage and overvoltage shutdown with
auto-restart and hysteresis
• Open drain diagnostic output
• Open load detection in ON-state
• CMOS compatible input
• Loss of ground and loss of Vbb protection
• Electrostatic discharge (ESD) protection
• Current limitation
• Short circuit protection
• Thermal shutdown
• Overvoltage protection (including load dump)
• Fast demagnetization of inductive loads
• Reverse battery protection1)
• Undervoltage and overvoltage shutdown with
auto-restart and hysteresis
• Open drain diagnostic output
• Open load detection in ON-state
• CMOS compatible input
• Loss of ground and loss of Vbb protection
• Electrostatic discharge (ESD) protection
BTS410F2 Typical Application
• µC compatible power switch with diagnostic feedback for 12 V and 24 V DC grounded loads
• Most suitable for inductive loads
• Replaces electromechanical relays, fuses and discrete circuits
• Most suitable for inductive loads
• Replaces electromechanical relays, fuses and discrete circuits
BTS410F2
PDF/DataSheet Download
- Datasheet: BTS410F2
- File Size: 325697 KB
- Manufacturer: SIEMENS [Siemens Semiconductor Group]
- Click here to Download
- ·BTS100
- SIEMENS [Siemens Semiconductor Group]
- Smart Highside Power Switch TEMPFET (P channel Enhancement mode Temperature sensor with thyristor characteristic)
- 447180 KB
- ·BTS110
- INFINEON [Infineon Technologies AG]
- TEMPFET(N-channel Enhancement mode Temperature sensor with thyristor characteristic)
- 574041 KB
- ·BTS112
- SIEMENS [Siemens Semiconductor Group]
- TEMPFET (N channel Enhancement mode Temperature sensor with thyristor characteristic)
- 327460 KB
- ·BTS112A
- INFINEON [Infineon Technologies AG]
- TEMPFET(N-channel Enhancement mode Temperature sensor with thyristor characteristic)
- 593185 KB
- ·BTS113
- SIEMENS [Siemens Semiconductor Group]
- TEMPFET (N channel Logic level Enhancement mode Temperature sensor with thyristor characteristic)
- 316535 KB
- ·BTS113A
- INFINEON [Infineon Technologies AG]
- TEMPFET(N-channel Logic level Enhancement mode Temperature sensor with thyristor characteristic)
- 561964 KB
- ·BTS114
- INFINEON [Infineon Technologies AG]
- TEMPFET(N channel Enhancement mode Temperature sensor with thyristor characteristic)
- 589015 KB
- ·BTS114A
- INFINEON [Infineon Technologies AG]
- TEMPFET(N channel Enhancement mode Temperature sensor with thyristor characteristic)
- 589015 KB
BTS410F2 Relative Products

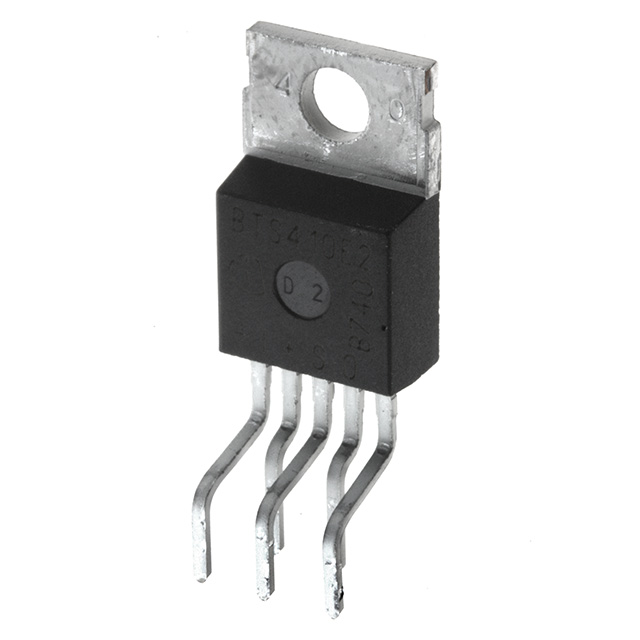

BTS410E2
