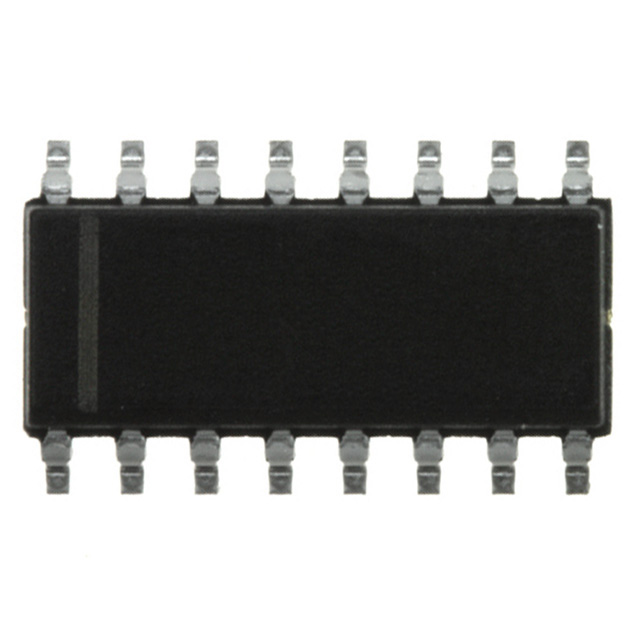

MAX4618CSE+

The MAX4618CSE+is a type of high-speed, lowvoltage,CMOS analog ICs configured as two 4-channel multiplexers(MAX4618). The CM OS devices is able to operate continuously with a +2V to +5.5V single supply. Each switch can deal with Rail-to-Rail analog signals. The off-leakage current is only 1nA at TA = +25°C and 10nA at TA = +85°C.All digital inputs have 0.8V to 2.4V logic thresholds to ensure TTL/CMOS-logic compatibility when using a single +5V supply.

Features of the MAX4618CSE+ are:(1)fast switching times is 15ns tON and 10ns tOFF;(2)guaranteed on-resistance is 10W max (+5V Supply) and 20W max (+3V Supply);(3)guaranteed 1  on-resistance match between channels (sin gle +5V supply);(4)guaranteed low off-leakage current is 1nA at +25°C;(5)guaranteed low on-leakage current is 1nA at +25°C;(6)+2V to +5.5V single-supply operation;(7)TTL/CMOS-logic compatible;(8)low crosstalk is less than -96 dB.

The absolute maximum ratings and electrical characteristics (VCC = +4.5V to +5.5V, V_H = 2.4V, V_L = 0.8V, TA = TM IN to TMAX)of the MAX4618CSE+ can be summarized as:(1):voltages referenced to GND,VCC, A, B, C, or enable is -0.3V to +6V;(2):voltage into any analog terminal is -0.3V to (VCC + 0.3V);(3):continuous current into any terminal is ±75mA;(4):Peak Current, X_, Y_, Z_(pulsed at 1ms, 10% duty cycle) is ±200mA; (5):narrow SO (derate 8.70mW/°C abo ve +70°C) is 696mW;(6):storage temperature ranges  from -65°C to +150°C;(7):lead temperature (soldering, 10sec) is +300°C. Electrical characteris tics:(1):switch on-resistance flatness is 1 max(VCC = 4.5V; IX, IY, IZ = 10m A;VX, VY, VZ =1V, 2V, 3V);(2):switch on-resistance match between channels is 0.2 typ and 1 max when TA is +25(VCC = 4.5V; IX, IY, IZ = 10mA;VX, VY, VZ = 3V;(3):input voltage low is 0.8V max;(4):input current high is -1 uA min, 0.0003 uA typ and 1 uA max(VA, VB, VC = VENABLE = VCC).
