MAX6190AESA+ suppliers, MAX6190AESA+ price trend, MAX6190AESA+ PDF download, circuit diagram from SeekIC

Purchase MAX6190AESA+, In-stock MAX6190AESA+ From SeekIC.

MFG:Maxim Integrated Products Category:Integrated Circuits (ICs)

Five Points

Category: Integrated Circuits (ICs)

MFG: Maxim Integrated Products

Descriptions: IC REF VOLT LDO 8-SOIC

Price Break

1
25
50
100

Unit Price

5.75000
4.34000
3.89000
2.78000

Extended Price

5.75
108.50
194.50
278.00

(All prices are in USD) Prices for reference only

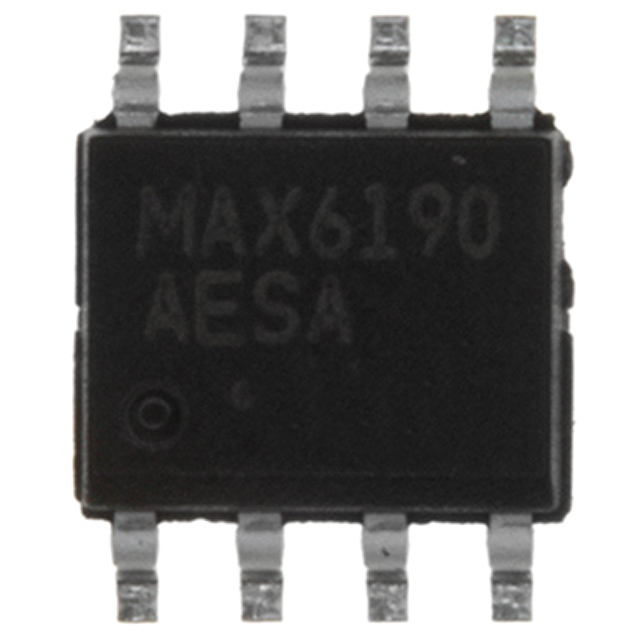

IC REF VOLT LDO 8-SOIC

Technical/Catalog Information	MAX6190AESA+
Vendor	Maxim Integrated Products
Category	Integrated Circuits (ICs)
Reference Type	Series
Voltage - Output	1.25V
Tolerance	±2mV
Temperature Coefficient	5ppm/°C
Voltage - Input	2.5 ~ 12.6 V
Number of Channels	1
Current - Cathode	-
Current - Quiescent	35A
Current - Output	500A
Operating Temperature	-40°C ~ 85°C
Package / Case	8-SOIC (3.9mm Width)
Packaging	Tube
Drawing Number	175; 21-0041; SA; 8
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	MAX6190AESA+ MAX6190AESA+

MAX002
PDF/DataSheet Download

MAX6190AESA
The MAX6190AESA precision, micro-power, low-dropout voltage references offer high initial accuracy and very low temperature coefficient through a proprietary curvature correction circuit and laser-trimmed precision thin-film resistors. The MAX6190AESAbandgap...
MAX6190
The MAX6190MAX6195/MAX6198 precision, micropower, low-dropout voltage references offer high initial accuracy and very low temperature coefficient through a proprietary curvature-correction circuit and lasertrimmed precision thin-film resistors.The MAX6190ban...
MAX619
The MAX619 step-up charge-pump DC-DC converter delivers a regulated 5V ±4% output at 50mA over temperature. The input voltage range is 2V to 3.6V (two battery cells).The complete MAX619 circuit fits into less than 0.1in2 of board space because it requires on...
MAX618EVKIT
The features of MAX618EVKIT can be summarized as:(1)+3v to vout input voltage range;(2)12v or adjustable output voltage;(3)up to 500ma output current;(4)internal 2a, 28v mosfet switch;(5)250kHz switching frequency;(6)250khz switching frequency;(7)surface-mou...
MAX618EEE+T
IC DC-DC CONV PWM 16-QSOP
MAX618EEE+
The MAX618EEE+ is designed as one kind of 28V, PWM, step-up DC-DC converter that can be used in palmtop computers, LCD displays, industrial +24V and +28V systems and automotive-powered DC-DC converters. Also thisMAX618EEE+ is available in a thermally enhance...
