MFG:NJR Category:RF and RFID
Category: RF and RFID
MFG: NJR
Descriptions: IC MMIC AMP MED POWER 14-SSOP
2000
4.28000
8560.00

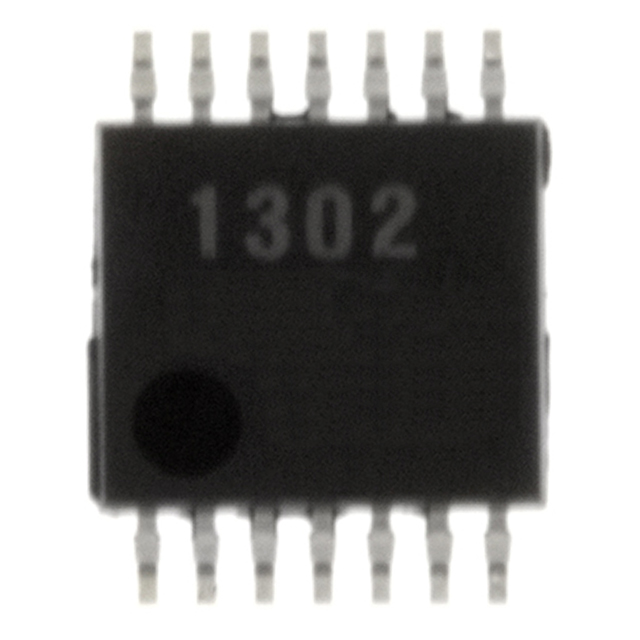

| Technical/Catalog Information | NJG1302V-TE1# |
| Vendor | NJR |
| Category | RF and RFID |
| Package / Case | 14-SSOP |
| Voltage - Supply | 2.9V ~ 5V |
| Current - Supply | 195mA ~ 205mA |
| Gain | 29dB ~ 35dB |
| Frequency | 1.89GHz ~ 1.92GHz |
| RF Type | PHS, WLL |
| Packaging | Tape & Reel (TR) |
| Noise Figure | - |
| P1db | 22dBm ~ 23dBm |
| Test Frequency | 1.9GHz |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | NJG1302V TE1# NJG1302VTE1# |
NJG1101F
PDF/DataSheet Download
IC MMIC AMP MED POWER 14-SSOP
NJG1302V is a GaAs MMIC designed mainly for the final stage power amplifier of Japanese PHS handset, but suitable digital wireless phone and wireless LAN.This amplifier NJG1302Vhas wide variable gain capability of 20dB dynamic range.NJG1302V has input and ou...
The NJG1302 is designed as GaAs MMIC mainly for driver amplifier of PHS base station in Japan. This is a variable gain type with 20dB dynamic range. NJG1302 has input and output matching circuits internally and it features low voltage and high efficiency ope...
NJG1301V is a medium power amplifier which is designed for use of output stage of Japanese PHS and digital wireless phone.NJG1301V features low operating voltage, high efficiency, and comes with, internal input and output matching circuit and very small SSOP...
The NJG1301 is designed as GaAs MMIC mainly for driver amplifier of PHS base station in Japan. It has input and output matching circuits internally, and NJG1301 features low voltage and high efficiency operation. 21dBm output power is easily available with v...
The NJG1110PB1 is a dual band low noise amplifier (2 input 2 output) GaAs MMIC for 800MHz and 1500MHz band. The band switching between 800MHz and 1500MHz is established by one bit control signal by using built-in inverter circuit.An ultra small & thin FF...
