MFG:NJR Category:RF and RFID
Category: RF and RFID
MFG: NJR

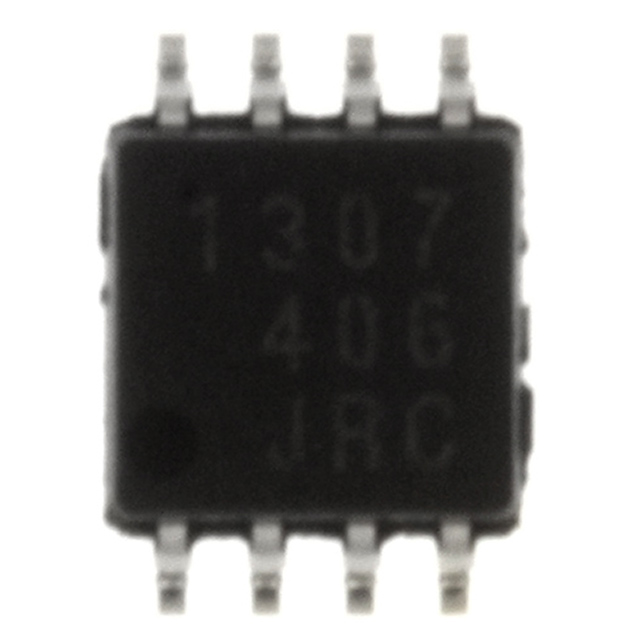

Descriptions: IC MMIC DRIVER AMPLIFIER 8-VSP
2000
2.00000
4000.00
| Technical/Catalog Information | NJG1307R-TE1# |
| Vendor | NJR |
| Category | RF and RFID |
| Package / Case | 8-VSP |
| Voltage - Supply | 2.7V ~ 5V |
| Current - Supply | 25mA ~ 35mA |
| Gain | 29dB ~ 33dB |
| Frequency | 800MHz, 1.5GHz, 1.9GHz |
| RF Type | Cellular |
| Packaging | Tape & Reel (TR) |
| Noise Figure | - |
| P1db | 10dBm |
| Test Frequency | 1.5GHz |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | NJG1307R TE1# NJG1307RTE1# |
NJG1101F
PDF/DataSheet Download
IC MMIC DRIVER AMPLIFIER 8-VSP
NJG1307R is a GaAs MMIC designed mainly for driver amplifier of Cellular Phone.This is an amplifier which has high gain of 33dB and variable gain with 40dB dynamic range. NJG1307R features stable VSWR and low current operation.
NJG1304E is a GaAs MMIC designed mainly for driver amplifier of PHS base station in Japan.This is a variable gain type with 20dB dynamic range. NJG1304E features very low distortion and Pacp is less than 70dBc. at 17dBm output power ,and enable low voltage a...
The NJG1303E is designed as GaAs MMIC mainly for driver amplifier of PHS base station in Japan. NJG1303E features very low distortion and Pacp id less than -70dBc at 17dBm output power. It has input and output matching circuits internally. It enables low vol...
