0452003.MR, 0452003.MRL, 0452004.M

0452003.MR, 0452003.MRL, 0452004.M Selling Leads, Datasheet

MFG:Littelfuse Inc  Category:Circuit Protection  Package Cooled:1808-3A  D/C:05+

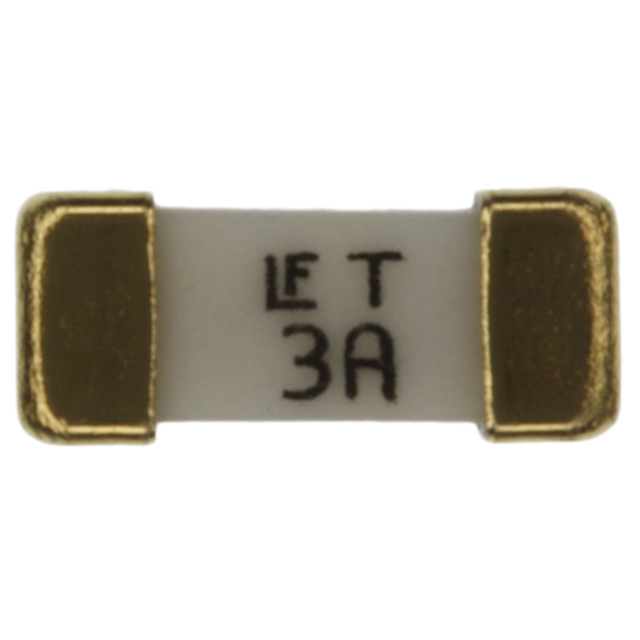

0452003.MRL Picture

0452003.MR, 0452003.MRL, 0452004.M Datasheet download

Five Points

Part Number: 0452003.MRL

Category: Circuit Protection

MFG: Littelfuse Inc

Package Cooled: 1808-3A

D/C: 05+

Description: FUSE 3A SLO BLO NANO 2 SMD






Urgent Purchase
Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.


Top Sellers:

TOP

0452003.MR Suppliers

More 0452003.MR Suppliers

Select All

  • 0451.250MRL

  • Vendor: Littelfuse D/C: 07+& Qty: 5000 Note: original stk  Adddate: 2024-03-28
  • Inquire Now
  • Skyeast Intl. Ltd.   China
    Contact: Mr.RichardLiu
    Tel: 86--755-83276226
    Fax: 86--755--83215205
    (0)
  • 0451002.MRL

  • Vendor: Littelfuse Note: {RH}SMD FUSE 6.10X2.59MM2A 125V 2410  Adddate: 2024-03-28
  • Inquire Now
  • NEW ELITE ELECTRONICS CO LTD   China
    Contact: Ms.YolandaHU
    Tel: 086-0755-83279898 ext.1087
    Fax: 086-0755-83279502
    (0)
  • 0451002.MRL

  • Vendor: Littelfuse D/C: 10+& Qty: 5000 Note: new and original stock  Adddate: 2024-03-28
  • Inquire Now
  • Array Microelectronics Co.   China
    Contact: Ms.WangFang   MSN:wangfang-12@hotmail.com
    Tel: 086-021-64016606-8022
    Fax: 086-021-64016601
    (35)
  • 0451003.MR

  • Vendor: Littelfuse D/C: 09+& Qty: 63000 Note: , 13510233700 QQ 770321001  Adddate: 2024-03-28
  • Inquire Now
  •   China
    Contact: Mr.
    Tel: 86-0755-13510233700
    Fax:
    (8)
  • 0452 005.MRL

  • Qty: 922 Note: Fuse 5A/125V Slow Blow c  Adddate: 2024-03-28
  • Inquire Now
  • LEAD-TIMES   Israel
    Contact: Mr.eshel   MSN:eshelmali@hotmail.com
    Tel: 972-8-8699223
    Fax: 972-8-8699225
    (5)

About 0453.160

PDF/DataSheet Download

Datasheet: 0453.160

File Size: 104850 KB

Manufacturer: LITTELFUSE [Littelfuse]

Download : Click here to Download

Related PDF Download

Related Part Number

0452003.MRL Suppliers

More 0452003.MRL Suppliers

Select All

  • 0451.250MRL

  • Vendor: Littelfuse D/C: 07+& Qty: 5000 Note: original stk  Adddate: 2024-03-28
  • Inquire Now
  • Skyeast Intl. Ltd.   China
    Contact: Mr.RichardLiu
    Tel: 86--755-83276226
    Fax: 86--755--83215205
    (0)
  • 0451002.MRL

  • Vendor: Littelfuse Note: {RH}SMD FUSE 6.10X2.59MM2A 125V 2410  Adddate: 2024-03-28
  • Inquire Now
  • NEW ELITE ELECTRONICS CO LTD   China
    Contact: Ms.YolandaHU
    Tel: 086-0755-83279898 ext.1087
    Fax: 086-0755-83279502
    (0)
  • 0451002.MRL

  • Vendor: Littelfuse D/C: 10+& Qty: 5000 Note: new and original stock  Adddate: 2024-03-28
  • Inquire Now
  • Array Microelectronics Co.   China
    Contact: Ms.WangFang   MSN:wangfang-12@hotmail.com
    Tel: 086-021-64016606-8022
    Fax: 086-021-64016601
    (35)
  • 0451003.MR

  • Vendor: Littelfuse D/C: 09+& Qty: 63000 Note: , 13510233700 QQ 770321001  Adddate: 2024-03-28
  • Inquire Now
  •   China
    Contact: Mr.
    Tel: 86-0755-13510233700
    Fax:
    (8)
  • 0452 005.MRL

  • Qty: 922 Note: Fuse 5A/125V Slow Blow c  Adddate: 2024-03-28
  • Inquire Now
  • LEAD-TIMES   Israel
    Contact: Mr.eshel   MSN:eshelmali@hotmail.com
    Tel: 972-8-8699223
    Fax: 972-8-8699225
    (5)

About 0453.160

PDF/DataSheet Download

Datasheet: 0453.160

File Size: 104850 KB

Manufacturer: LITTELFUSE [Littelfuse]

Download : Click here to Download

Related PDF Download

Related Part Number

0452004.M Suppliers

More 0452004.M Suppliers

Select All

  • 0452004.MRL

  • Vendor: Littelfuse Note: FUSE 4A SMT 125V SLO-BLO  Adddate: 2024-03-28
  • Inquire Now
  • NEW ELITE ELECTRONICS CO LTD   China
    Contact: Ms.YolandaHU
    Tel: 086-0755-83279898 ext.1087
    Fax: 086-0755-83279502
    (0)
  • 0451.250MRL

  • Vendor: Littelfuse D/C: 07+& Qty: 5000 Note: original stk  Adddate: 2024-03-28
  • Inquire Now
  • Skyeast Intl. Ltd.   China
    Contact: Mr.RichardLiu
    Tel: 86--755-83276226
    Fax: 86--755--83215205
    (0)
  • 0451002.MRL

  • Vendor: Littelfuse Note: {RH}SMD FUSE 6.10X2.59MM2A 125V 2410  Adddate: 2024-03-28
  • Inquire Now
  • NEW ELITE ELECTRONICS CO LTD   China
    Contact: Ms.YolandaHU
    Tel: 086-0755-83279898 ext.1087
    Fax: 086-0755-83279502
    (0)
  • 0451002.MRL

  • Vendor: Littelfuse D/C: 10+& Qty: 5000 Note: new and original stock  Adddate: 2024-03-28
  • Inquire Now
  • Array Microelectronics Co.   China
    Contact: Ms.WangFang   MSN:wangfang-12@hotmail.com
    Tel: 086-021-64016606-8022
    Fax: 086-021-64016601
    (35)
  • 0451003.MR

  • Vendor: Littelfuse D/C: 09+& Qty: 63000 Note: , 13510233700 QQ 770321001  Adddate: 2024-03-28
  • Inquire Now
  •   China
    Contact: Mr.
    Tel: 86-0755-13510233700
    Fax:
    (8)

About 0453.160

PDF/DataSheet Download

Datasheet: 0453.160

File Size: 104850 KB

Manufacturer: LITTELFUSE [Littelfuse]

Download : Click here to Download

Related PDF Download

Related Part Number

0452003.MR Parameters

Technical/Catalog Information0452003.MR
VendorLittelfuse Inc (VA)
CategoryCircuit Protection
Current 3A
Voltage - Rated 125V
Package / Case0.240" L x 0.106" W x 0.106" H (6.1mm x 2.69mm x 2.69mm)
Fuse TypeSlow Blow, Long Time Lag
Mounting TypeHolder/Surface Mount
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names 0452003 MR
0452003MR
F1347CT ND
F1347CTND
F1347CT

0452003.MR General Description

The 0452003.MR is one member of the 452 series which is designed as surface mount fuses. It has enhanced inrush withstand characteristics over the NANO2 fast-acting fuse. The unique time delay feature of this fuse design helps solve the problem of nuisance "opening" by accommodating inrush currents that normally cause a fast-acting fuse to open. Typical applications include notebook pc, LCD/PDP TV, LCD monitor, LCD/PDP panel, LCD backlight inverter, portable DVD player, power supply, networking, PC server, cooling fan system, storage system, telecom system, wireless basestation, white goods, game console, office automation equipment, battery charging circuit protection, industrial equipment, medical equipment and automative. Its quantity would be 1000 pcs and its package would be tape and reel.

This series have seven features. (1) Time-lag (slo-blo). (2) It would have small size. (3) It would be available for wide range of current rating (375mA to 5A). (4) It would have wide operating temperature range. (5) It would have low temperature de-rating. (6) It would be RoHS compliant. (7) It would be halogen free. That are all the main features.

Some electrical characteristics about it. (1) Its ampere rating would be 3.00A. (2) Its max voltage rating would be 125V. (3) Its interrupting rating would be 50A at 125 VAC/VDC and it would be 300A at 32VDC. (4) Its nominal cold resistance would be 0.0340 ohms. (5) Its nominal melting I2t would be 20.16 A2sec.

Also some some soldering parameters about it. (1) Its reflow condition would be Pb-free assembly. (2) Its pre heat would be min 150°C and max 200°C and time from min to max is 60 to 120secs. (3) Its average ramp up rate to peak would be 5°C / second max. (4) Its Ts(max) to Tl ramp-up rate would be 5°C/second max. (5) Its peak temperature would be 250°C. (6) Its time within 5°C of actual peak temperature would be from 20 to 40 seconds. (7) Its ramp-down rate would be 5°C/ second max. (8) Its time 25°C to peak temperature would be 8 minutes max. And so on. If you have any question or suggestion or want to know more information please contact us for details. Thank you!

0452003.MRL Parameters

Technical/Catalog Information0452003.MRL
VendorLittelfuse Inc
CategoryCircuit Protection
Current 3A
Voltage - Rated 125V
Package / Case0.240" L x 0.106" W x 0.106" H (6.1mm x 2.69mm x 2.69mm)
Fuse TypeSlow Blow, Long Time Lag
Mounting TypeHolder/Surface Mount
Drawing Number*
Lead Free StatusLead Free Compliant by Exemption
RoHS StatusRoHS Compliant
Other Names 0452003 MRL
0452003MRL
F2604TR ND
F2604TRND
F2604TR
