252PMLF, 2530, 25300

Table of contents:
Info of 252PMLF
Info of 2530
Info of 25300

252PMLF, 2530, 25300 Selling Leads, Datasheet

MFG:B&K Precision Category:Test Equipment Package Cooled:DIP-6 D/C:N/A

252PMLF, 2530, 25300 Datasheet download

Five Points

Part Number: 2530

Category: Test Equipment

MFG: B&K Precision

Package Cooled: DIP-6

D/C: N/A

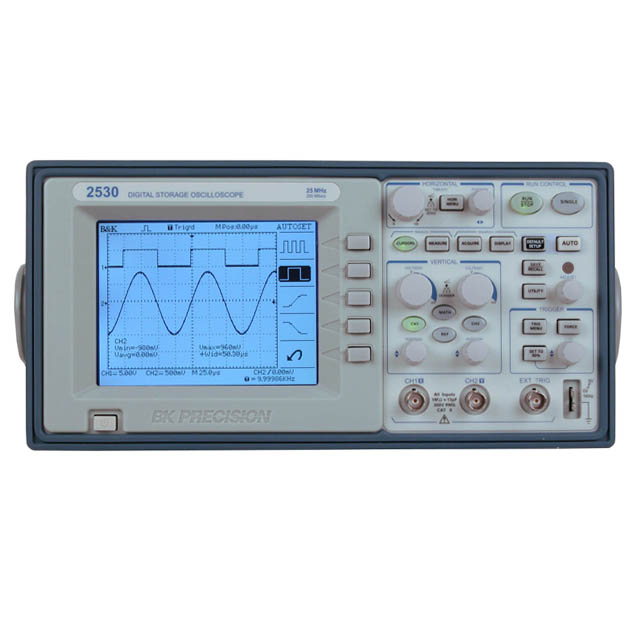

Description: OSCOPE 25MHZ DIGITAL STORAGE

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

252PMLF General Description

FIELD PROGRAMMABLE DUAL O
The ICS252 is a low cost, dual-output, field programmable clock synthesizer. The ICS252 can generate two output frequencies from 314 kHz to 200 MHz using up to two independently configurable PLLs. The outputs may employ Spread Spectrum techniques to reduce system electro-magnetic interference (EMI).

Using IDT's VersaClock? software to configure the PLL and output, the ICS252 contains a One-Time Programmable (OTP) ROM to allow field programmability. Programming features include 4 selectable configuration registers.

The device employs Phase-Locked Loop (PLL) techniques to run from a standard fundamental mode, inexpensive crystal, or clock. It can replace multiple crystals and oscillators, saving board space and cost. The device also has a power-down feature that tri-states the clock outputs and turns off the PLLs when the PDTS pin is taken low.

The ICS252 is also available in factory programmed custom versions for high-volume applications.

8-pin SOIC package

Two addressable registers

Input crystal frequency of 5 to 27 MHz

Clock input frequency of 3 to 150 MHz

Output clock frequencies up to 200 MHz

Configurable Spread Spectrum Modulation

Operating voltage of 3.3 V

Replaces multiple crystals and oscillators

Controllable output drive levels

Advanced, low-power CMOS process

Available in RoHS 5 (green) or RoHS 6 (green and lead free) compliant package

click here for VersaClock Software page

252PMLF Maximum Ratings

Temperature C Voltage 3.3 V Package SOIC 8 Speed NA Spread Spectrum Yes VCXO No Output Style SE Input Style Crystal/LVTTL Max. Output Frequency 200 MHz Min. Output Frequency 0.314 MHz Max. Input Frequency 150 MHz Min. Input Frequency 3 MHz Temp. Grade C Core Supply Voltage (VDD) 3.3V Output Supply Voltage (VDDO) 3.3V No. of Outputs 2 No. of Inputs

2530 Parameters

Technical/Catalog Information	2530
Vendor	B&K Precision
Category	Test Equipment
Bandwidth	25MHz
Channels	Dual
Display Type	LCD - Monochrome
Features	Memory, USB Port
Includes	Software, USB Cable
Input Impedance	1M - 13pF
Voltage - Input, Max	300Vrms
Rise Time (Typ)	14nS
Probe Type	10:1 Probe Set (2 pieces)
Sampling Rate (Per Second)	250 MSa/s
Type	Bench, Digital
Voltage - Supply	100 ~ 240VAC
Lead Free Status	Request Inventory Verification
RoHS Status	Request Inventory Verification
Other Names	2530 2530 BK2530 ND BK2530ND BK2530
