MFG:Panasonic - SSG Category:Discrete Semiconductor Products Package Cooled:TO3P D/C:06+

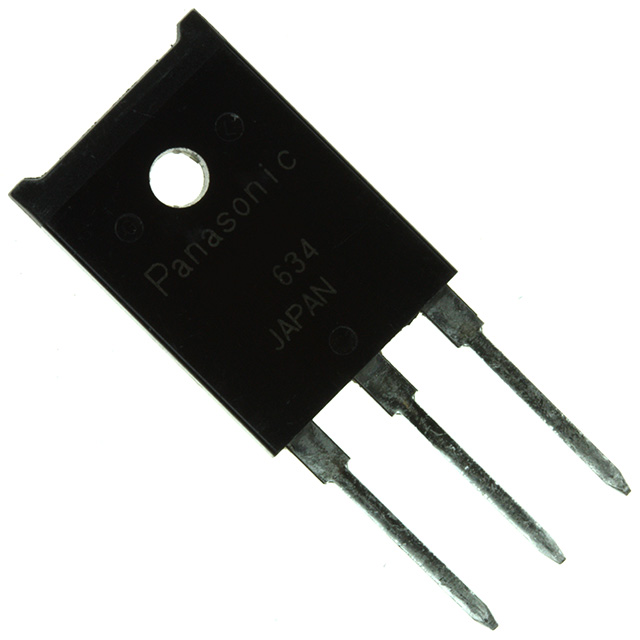

2SC4420, 2SC4421, 2SC4422 Datasheet download
Category: Discrete Semiconductor Products
MFG: Panasonic - SSG
Package Cooled: TO3P
D/C: 06+
Description: TRANS NPN 800VCEO 3A TOP-3F
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: 2SC4420
File Size: 70969 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: 2SC0829
File Size: 114565 KB
Manufacturer: PANASONIC [Panasonic Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: 2SC4422
File Size: 52953 KB
Manufacturer: hitachi
Download : Click here to Download
| Technical/Catalog Information | 2SC4420 |
| Vendor | Panasonic - SSG |
| Category | Discrete Semiconductor Products |
| Transistor Type | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 800V |
| Current - Collector (Ic) (Max) | 3A |
| Power - Max | 70W |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 8 @ 100mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 1.5V @ 160mA, 800mA |
| Frequency - Transition | 10MHz |
| Current - Collector Cutoff (Max) | - |
| Mounting Type | Through Hole |
| Package / Case | TOP-3F |
| Packaging | Bulk |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | 2SC4420 2SC4420 |
The 2SC4420 is a kind of silicon NPN triple diffusion planar type. It is used for high breakdown voltage high-speed switching. It has the following features: (1) high-speed switching; (2) high collector to base voltage; (3) wide area of safe operation; (4) satisfactory linearity of forward current transfer ratio; (5) full-pack package which can be installed to the heat sink with one screw.
What comes next is its absolute maximum ratings at TC is 25 . (1): collector to base voltage (VCBO) is 900 V, collector to emitter voltage (VCEO) is 800 V and emitter to base voltage (VEBO) is 7 V; (2): peak collector current (ICP) is 5 A; (3): collector current (IC) is 3 A; (4): collector power dissipation (PC) is 70 W at TC is 25 and is 3 W at TA is 25 ; (5): junction temperature (Tj) is 150 ; (6): storage temperature (Tstg) is from -55 to 150 . Then is about the electrical characteristics at TC is 25 . (1): the maximum collector cutoff current (ICBO) is 50 A when VCB is 900 V and IE is 0; (2): the maximum base to emitter saturation voltage is 1.5 V at IC is 0.8 A and IB is 0.16 A; (3): the typical transition frequency is 10 MHz at VCE is 5 V, IC is 0.15 A and f is 1 MHz; (4): the typical turn-on time is 0.7 s, storage tome is 2.5 s and fall time is 0.3 s at IC is 0.8 A and VCC is 250 V.
|
Parameter |
Symbol |
Rating |
Unit | |
| Collector to base voltage |
VCBO |
900 |
V | |
| Collector to emitter voltage |
VCES VCEO |
900 800 |
V | |
| Emitter to base voltage |
VEBO |
7 |
V | |
| Peak collector current |
ICP |
5 |
A | |
| Collector current |
IC |
3 |
A | |
| Base current |
IB |
1 |
A | |
| Collector power dissipation | TC=25°C Ta=25°C |
PC |
70 3 |
W |
| Junction temperature |
Tj |
150 |
||
| Storage temperature |
Tstg |
−55 to +150 |
||
| Item | Symbol | Ratings | Unit |
| Collector to base voltage | VCBO | 15 | V |
| Collector to emitter voltage | VCEO | 11 | V |
| Emitter to base voltage | VEBO | 2 | V |
| Collector current | IC | 50 | mA |
| Collector power dissipation | PC | 400 | mW |
| Junction temperature | Tj | 150 | °C |
| Storage temperature | Tstg | 55 to +150 | °C |
