501MLF, 501R18W103KV4E, 501SL

Table of contents:
Info of 501MLF
Info of 501R18W103KV4E
Info of 501SL

501MLF, 501R18W103KV4E, 501SL Selling Leads, Datasheet

MFG:Johanson Dielectrics Inc (VA) Category:Capacitors Package Cooled:SOP-3.9-8P D/C:05+

501MLF, 501R18W103KV4E, 501SL Datasheet download

Five Points

Part Number: 501R18W103KV4E

Category: Capacitors

MFG: Johanson Dielectrics Inc (VA)

Package Cooled: SOP-3.9-8P

D/C: 05+

Description: CAP CER 10000PF 500V X7R 1206

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

501MLF General Description

LOCO PLL CLOCK MULTIPLIER
The ICS 501 is the most cost effective way to generate a high quality, high frequency clock output from a lower frequency crystal or clock input, and is designed to replace crystal oscillators in most electronic systems. Using Phase-Locked- Loop (PLL) techniques, the device uses a standard fundamental mode, inexpensive crystal to produce output clocks up to 160 MHz.

Stored in the chip's ROM is the ability to generate 9 different multiplication factors, allowing one chip to output many common frequencies.

The device also has an Output Enable pin that tri-states the clock output when the OE pin is taken low.

Packaged as 8 pin SOIC or die

Available in Pb (lead) free package

ICS's lowest cost PLL clock

Zero ppm multiplication error

Input crystal frequency of 5 - 27 MHz

Input clock frequency of 2 - 50 MHz

Output clock frequencies up to 160 MHz

Extremely low jitter - 25 ps one sigma

Compatible with all popular CPUs

Duty cycle of 45/55 up to 160 MHz

Nine selectable frequencies

Operating voltages of 3.3 V or 5.0 V

Tri-state output for board level testing

25mA drive capability at TTL levels

Ideal for oscillator replacement

Industrial temperature available

Advanced, low-power CMOS process

Not recommended for new designs. Use the IDT5V40501 for all new designs.

501MLF Maximum Ratings

Input Frequency 2 MHz to 50 MHz No. of Inputs 1 Temperature C Output Frequency 4 MHz to 160 MHz Input Type Clock,Crystal No. of Outputs 1 Output Type CMOS Voltage 3.3 V Package SOIC 8 Speed NA Core Supply Voltage (VDD) 3.3 V to 5 V Output Supply Voltage (VDDO) 3.3 V to 5 V Peak-to-Peak Period Jitter ± 70 ps Pk-to-Pk

501R18W103KV4E Parameters

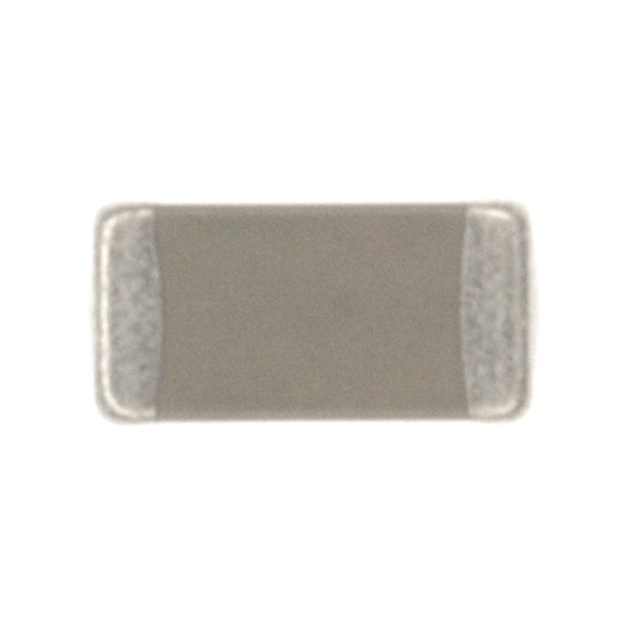

Technical/Catalog Information	501R18W103KV4E
Vendor	Johanson Dielectrics Inc (VA)
Category	Capacitors
Capacitance	10000pF
Voltage - Rated	500V
Tolerance	±10%
Package / Case	1206 (3216 metric)
Temperature Coefficient	X7R
Packaging	Digi-Reel?
Features	High Voltage
Lead Spacing	-
Operating Temperature	-55°C ~ 125°C
Mounting Type	Surface Mount, MLCC
Drawing Number	*
Lead Free Status	Lead Free Compliant by Exemption
RoHS Status	RoHS Compliant
Other Names	501R18W103KV4E 501R18W103KV4E 709 1027 6 ND 70910276ND 709-1027-6
