74ACT541SC, 74ACT541SC_NL, 74ACT541SCX

Table of contents:
Info of 74ACT541SC
Info of 74ACT541SC_NL
Info of 74ACT541SCX

74ACT541SC, 74ACT541SC_NL, 74ACT541SCX Selling Leads, Datasheet

MFG:Fairchild Semiconductor Category:Integrated Circuits (ICs) Package Cooled:N/A D/C:09+

74ACT541SC, 74ACT541SC_NL, 74ACT541SCX Datasheet download

Five Points

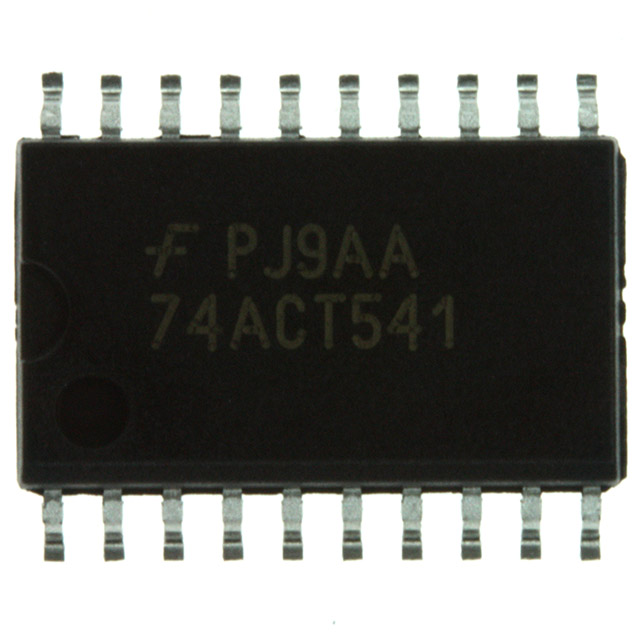

Part Number: 74ACT541SC

Category: Integrated Circuits (ICs)

MFG: Fairchild Semiconductor

Package Cooled: N/A

D/C: 09+

Description: IC BUFF DVR TRI-ST OCTAL 20SOIC

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

74ACT541SC Parameters

Technical/Catalog Information	74ACT541SC
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Logic Type	Line Driver, Non-Inverting
Package / Case	20-SOIC
Packaging	Tube
Mounting Type	Surface Mount
Number of Bits per Element	8
Number of Elements	1 - Single
Operating Temperature	-40°C ~ 85°C
Voltage - Supply	4.5 V ~ 5.5 V
Current - Output High, Low	24mA, 24mA
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	74ACT541SC 74ACT541SC

74ACT541SC General Description

The 74AC541 and 74ACT541 are octal buffer/line drivers designed to be employed as memory and address drivers, clock drivers and bus oriented transmitter/receivers.

These devices are similar in function to the 74AC244 and 74ACTC244 while providing flow-through architecture (inputs on opposite side from outputs). This pinout arrangement makes these devices especially useful as an output port for microprocessors, allowing ease of layout and greater PC board density.

74ACT541SC Maximum Ratings

Supply Voltage (V_CC).................. −0.5V to +7.0V
DC Input Diode Current (I_IK)
    V_I = −0.5V ......................................... −20 mA
    V_I = VCC + 0.5V................................. +20 mA
DC Input Voltage (V_I) .........−0.5V to V_CC + 0.5V
DC Output Diode Current (I_OK)
    V_O = −0.5V........................................ −20 mA
    V_O = V_CC + 0.5V +20 mA
DC Output Voltage (V_O) ......−0.5V to V_CC + 0.5V
DC Output Source
    or Sink Current (I_O)............................ ±50 mA
DC V_CC or Ground Current
    per Output Pin (I_CC or I_GND)............... ±50 mA
Storage Temperature (T_STG)... −65°C to +150°C
Junction Temperature (T_J)
    PDIP ......................................................140°C

74ACT541SC Features

I_CC and I_OZ reduced by 50%
3-STATE outputs
Inputs and outputs opposite side of package, allowing
easier interface to microprocessors
Output source/sink 24 mA
74AC541 is a non-inverting option of the 74AC540
74ACT541 has TTL-compatible inputs

74ACT541SC Connection Diagram

74ACT541SCX Parameters

Technical/Catalog Information	74ACT541SCX
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Logic Type	Line Driver, Non-Inverting
Package / Case	20-SOIC
Packaging	Tape & Reel (TR)
Mounting Type	Surface Mount
Number of Bits per Element	8
Number of Elements	1 - Single
Operating Temperature	-40°C ~ 85°C
Voltage - Supply	4.5 V ~ 5.5 V
Current - Output High, Low	24mA, 24mA
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	74ACT541SCX 74ACT541SCX
