ACS30257, ACS3025T, ACS302-5T3

MFG:STMicroelectronics Category:Discrete Semiconductor Products Package Cooled:SOP-20 D/C:04+

Part Number: ACS302-5T3

Category: Discrete Semiconductor Products

MFG: STMicroelectronics

Package Cooled: SOP-20

D/C: 04+

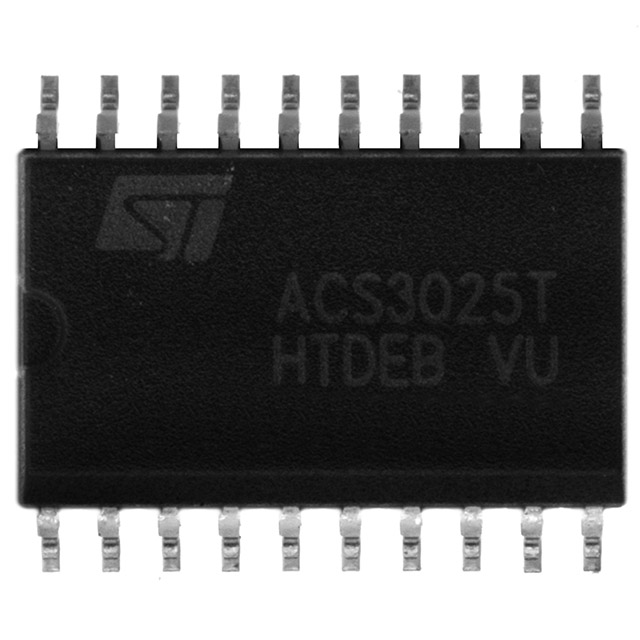

Description: IC AC SWITCH ARRAY 3LINE 20-SOIC
