ADE5169ASTZF62, ADE5169ASTZF62-RL, ADE5566ASTZF62

Table of contents:
Info of ADE5169ASTZF62
Info of ADE5169ASTZF62-RL
Info of ADE5566ASTZF62

ADE5169ASTZF62, ADE5169ASTZF62-RL, ADE5566ASTZF62 Selling Leads, Datasheet

MFG:Analog Devices Inc Category:Integrated Circuits (ICs) D/C:912

ADE5169ASTZF62, ADE5169ASTZF62-RL, ADE5566ASTZF62 Datasheet download

Five Points

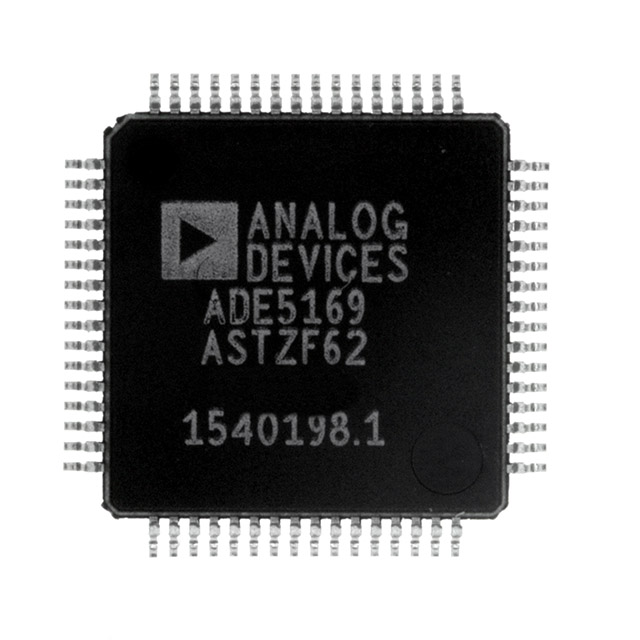

Part Number: ADE5169ASTZF62

Category: Integrated Circuits (ICs)

MFG: Analog Devices Inc

Package Cooled:

D/C: 912

Description: IC ENERGY MEASUREMENT 1PH 64LQFP

Price Break

1
25
100
250
500

Unit Price

8.60000
6.88000
5.80500
5.59000
5.46100

Extended Price

8.60
172.00
580.50
1397.50
2730.50

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

ADE5169ASTZF62 Parameters

Technical/Catalog Information	ADE5169ASTZF62
Vendor	Analog Devices Inc
Category	Integrated Circuits (ICs)
Package / Case	64-LQFP
Packaging	Tray
Applications	Energy Measurement
Controller Series	ADE51xx
Core Processor	8052
Program Memory Type	FLASH (62kB)
RAM Size	2.25K x 8
Number of I /O	20
Interface	I²C, SPI, UART
Voltage - Supply	3.135 V ~ 3.465 V
Operating Temperature	-40°C ~ 85°C
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ADE5169ASTZF62 ADE5169ASTZF62

ADE5169ASTZF62-RL Parameters

Technical/Catalog Information	ADE5169ASTZF62-RL
Vendor	Analog Devices Inc
Category	Integrated Circuits (ICs)
Package / Case	64-LQFP
Packaging	Tape & Reel (TR)
Applications	Energy Measurement
Controller Series	ADE51xx
Core Processor	8052
Program Memory Type	FLASH (62kB)
RAM Size	2.25K x 8
Number of I /O	20
Interface	I²C, SPI, UART
Voltage - Supply	3.135 V ~ 3.465 V
Operating Temperature	-40°C ~ 85°C
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ADE5169ASTZF62 RL ADE5169ASTZF62RL

ADE5566ASTZF62 Parameters

Technical/Catalog Information	ADE5566ASTZF62
Vendor	Analog Devices Inc
Category	Integrated Circuits (ICs)
Packaging	Tube
Package / Case	64-LQFP
Voltage - Supply	2.4 V ~ 3.7 V
Current - Supply	-
Input Impedance	770 KOhm
Measurement Error	0.1%
Voltage - I/O High	2V
Voltage - I/O Low	0.8V
Operating Temperature	-40°C ~ 85°C
Meter Type	Single Phase
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ADE5566ASTZF62 ADE5566ASTZF62
