MFG:Analog Devices Inc Category:Integrated Circuits (ICs) Package Cooled:2005+ D/C:577
ADE7754AR, ADE7754ARZ, ADE7755 Datasheet download
Category: Integrated Circuits (ICs)
MFG: Analog Devices Inc
Package Cooled: 2005+
D/C: 577
Description: IC METER ENERGY W/SERIAL 24-SOIC
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: ADE7754AR
File Size: 645928 KB
Manufacturer: AD [Analog Devices]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: ADE-10MH
File Size: 49137 KB
Manufacturer: MINI [Mini-Circuits]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: ADE7755
File Size: 339360 KB
Manufacturer: AD [Analog Devices]
Download : Click here to Download
| Technical/Catalog Information | ADE7754AR |
| Vendor | Analog Devices Inc |
| Category | Integrated Circuits (ICs) |
| Packaging | Tube |
| Package / Case | 24-SOIC (7.5mm Width) |
| Voltage - Supply | 4.75 V ~ 5.25 V |
| Current - Supply | 7mA |
| Input Impedance | 370 KOhm |
| Measurement Error | 0.1% |
| Voltage - I/O High | 2.4V |
| Voltage - I/O Low | 0.8V |
| Operating Temperature | -40°C ~ 85°C |
| Meter Type | 3 Phase |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | ADE7754AR ADE7754AR |

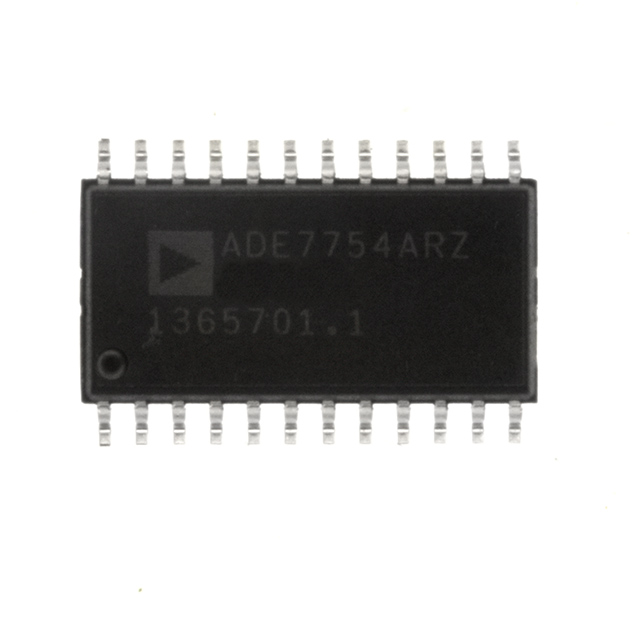

| Technical/Catalog Information | ADE7754ARZ |
| Vendor | Analog Devices Inc |
| Category | Integrated Circuits (ICs) |
| Packaging | Tube |
| Package / Case | 24-SOIC (7.5mm Width) |
| Voltage - Supply | 4.75 V ~ 5.25 V |
| Current - Supply | 7mA |
| Input Impedance | 370 KOhm |
| Measurement Error | 0.1% |
| Voltage - I/O High | 2.4V |
| Voltage - I/O Low | 0.8V |
| Operating Temperature | -40°C ~ 85°C |
| Meter Type | 3 Phase |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | ADE7754ARZ ADE7754ARZ |
| Meter Type | Single Phase |
| Supply Current | 5.5mA |
| Package | 24-Lead PDIP,24-Lead SSOP |
| Active Energy Accuracy | 0.1% over 500:1 @25°C |
| Active Energy Bandwidth | 14kHz |
| Analog input range | +/-62.5mV to +/-1V peak |
| Power Consumption | 15mW Typical |
| Reference Tempco | 30ppm/°C Typical |
