ADL5320ARKZ-R7, ADL5321ARKZ-R7, ADL5322ACPZ-R7

Table of contents:
Info of ADL5320ARKZ-R7
Info of ADL5321ARKZ-R7
Info of ADL5322ACPZ-R7

ADL5320ARKZ-R7, ADL5321ARKZ-R7, ADL5322ACPZ-R7 Selling Leads, Datasheet

MFG:Analog Devices Inc (VA) Category:RF and RFID Package Cooled:CP D/C:912

ADL5320ARKZ-R7, ADL5321ARKZ-R7, ADL5322ACPZ-R7 Datasheet download

Five Points

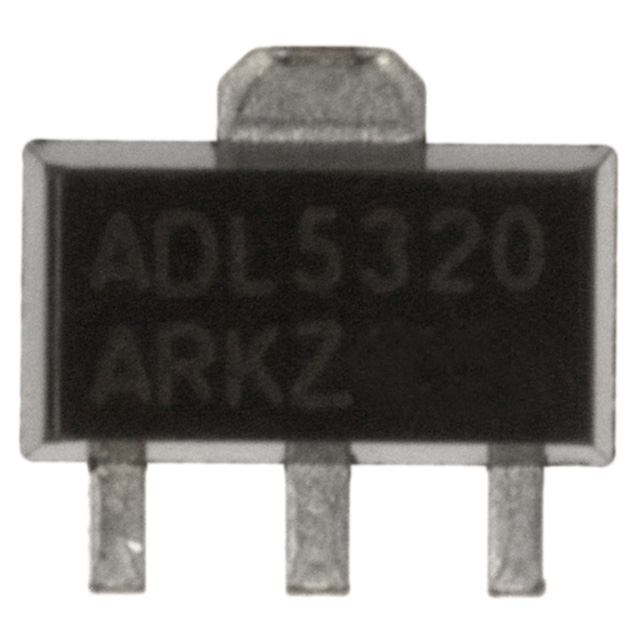

Part Number: ADL5320ARKZ-R7

Category: RF and RFID

MFG: Analog Devices Inc (VA)

Package Cooled: CP

D/C: 912

Description: IC AMP GAIN 700-1000MHZ 8-LFCSP

Price Break

1
25
100
250
500

Unit Price

5.16000
4.12800
3.48300
3.35400
3.27660

Extended Price

5.16
103.20
348.30
838.50
1638.30

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

ADL5320ARKZ-R7 Parameters

Technical/Catalog Information	ADL5320ARKZ-R7
Vendor	Analog Devices Inc (VA)
Category	RF and RFID
Package / Case	SOT 89
Voltage - Supply	4.5V ~ 5.5V
Current - Supply	104mA ~ 124mA
Gain	11.5dB ~ 13.4dB
Frequency	400MHz ~ 2.7GHz
RF Type	-
Packaging	Cut Tape (CT)
Noise Figure	5.1dB
P1db	27.4dBm
Test Frequency	2.6GHz
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ADL5320ARKZ R7 ADL5320ARKZR7 ADL5320ARKZ R7CT ND ADL5320ARKZR7CTND ADL5320ARKZ-R7CT

ADL5321ARKZ-R7 Parameters

Technical/Catalog Information	ADL5321ARKZ-R7
Vendor	Analog Devices Inc (VA)
Category	RF and RFID
Package / Case	SOT-89
Voltage - Supply	4.5V ~ 5.5V
Current - Supply	90mA ~ 100mA
Gain	13.2dB ~ 14.6dB
Frequency	2.3GHz ~ 4GHz
RF Type	Cellular, CDMA, GSM, ISM, PCS, W-CDMA AND WLL
Packaging	Cut Tape (CT)
Noise Figure	4dB
P1db	25.7dBm
Test Frequency	2.6GHz
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ADL5321ARKZ R7 ADL5321ARKZR7 ADL5321ARKZ R7CT ND ADL5321ARKZR7CTND ADL5321ARKZ-R7CT

ADL5322ACPZ-R7 Parameters

Technical/Catalog Information	ADL5322ACPZ-R7
Vendor	Analog Devices Inc (VA)
Category	RF and RFID
Package / Case	8-LFCSP
Voltage - Supply	4.75V ~ 5.25V
Current - Supply	320mA
Gain	19dB ~ 21.4dB
Frequency	700MHz ~ 1GHz
RF Type	Cellular, CDMA2000, W-CDMA, GSM
Packaging	Cut Tape (CT)
Noise Figure	5dB
P1db	27dBm ~ 27.7dBm
Test Frequency	850MHz
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ADL5322ACPZ R7 ADL5322ACPZR7 ADL5322ACPZ R7DKR ND ADL5322ACPZR7DKRND ADL5322ACPZ-R7DKR
