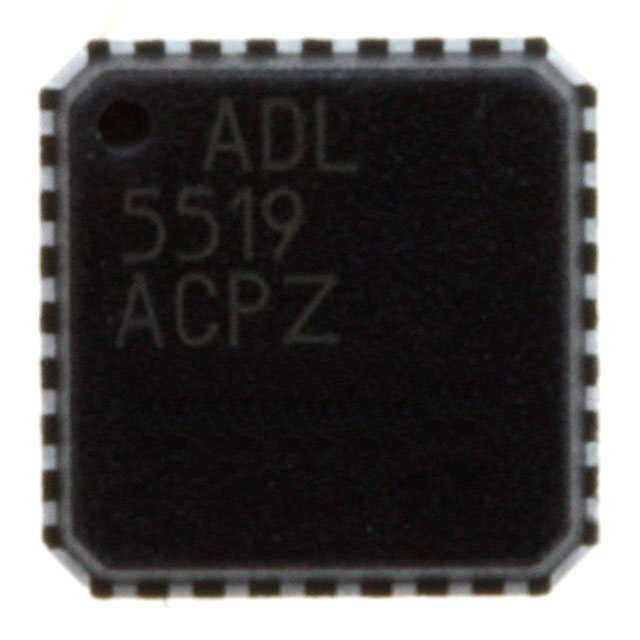

MFG:Analog Devices Inc (VA) Category:RF and RFID Package Cooled:LFCSP D/C:912
ADL5519ACPZ-R7, ADL5521ACPZ, ADL5530 Datasheet download
Category: RF and RFID
MFG: Analog Devices Inc (VA)
Package Cooled: LFCSP
D/C: 912
Description: IC AMP LOG DETECT CTRLR 32LFCSP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: ADL5306
File Size: 496606 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: ADL5306
File Size: 496606 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: ADL5530
File Size: 302093 KB
Manufacturer:
Download : Click here to Download
| Technical/Catalog Information | ADL5519ACPZ-R7 |
| Vendor | Analog Devices Inc (VA) |
| Category | RF and RFID |
| Function | Detector/Controller |
| Secondary Attributes | - |
| Frequency | 1MHz ~ 10GHz |
| RF Type | WiMax, WLAN |
| Package / Case | 32-LFCSP |
| Packaging | Digi-Reel? |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | ADL5519ACPZ R7 ADL5519ACPZR7 ADL5519ACPZ R7DKR ND ADL5519ACPZR7DKRND ADL5519ACPZ-R7DKR |
The ADL5530 is a broadband, fixed-gain, linear amplifier that operates at frequencies up to 1000 MHz. The device can be used in a wide variety of wired and wireless devices, including cellular, broadband, CATV, and LMDS/MMDS applications.
The ADL5530 provides a gain of 16.5 dB, which is stable over frequency, temperature, power supply, and from device to device. It achieves an OIP3 of 37 dBm with an output compression point of 21.8 dB and a noise figure of 3 dB.
This amplifier is single-ended and internally matched to 50 with an input return loss of 11 dB. Only input/output ac-coupling capacitors, a power supply decoupling capacitor, and an external inductor are required for operation.
The ADL5530 operates with supply voltages of 3 V or 5 V with a supply current of 110 mA.
The ADL5530 is fabricated on a GaAs pHEMPT process. The device is packaged in a 3 mm * 2 mm LFCSP that uses an exposed paddle for excellent thermal impedance. It operates from −40°C to +85°C. A fully populated evaluation board is also available.
