ADM693ANZ, ADM693ARZ-REEL, ADM694

Table of contents:
Info of ADM693ANZ
Info of ADM693ARZ-REEL
Info of ADM694

ADM693ANZ, ADM693ARZ-REEL, ADM694 Selling Leads, Datasheet

MFG:Analog Devices Inc Category:Integrated Circuits (ICs) Package Cooled:N D/C:2010+

ADM693ANZ, ADM693ARZ-REEL, ADM694 Datasheet download

Five Points

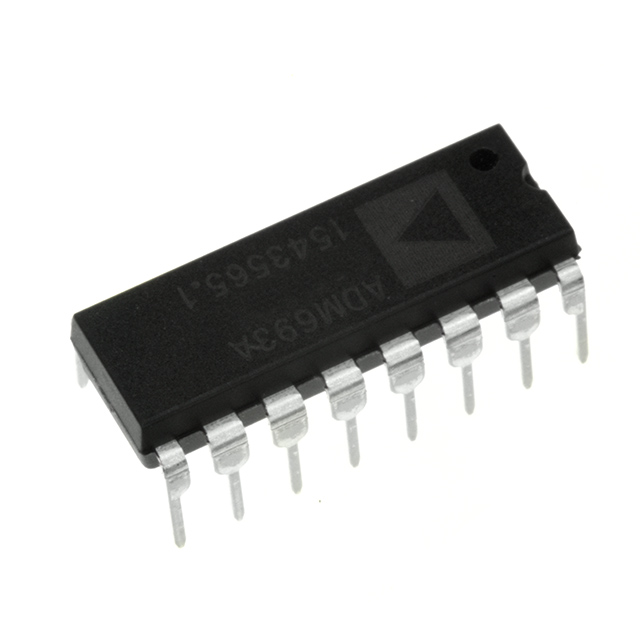

Part Number: ADM693ANZ

Category: Integrated Circuits (ICs)

MFG: Analog Devices Inc

Package Cooled: N

D/C: 2010+

Description: IC SUPERVISOR MPU 4.4V WD 16SOIC

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

ADM693ANZ Parameters

Technical/Catalog Information	ADM693ANZ
Vendor	Analog Devices Inc
Category	Integrated Circuits (ICs)
Output	Open Drain, Push-Pull
Reset	Active High/Active Low
Package / Case	16-DIP (300 mil)
Packaging	Tube
Number of Voltages Monitored	1
Reset Timeout	35 ms Minimum
Type	Battery Backup Circuit
Voltage - Threshold	4.4V
Operating Temperature	-40°C ~ 85°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ADM693ANZ ADM693ANZ

ADM693ARZ-REEL Parameters

Technical/Catalog Information	ADM693ARZ-REEL
Vendor	Analog Devices Inc
Category	Integrated Circuits (ICs)
Output	Open Drain, Push-Pull
Reset	Active High/Active Low
Package / Case	16-SOIC (7.5mm Width)
Packaging	Tape & Reel (TR)
Number of Voltages Monitored	1
Reset Timeout	35 ms Minimum
Type	Battery Backup Circuit
Voltage - Threshold	4.4V
Operating Temperature	-40°C ~ 85°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ADM693ARZ REEL ADM693ARZREEL

ADM694 General Description

The ADM690ADM695 family of supervisory circuits offers complete single chip solutions for power supply monitoring and battery control functions in microprocessor systems. These functions include mP reset, backup battery switchover, watchdog timer, CMOS RAM write protection, and power failure warning. The complete family provides a variety of configurations to satisfy most microprocessor system requirements.

The ADM690, ADM692 and ADM694 are available in 8-pin DIP packages and provide:
1. Power-on reset output during power-up, power-down and brownout conditions. The RESET output remains operational with V_CC as low as 1 V.
2. Battery backup switching for CMOS RAM, CMOS microprocessor or other low power logic.
3. A reset pulse if the optional watchdog timer has not been toggled within a specified time.
4. A 1.3 V threshold detector for power fail warning, low battery detection, or to monitor a power supply other than +5 V.

The ADM691, ADM693 and ADM695 are available in 16-pin DIP and small outline packages and provide three additional functions.
1. Write protection of CMOS RAM or EEPROM.
2. Adjustable reset and watchdog timeout periods.
3. Separate watchdog timeout, backup battery switchover, and low V_CC status outputs.

The ADM690ADM695 family is fabricated using an advanced epitaxial CMOS process combining low power consumption (5 mW), extremely fast Chip Enable gating (5 ns) and high reliability. RESET assertion is guaranteed with V_CC as low as 1 V. In addition, the power switching circuitry is designed for minimal voltage drop thereby permitting increased output current drive of up to 100 mA without the need for an external pass transistor .

ADM694 Maximum Ratings

V_CC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +6 V
V_BATT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to +6 V
All Other Inputs . . . . . . . . . . . . . . . . . 0.3 V to V_OUT + 0.5 V
Input Current
V_CC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ... 200 mA
V_BATT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .... 50 mA
GND . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ....20 mA
Digital Output Current . . . . . . . . . . . . . . . . . . . . . . . . ..20 mA
Power Dissipation, N-8 DIP . . . . . . . . . . . . . . . . . . . .400 mW
_JA Thermal Impedance . . . . . . . . . . . . . . . . . . . . .. 120°C/W
Power Dissipation, Q-8 DIP . . . . . . . . . . . . . . . . . . . 500 mW
_JA Thermal Impedance . . . . . . . . . . . . . . . . . . . . .. 125°C/W
Power Dissipation, N-16 DIP . . . . . . . . . . . . . . . . . . 600 mW
_JA Thermal Impedance . . . . . . . . . . . . . . . . . . . . . .135°C/W
Power Dissipation, Q-16 DIP . . . . . . . . . . . . . . . . . . 600 mW
_JA Thermal Impedance . . . . . . . . . . . . . . . . . . . . . .100°C/W
Power Dissipation, R-16 SOIC . . . . . . . . . . . . . . . . . .600 mW
_JA Thermal Impedance . . . . . . . . . . . . . . . . . . . . .. 110°C/W
Operating Temperature Range
Industrial (A Version) . . . . . . . . . . . . . . . . ... 40°C to +85°C
Extended (S Version) . . . . . . . . . . . . . . . . . 55°C to +125°C
Lead Temperature (Soldering, 10 secs) . . . . . . . . . . +300°C
Vapor Phase (60 secs) . . . . . . . . . . . . . . . . . . . . . . . +215°C
Infrared (15 secs) . . . . . . . . . . . . . . . . . . . . . . . . . . . +220°C
Storage Temperature Range . . . . . . . . . . . 65°C to +150°C

*Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those listed in the operational sections of this specification is not implied. Exposure to absolute maximum ratings for extended periods of time may affect device reliability.

ADM694 Features

` Superior Upgrade for MAX690MAX695
` Specified Over Temperature
` Low Power Consumption (5 mW)
` Precision Voltage Monitor
` Reset Assertion Down to 1 V V_CC
` Low Switch On-Resistance 1.5 Normal,20 in Backup
` High Current Drive (100 mA)
` Watchdog Timer-100 ms, 1.6 s, or Adjustable
` 600 nA Standby Current
` Automatic Battery Backup Power Switching
` Extremely Fast Gating of Chip Enable Signals (5 ns)
` Voltage Monitor for Power Fail

ADM694 Typical Application

· Microprocessor Systems
· Computers
· Controllers
· Intelligent Instruments
· Automotive Systems

ADM694 Connection Diagram
