ADS8320EVM, ADS8320UB, ADS8321

Table of contents:
Info of ADS8320EVM
Info of ADS8320UB
Info of ADS8321

ADS8320EVM, ADS8320UB, ADS8321 Selling Leads, Datasheet

MFG:Texas Instruments Category:Programmers, Development Systems Package Cooled:SOP D/C:04+05+

ADS8320EVM, ADS8320UB, ADS8321 Datasheet download

Five Points

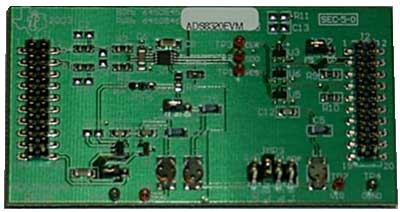

Part Number: ADS8320EVM

Category: Programmers, Development Systems

MFG: Texas Instruments

Package Cooled: SOP

D/C: 04+05+

Description: EVAL MOD FOR ADS8320

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

ADS8320EVM Parameters

Technical/Catalog Information	ADS8320EVM
Vendor	Texas Instruments
Category	Programmers, Development Systems
Number of ADC's	1
Inputs per ADC	1 Differential
Input Range	0 ~ 5 V
Data Interface	SPI?
Number of Bits	16
Sampling Rate (Per Second)	100k
Voltage Supply Source	Single
Operating Temperature	-40°C ~ 85°C
Supplied Contents	Board
Utilized IC / Part	ADS8320
Power (Typ) @ Conditions	4.5mW @ 100kSPS
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	ADS8320EVM ADS8320EVM 296 19916 ND 29619916ND 296-19916

ADS8321 Parameters

ADS8321 Features

BIPOLAR INPUT RANGE
100kHz SAMPLING RATE
MICRO POWER:
4.5mW at 100kHz
1mW at 10kHz
POWER DOWN: 3&mirco;A max
MSOP-8 PACKAGE
PIN-COMPATIBLE TO ADS7816 AND ADS7822
SERIAL (SPI/SSI) INTERFACE
APPLICATIONS
- BATTERY OPERATED SYSTEMS
- REMOTE DATA ACQUISITION
- ISOLATED DATA ACQUISITION
- SIMULTANEOUS SAMPLING, MULTI-CHANNEL SYSTEMS
- INDUSTRIAL CONTROLS
- ROBOTICS
- VIBRATION ANALYSIS

ADS8321 General Description

16-Bit, High Speed, MicroPower Sampling Analog-to-Digital Converter

ADS8321 Maximum Ratings

V_CC ..................................................................................................... +6V
Analog Input ........................................................... 0.3V to (V_CC + 0.3V)
Logic Input ..............................................................................0.3V to 6V
Case Temperature ......................................................................... +100
Junction Temperature .................................................................... +150
Storage Temperature .................................................................... +125
External Reference Voltage ............................................................. +5.5V
NOTE: (1) Stresses above these ratings may permanently damage the device.

ADS8321 Features

BIPOLAR INPUT RANGE
100kHz SAMPLING RATE
MICRO POWER:
4.5mW at 100kHz
1mW at 10kHz
POWER DOWN: 3&mirco;A max
MSOP-8 PACKAGE
PIN-COMPATIBLE TO ADS7816 AND ADS7822
SERIAL (SPI/SSI) INTERFACE
APPLICATIONS
- BATTERY OPERATED SYSTEMS
- REMOTE DATA ACQUISITION
- ISOLATED DATA ACQUISITION
- SIMULTANEOUS SAMPLING, MULTI-CHANNEL SYSTEMS
- INDUSTRIAL CONTROLS
- ROBOTICS
- VIBRATION ANALYSIS

ADS8321 Typical Application

ADS8321 Datasheet

ADS8321 Connection Diagram
