MFG:Diodes Inc (VA) Category:Integrated Circuits (ICs) Package Cooled:APA D/C:06+

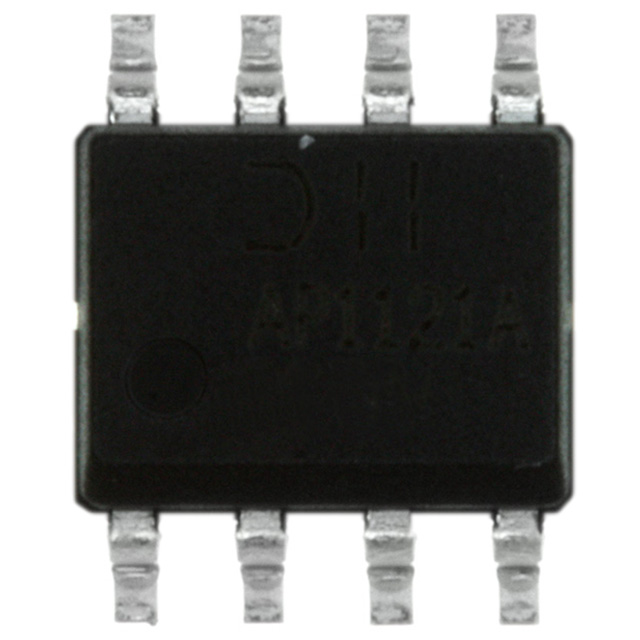

AP1121, AP1121ASL-13, AP1121B Datasheet download
Category: Integrated Circuits (ICs)
MFG: Diodes Inc (VA)
Package Cooled: APA
D/C: 06+
Description: IC REG LDO 1.0A 3.3/2.5V 8-SOIC
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: AP1121
File Size: 514125 KB
Manufacturer: ANACHIP
Download : Click here to Download
PDF/DataSheet Download
Datasheet: AP10
File Size: 239928 KB
Manufacturer:
Download : Click here to Download
PDF/DataSheet Download
Datasheet: AP1121BSA
File Size: 147736 KB
Manufacturer: ANACHIP [Anachip Corp]
Download : Click here to Download
AP1121 series are low dropout positive regulator with minimum of 1A output current capability. The product is specifically designed to provide well-regulated supply for low voltage IC applications such as high-speed bus termination and low current 3.3V/2.5V or 3.3V/1.8V logic supply. AP1121 series are guaranteed to have <1.3V dropout at full load current making it ideal to provide well regulated outputs dual channels with up to 18V input supply.
| Symbol | Parameter | Rating | Unit |
| VIN | DC Supply Voltage | -0.3 to 18 V | V |
| PD | Power Dissipation | Internally Limited | |
| TST | Storage Temperature | -65 to +150 | oC |
| TOP | Operating Junction Temperature Range | 0 to +150 | oC |
| Technical/Catalog Information | AP1121ASL-13 |
| Vendor | Diodes Inc (VA) |
| Category | Integrated Circuits (ICs) |
| Regulator Type | Multiple Output |
| Package / Case | 8-SOIC (3.9mm Width) |
| Packaging | Cut Tape (CT) |
| Regulator Topology | Positive Fixed |
| Current - Output | 1A |
| Voltage - Output | 2.5V, 3.3V |
| Operating Temperature | 0°C ~ 125°C |
| Voltage - Input | 4 ~ 12 V |
| Number of Regulators | 2 |
| Current - Limit (Min) | 1.1A |
| Current Short Circuit (Isc) | - |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | AP1121ASL 13 AP1121ASL13 AP1121ASLDICT ND AP1121ASLDICTND AP1121ASLDICT |
