AP1212HS, AP1212HSL, AP1212HSL-13 Datasheet download
Category: Integrated Circuits (ICs)
MFG: Diodes Inc (VA)
Package Cooled: SOP-8
D/C: 08+
Description: IC PWR SWITCH USB HISIDE 8-SOIC
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: AP1212HSA
File Size: 252643 KB
Manufacturer: ANACHIP [Anachip Corp]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: AP1212HSL
File Size: 252643 KB
Manufacturer: ANACHIP [Anachip Corp]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: AP10
File Size: 239928 KB
Manufacturer:
Download : Click here to Download
| Technical/Catalog Information | AP1212HSL-13 |
| Vendor | Diodes Inc (VA) |
| Category | Integrated Circuits (ICs) |
| Package / Case | 8-SOIC (3.9mm Width) |
| Mounting Type | Surface Mount |
| Type | High Side |
| Voltage - Supply | 2.7 V ~ 5.5 V |
| On-State Resistance | 110 mOhm |
| Current - Output / Channel | 500mA |
| Current - Peak Output | 1A |
| Packaging | Cut Tape (CT) |
| Input Type | Non-Inverting |
| Number of Outputs | 2 |
| Operating Temperature | -40°C ~ 125°C |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | AP1212HSL 13 AP1212HSL13 AP1212HSLDICT ND AP1212HSLDICTND AP1212HSLDICT |

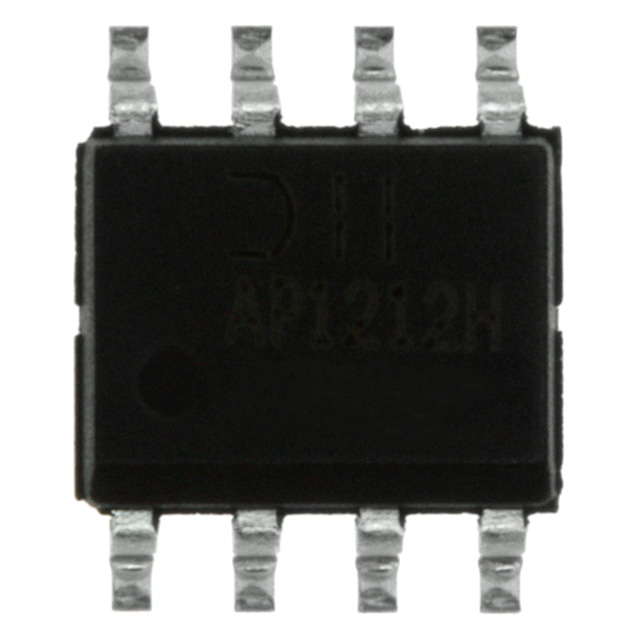

The AP1212HSL-13 is one member of the AP1212 series which designed as the dual usb high-side power switch that independent enable and flag functions, optimized for self-powered and bus-powered Universal Serial Bus (USB) applications. It can be used in hot plug-in power supplies, battery-charger circuits and USB hubs.
Features of the AP1212HSL-13 are:(1)compliant to USB specifications;(2)dual independent switches control;(3)2.7V to 5.5V input voltage;(4)500mA minimum continuous current per port;(5)110m typical on-resistance;(6)1.25A maximum short circuit current limit;(7)independent open-drain fault flag pins;(8)110A typical on-state supply current;(9)independent open-drain fault flag pins;(10)1.25A maximum short circuit current limit;(11)dual independent switches control;(12)2.7V to 5.5V input voltage;(13)500mA minimum continuous current per port;(14)110m typical on-resistance.
The absolute maximum ratings of the AP1212HSL-13 can be summarized as:(1)supply voltage:+2.7 to +5.5 V;(2)operating junction temperature:-40 to +125 °C;(3)thermal resistance SOP junction to ambient:165 °C/W;(4)thermal resistance SOP junction to case:26 °C/W. If you want to know more information such as the electrical characteristics about the AP1212HSL-13, please download the datasheet in www.seekic.com or www.chinaicmart.com .
