MFG:Avago Technologies US, Inc. (VA) Category:Optoelectronics Package Cooled:AVAGO D/C:2008
ASMC-PRB9-TV005, ASMC-QAB2-TAC0E, ASMC-QHB2-TCD0E Datasheet download
Category: Optoelectronics
MFG: Avago Technologies US, Inc. (VA)
Package Cooled: AVAGO
D/C: 2008

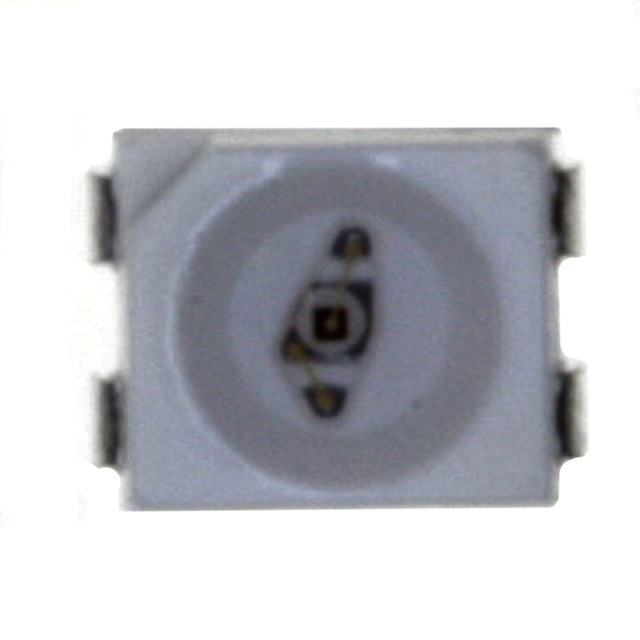

Description: LED RED 630NM 120DEG 4-PLCC
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: ASMC-PRB9-TV005
File Size: 92708 KB
Manufacturer: HP [Agilent(Hewlett-Packard)]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: ASM
File Size: 303556 KB
Manufacturer: Abracon Corporation
Download : Click here to Download
PDF/DataSheet Download
Datasheet: ASM
File Size: 303556 KB
Manufacturer: Abracon Corporation
Download : Click here to Download
| Technical/Catalog Information | ASMC-PRB9-TV005 |
| Vendor | Avago Technologies US, Inc. (VA) |
| Category | Optoelectronics |
| Color | Red |
| Lens Style/Size | Round, 2.4mm |
| Millicandela Rating | 900mcd |
| Voltage - Forward (Vf) Typ | 2.8V |
| Wavelength - Dominant | 630nm |
| Wavelength - Peak | 639nm |
| Current - Test | 50mA |
| Viewing Angle | 120° |
| Lens Type | - |
| Luminous Flux | 2.83 lm |
| Package / Case | PLCC-4 |
| Mounting Type | Surface Mount |
| Packaging | Digi-Reel? |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | ASMC PRB9 TV005 ASMCPRB9TV005 516 1782 6 ND 51617826ND 516-1782-6 |
The Envisium Power PLCC-4 SMT LED is an extension of Agilent's PLCC-4 SMT LEDs. The package can be driven at high current due to its superior package design. The product is able to dissipate the heat more efficiently compared to the conventional PLCC-2 SMT LEDs. These LEDs produce higher light output with better flux performance compared to the conventional PLCC-4 SMT LEDs.
The Envisium Power PLCC-4 SMT LEDs are designed for higher reliability, better performance, and operate under a wide range of environmental conditions. The performance characteristics of these new mid-power LEDs make them uniquely suitable for use in harsh conditions such as in automotive applications, and in electronics signs and signals.
To facilitate easy pick and place assembly, the LEDs are packed in EIA-compliant tape and reel. Every reel is shipped in single intensity and color bin (except for red), to provide close uniformity. These LEDs are compatible with the IR solder reflow process. Due to the high reliability feature of these products, they also can be mounted using through-the-wave soldering process.
The Envisium Power PLCC-4 SMT LED is available in 3 colors, red, red-orange and amber.
|
Parameters |
ASMC-PxB9-Txxxx |
| DC Forward Current[1] Peak Forward Current[2] Power Dissipation Reverse Voltage Junction Temperature Operating Temperature Storage Temperature |
70 mA[3,4] 200 mA 240 mW 5 V 125°C -40°C to +100°C -40°C to +100°C |
