AT64020, AT-64020, AT-64020-TR1

MFG:Avago Technologies US Inc. Category:Discrete Semiconductor Products Package Cooled:200 D/C:ATMEL

Part Number: AT-64020

Category: Discrete Semiconductor Products

MFG: Avago Technologies US Inc.

Package Cooled: 200

D/C: ATMEL

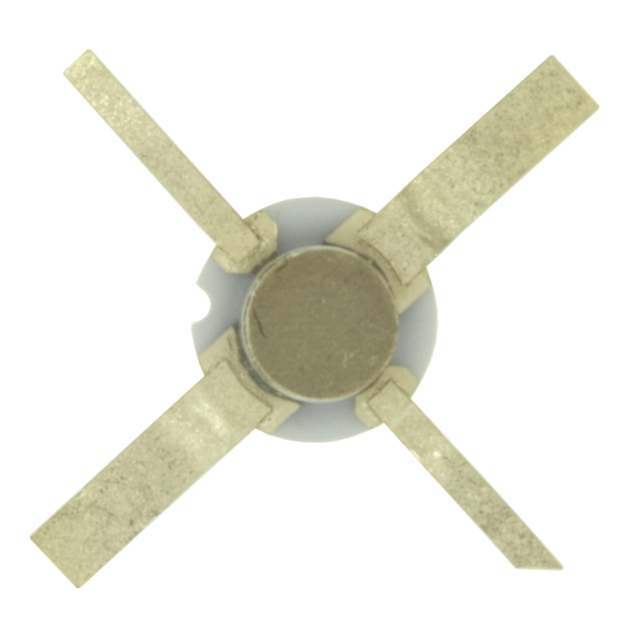

Description: TRANS NPN BIPO 20V 200MA 200-SMD
