AT89C5132-ROTIL, AT89C5132ROTUL, AT89C5132-ROTUL

Table of contents:
Info of AT89C5132-ROTIL
Info of AT89C5132ROTUL
Info of AT89C5132-ROTUL

AT89C5132-ROTIL, AT89C5132ROTUL, AT89C5132-ROTUL Selling Leads, Datasheet

MFG:Atmel Category:Integrated Circuits (ICs) Package Cooled:N/A D/C:09+

AT89C5132-ROTIL, AT89C5132ROTUL, AT89C5132-ROTUL Datasheet download

Five Points

Part Number: AT89C5132-ROTIL

Category: Integrated Circuits (ICs)

MFG: Atmel

Package Cooled: N/A

D/C: 09+

Description: IC 8051 MCU FLASH 64K USB 80TQFP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

AT89C5132-ROTIL Parameters

Technical/Catalog Information	AT89C5132-ROTIL
Vendor	Atmel
Category	Integrated Circuits (ICs)
Program Memory Size	64K x 8
RAM Size	2.25K x 8
Number of I /O	44

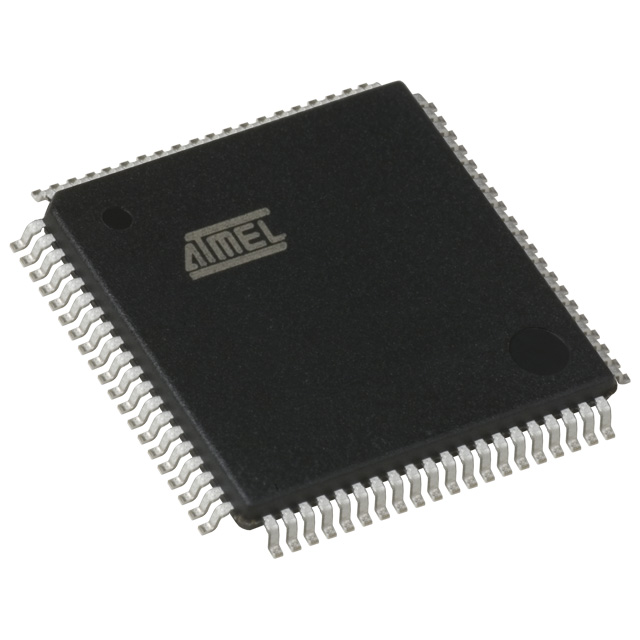

Package / Case	80-TQFP
Speed	20MHz
Controller Series	AT89C513x
Oscillator Type	Internal
Packaging	Tray
Program Memory Type	FLASH
EEPROM Size	4K x 8
Core Processor	C52X2
Data Converters	A/D 2x10b
Core Size	8-Bit
Operating Temperature	-40°C ~ 85°C
Connectivity	IDE/ATAPI, I²C, MMC, PCM, SPI, UART/USART, USB
Peripherals	I²S, POR, WDT
Voltage - Supply (Vcc/Vdd)	2.7 V ~ 3.3 V
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	AT89C5132 ROTIL AT89C5132ROTIL

AT89C5132-ROTIL General Description

The AT89C5132 is a mass storage device controlling data exchange between various Flash modules, HDD and CD-ROM.

The AT89C5132 includes 64K Bytes of Flash memory and allows In-System Programming through an embedded 4K Bytes of Boot Flash Memory.

The AT89C5132 include 2304 Bytes of RAM memory.

The AT89C5132 provides all the necessary features for man-machine interface including, timers, keyboard port, serial or parallel interface (USB, SPI, IDE), ADC input, I2S output, and all external memory interface (NAND or NOR Flash, SmartMedia, MultiMedia, DataFlash cards).

AT89C5132-ROTIL Maximum Ratings

Storage Temperature ..................................... -65 to +150
Voltage on any other Pin to V_SS ..........................-0.3 to +4.0V
I_OL per I/O Pin ................................................................. 5 mA
Power Dissipation............................................................. 1 W
Ambient Temperature Under Bias.................... ..-40to +85V_DD ............................................................................2.7V to 3.3V

AT89C5132-ROTIL Features

` Programmable Audio Output for Interfacing with Common Audio DAC
PCM Format Compatible
I²S Format Compatible
` 8-bit MCU C51 Core-based (F_MAX = 20 MHz)
` 2304 Bytes of Internal RAM
` 64K Bytes of Code Memory
AT89C5132: Flash (100K Write/Erase Cycles)
` 4K Bytes of Boot Flash Memory (AT89C5132)
ISP: Download from USB or UART to any External Memory Cards
` USB Rev 1.1 Device Controller
"Full Speed" Data Transmission
` Built-in PLL
` MultiMedia Card® Interface Compatibility
` Atmel DataFlash® SPI Interface Compatibility
` IDE/ATAPI Interface
` 2 Channels 10-bit ADC, 8 kHz (8 True Bits)
Battery Voltage Monitoring
Voice Recording Controlled by Software
` Up to 44 Bits of General-purpose I/Os
4-bit Interrupt Keyboard Port for a 4 x n Matrix
SmartMedia® Software Interface
` Two Standard 16-bit Timers/Counters
` Hardware Watchdog Timer
` Standard Full Duplex UART with Baud Rate Generator
` Two Wire Master and Slave Modes Controller
` SPI Master and Slave Modes Controller
` Power Management
Power-on Reset
Software Programmable MCU Clock
Idle Mode, Power-down Mode
` Operating Conditions
3V, ±10%, 25 mA Typical Operating at 25
Temperature Range: -40 to +85
` Packages
TQFP80, PLCC84 (Development Board Only)
Dice

AT89C5132-ROTIL Typical Application

• Flash Recorder/Writer
• PDA, Camera, Mobile Phone
• PC Add-on

AT89C5132-ROTIL Connection Diagram

AT89C5132-ROTUL Parameters

Technical/Catalog Information	AT89C5132-ROTUL
Vendor	Atmel
Category	Integrated Circuits (ICs)
Program Memory Size	64K x 8
RAM Size	2.25K x 8
Number of I /O	44
Package / Case	80-TQFP
Speed	20MHz
Controller Series	AT89C513x
Oscillator Type	Internal
Packaging	Tray
Program Memory Type	FLASH
EEPROM Size	4K x 8
Core Processor	C52X2
Data Converters	A/D 2x10b
Core Size	8-Bit
Operating Temperature	-40°C ~ 85°C
Connectivity	IDE/ATAPI, I²C, MMC, PCM, SPI, UART/USART, USB
Peripherals	I²S, POR, WDT
Voltage - Supply (Vcc/Vdd)	2.7 V ~ 3.3 V
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	AT89C5132 ROTUL AT89C5132ROTUL
