MFG:EPCOS Inc Category:Circuit Protection Package Cooled:QFP D/C:2009
B59736 1037362194, B59750B0120A070, B59759 1037362196 Datasheet download
Category: Circuit Protection
MFG: EPCOS Inc
Package Cooled: QFP
D/C: 2009

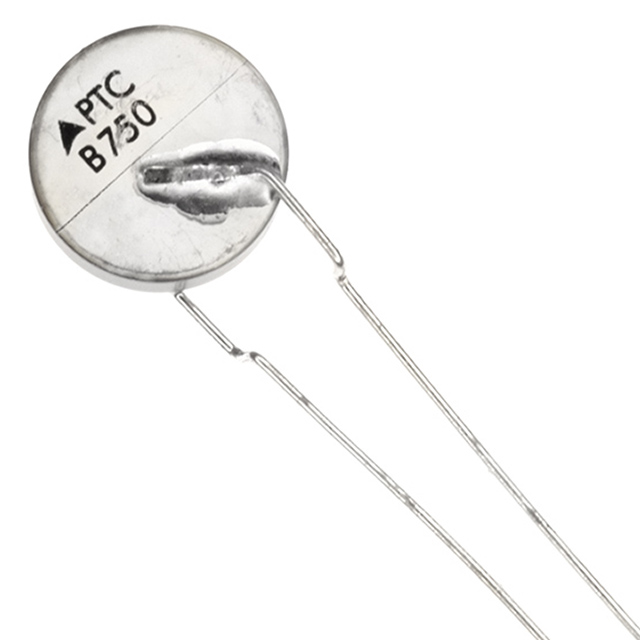

Description: PTC RESETTABLE 123MA 380V RAD
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: B59008B1130A051
File Size: 385126 KB
Manufacturer: EPCOS
Download : Click here to Download
PDF/DataSheet Download
Datasheet: B59750B0120A070
File Size: 407321 KB
Manufacturer: EPCOS
Download : Click here to Download
PDF/DataSheet Download
Datasheet: B59008B1130A051
File Size: 385126 KB
Manufacturer: EPCOS
Download : Click here to Download
| Technical/Catalog Information | B59750B0120A070 |
| Vendor | EPCOS Inc |
| Category | Circuit Protection |
| Package / Case | Radial |
| Packaging | Bulk |
| Current - Hold (Ih) (Max) | 123mA |
| Current - Trip (It) | 245mA |
| Current - Max | 2A |
| Voltage - Max | 380V |
| Time to Trip | 6s |
| R Min/Max | 13.00 ~ 25.00 Ohm |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | B59750B0120A070 B59750B0120A070 495 3879 ND 4953879ND 495-3879 |
The B59750B0120A070 has eight features.(1)PTC thermistor in a plastic case (2-pin).(2)marked with manufacurer's logo,type designation and date code.(3)flame-retardant case material (UL 94 V-0).(4)solderability to IEC 60068-2-20 (test ta, methode 1).(5)stable performance throughout a large number of switching cycles owing to clamp contacting.(6)UL approval for J 563, J 555, J 705, J 707 and J 709 to UL 1434 (file number E69802).(7)VDE approval for J 209, J 709, J 120 and J 140 (license number 128911).(8)CECC 60738-1-3-001 approval.
EPCOS AG 2002. Reproduction, publication and dissemination of this brochure and the information contained therein without EPCOS' prior express consent is prohibited.Purchase orders are subject to the General Conditions for the Supply of Products and Services of the Electrical and Electronics Industry recommended by the ZVEI (German Electrical and Electronic Manufacturers' Association), unless otherwise agreed.This brochure replaces the previous edition.For questions on technology, prices and delivery please contact the Sales Offices of EPCOS AG or the international Representatives.Due to technical requirements components may contain dangerous substances. For information on the type in question please also contact one of our Sales Offices.
