MFG:STMicroelectronics Category:Discrete Semiconductor Products Package Cooled:2009+ROHS D/C:50000
BTA40-800B, BTA41, BTA-41 Datasheet download
Category: Discrete Semiconductor Products
MFG: STMicroelectronics
Package Cooled: 2009+ROHS
D/C: 50000
Description: TRIAC 800V 40A RD-91
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: BTA40-800B
File Size: 68878 KB
Manufacturer: STMICROELECTRONICS [STMicroelectronics]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: BTA41
File Size: 105691 KB
Manufacturer: STMicroelectronics
Download : Click here to Download
PDF/DataSheet Download
Datasheet: BTA04
File Size: 448545 KB
Manufacturer: STMICROELECTRONICS [STMicroelectronics]
Download : Click here to Download
| Technical/Catalog Information | BTA40-800B |
| Vendor | STMicroelectronics |
| Category | Discrete Semiconductor Products |
| Triac Type | Standard |
| Configuration | Single |
| Voltage - Off State | 800V |
| Current - On State (It (RMS) (Max) | 40A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3V |
| Current - Gate Trigger (Igt) (Max) | 50mA |
| Current - Hold (Ih) (Max) | 80mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 400A, 420A |
| Mounting Type | Chassis Mount |

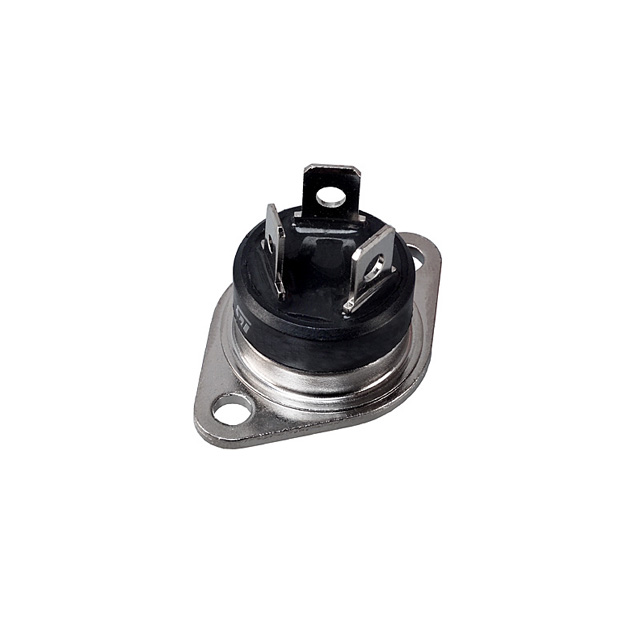

| Package / Case | RD91-3 (Insulated) |
| Packaging | Tube |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | BTA40 800B BTA40800B 497 2405 5 ND 49724055ND 497-2405-5 |
Available in high power packages, the BTA/ BTB40-41 series is suitable for general purpose AC power switching. They can be used as an ON/ OFF function in applications such as static relays, heating regulation, water heaters, induction motor starting circuits, welding equipment... or for phase control operation in high power motor speed controllers, soft start circuits...
Thanks to their clip assembly technique, they provide a superior performance in surge current handling capabilities.
By using an internal ceramic pad, the BTA series provides voltage insulated tab (rated at 2500 V RMS) complying with UL standards (File ref.: E81734).
|
Symbol |
Parameter |
Value |
Unit | |||
|
IT(RMS) |
RMS on-state current (full sine wave) |
RD91 |
Tc= 80 |
40 |
A | |
|
TOP3 | ||||||
|
TOP3 Ins. |
Tc= 70 | |||||
|
ITSM |
Non repetitive surge peakon-state current (full cycle, Tj initial = 25) |
F = 60 Hz |
t = 16.7 ms |
420 |
A | |
|
F = 50 Hz |
t = 20 ms |
400 | ||||
|
I²t |
I2t Value for fusing |
tp = 10 ms |
880 |
A²S | ||
|
dI/dt |
Critical rate of rise of on-state current IG = 2 x IGT , tr £ 100 ns |
F = 120 Hz |
Tj = 125 |
50 |
A/µs | |
| VDSM/VRSM | Non repetitive surge peak off-state voltage |
tp = 10 ms |
Tj = 25 |
VDRM/VRRM + 100 |
V | |
|
IGM |
Peak gate current |
tp = 20 µs |
Tj = 125 |
8 |
A | |
|
PG(AV) |
Average gate power dissipation |
Tj = 125 |
1 |
W | ||
|
Tstg Tj |
Storage junction temperature range Operating junction temperature range |
-40 to +150 -40 to +125 |
||||
