BTS442L2, BTS443P, BTS452R

MFG:Infineon Technologies (VA) Category:Integrated Circuits (ICs) Package Cooled:TO263-5 D/C:06+

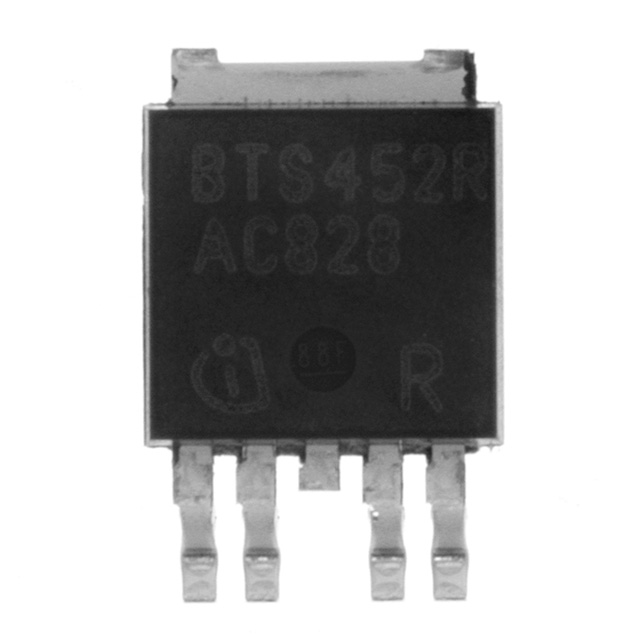

Part Number: BTS452R

Category: Integrated Circuits (ICs)

MFG: Infineon Technologies (VA)

Package Cooled: TO263-5

D/C: 06+

Description: IC PWR SWITCH 62V HISIDE TO252-5

Price Break

Call

Unit Price

Call

Extended Price

2.68
51.04
178.64
1116.50

(All prices are in USD)Prices for reference only

BTS442L2 Supplier

BTS442L2

MFG: infineon Package Cooled: TO263-5 D/C: 06+ Qty: 42654

RU CHEN (HK) ELECTRONICS COMPANY China

Contact: Mr.LIN

Tel: 86-0754-84479727

Adddate: 2010-03-13

BTS 712 N1

MFG: Infineon Package Cooled: SOP-20 Qty: 2000

WELL-SOURCE COMPONENTS China

Contact: Ms.SUSIE CHEN

Tel: 86-755-28536689

Adddate: 2010-03-13

BTS 712 N1

MFG: Infineon Qty: 1000 Note: RFQ,CALL FOR PRICE

Grand Parts Electronics Corporation China

Contact: Mr.Marco

Tel: 86-755-8281-4478

Adddate: 2010-03-13

BTS 712 N1

MFG: Infineon D/C: 0348 Qty: 25463 Note: In stock

IC Agent Electronics LTD Hong

Contact: Ms.Jennifer

Tel: 00-852-60604995

Adddate: 2010-03-13

BTS 716 G

MFG: Infineon Package Cooled: SOP-20 Qty: 1000

WELL-SOURCE COMPONENTS China

Contact: Ms.SUSIE CHEN

Tel: 86-755-28536689

Adddate: 2010-03-13

BTS 716 G

MFG: 1003 D/C:

FUTURETECH COMPONENTS LIMITED China

Contact: Ms.Linda Chen

Tel: 86-755-83047613

Adddate: 2010-03-13

BTS 716 G

MFG: Infineon Qty: 1000 Note: RFQ,CALL FOR PRICE

Grand Parts Electronics Corporation China

Contact: Mr.Marco

Tel: 86-755-8281-4478

Adddate: 2010-03-13

About BTS100

PDF/DataSheet Download

Datasheet: BTS100

File Size: 447180 KB

Manufacturer: SIEMENS [Siemens Semiconductor Group]

Download : Click here to Download

Related PDF Download

BTS110
File Size: 574041 KB

BTS112A
File Size: 593185 KB

BTS113A
File Size: 561964 KB

BTS112
File Size: 327460 KB

BTS113
File Size: 316535 KB

Related Part Number

BTS 716 G - -

BTS100 - -

BTS110 Infineon Technologies - TO-220 - 02

BTS113 Infineon Technologies - TO-263 - 08+

BTS114 TO220 - 5005 - INFINEON

BTS115 Infineon Technologies - -

BTS115AE3045 sie - sie - dc95

BTS117 Infineon Technologies - TO-220 - 01

BTS120 Infineon Technologies - TO-220 - 02

BTS121A SMD INFINEON - P-TO220-3 - 07+pbfree

BTS129A Infineon - TO-220 -

BTS130E3045A INFINEON - - 01+

BTS131A - - 03+

BTS132A Infineon Technologies - TO-263 - 03+

BTS134D Infineon Technologies - -

BTS140 Infineon Technologies - TO-263 - 08+

BTS141E3045A Infineon Technologies - 四脚半 - 05+

BTS1640 - NO - 7701

BTS202Z TO220 - 1025 - INFINEON

BTS21451L SOP12 - 175 - INFINEON

BTS452R Supplier

BTS452R

MFG: INFINEON Package Cooled: TO252 D/C: 06+ Qty: 2480 Note: 盘装

Shen Zhen Yuet Xin Peng Electronic Co., China

Contact: Ms.yilin

Tel: 86-755-83743222

Adddate: 2010-03-13

BTS452R

MFG: INFINEON Package Cooled: TO-252 D/C: 2 Qty: 5060

WELL-SOURCE COMPONENTS China

Contact: Ms.SUSIE CHEN

Tel: 86-755-28536689

Adddate: 2010-03-13

BTS452R

MFG: INFINEON D/C: 2002+ Qty: 5070

STJ-TECH INTL'CO.,LTD China

Contact: Ms.Jenny Fu/George Ming

Tel: 86-755-8268-6456/8268-6500

Adddate: 2010-03-13

BTS452R

MFG: INF D/C: 05+ Qty: 22000 Note: new in stock

WINNI（HK）ELECTRONIC COMPANY China

Contact: Ms.winnie

Tel: 86-760-88228528

Adddate: 2010-03-13

BTS452R

MFG: INFINEON Qty: 10 Note: Delivery

Golden Harbour Industry Limited China

Contact: Mr.sam

Tel: 86-755-83651739,83041561

Adddate: 2010-03-13

BTS452R

MFG: INFINEON Package Cooled: 02 Qty: 60

Anduo Components Co.,Ltd China

Contact: Ms.RebeccaMiao

Tel: 86-10-58816651/58816653

Adddate: 2010-03-13

BTS452R

MFG: N/A Package Cooled: 15000

Anduo Components Co.,Ltd China

Contact: Ms.RebeccaMiao

Tel: 86-10-58816651/58816653

Adddate: 2010-03-13

BTS452R

MFG: INFINEON D/C: 2 Qty: 60 Note: 北京現貨優勢

Beijing Recenger Electronics Co., Ltd. China

Contact: Mr.Times Yuan

Tel: 086-010-59492036

Adddate: 2010-03-13

About BTS452R

PDF/DataSheet Download

Datasheet: BTS452R

File Size: 340001 KB

Manufacturer: INFINEON [Infineon Technologies AG]

Download : Click here to Download

Related PDF Download

BTS100
File Size: 447180 KB

BTS110
File Size: 574041 KB

BTS112A
File Size: 593185 KB

BTS112
File Size: 327460 KB

BTS113
File Size: 316535 KB

Related Part Number

BTS 712 N1 - 金属帽 - 7702

BTS001A - -

BTS1060 - -

BTS112-A SMD Infineon Technologies - TO-220 - 02

BTS113AE3045A Infineon Technologies - TO-263 - 08+

BTS114A SMD TO220 - 5005 - INFINEON

BTS115A SMD Infineon Technologies - -

BTS116 sie - sie - dc95

BTS118D Infineon Technologies - TO-220 - 01

BTS121A Infineon Technologies - TO-220 - 02

BTS129 SMD INFINEON - P-TO220-3 - 07+pbfree

BTS130A Infineon - TO-220 -

BTS131 SMD INFINEON - - 01+

BTS132 SMD - - 03+

BTS133 Infineon Technologies - TO-263 - 03+

BTS136 Infineon Technologies - -

BTS141 Infineon Technologies - TO-263 - 08+

BTS149 Infineon Technologies - 四脚半 - 05+

BTS176DV - NO - 7701

BTS2140-1P TO220 - 1025 - INFINEON

BTS443P Supplier

BTS443P

D/C: N/A Qty: 1120

Aslan Internatinal Trade Co., Limited China

Contact: Mr.David King

Tel: 86-754-84420881

Adddate: 2010-03-13

BTS443P

MFG: N/A Package Cooled: N/A D/C: 9+ Qty: 15000 Note: New & original, stock offer

TONGGUANG (H.K.) ELECTRICS CO., LIMITED China

Contact: Mr.james

Tel: +86-755-83996795

Adddate: 2010-03-13

BTS443P

MFG: Infineon Qty: 8800

WELL-SOURCE COMPONENTS China

Contact: Ms.SUSIE CHEN

Tel: 86-755-28536689

Adddate: 2010-03-13

BTS443P

MFG: N/A Package Cooled: NA/ D/C: 09+ Qty: 5864

HK Lianda electroics Inc China

Contact: Mr.John Zhang

Tel: 86-755-8288-4268

Adddate: 2010-03-13

BTS443P

MFG: N/A Package Cooled: N/A D/C: 08+09+ Qty: 2669 Note: STOCK

HK Feiyu electronics Inc China

Contact: Ms.Cherry Feng

Tel: 86-755-8288-4368

Adddate: 2010-03-13

BTS443P

MFG: INFINEON D/C: 2002+ Qty: 9834

STJ-TECH INTL'CO.,LTD China

Contact: Ms.Jenny Fu/George Ming

Tel: 86-755-8268-6456/8268-6500

Adddate: 2010-03-13

BTS443P

MFG: INF Package Cooled: TO-252 D/C: 06+ Qty: 10 Note: new and original

Bizon Industry Co., Limited China

Contact: Ms.Echo

Tel: 0086-0755-82567682

Adddate: 2010-03-13

BTS443P

MFG: INFINEON D/C: 04+ Qty: 50

B.T.Chips(HONGKONG) Electronics Co.,Ltd China

Contact: Ms.DannaLee

Tel: 86-0755-29215002 / 26001784

Adddate: 2010-03-13

About BTS443P

PDF/DataSheet Download

Datasheet: BTS443P

File Size: 230944 KB

Manufacturer: INFINEON [Infineon Technologies AG]

Download : Click here to Download

Related PDF Download

BTS100
File Size: 447180 KB

BTS110
File Size: 574041 KB

BTS112A
File Size: 593185 KB

BTS112
File Size: 327460 KB

BTS113
File Size: 316535 KB

Related Part Number

BTS1660 - NO - 7701

BTS2140-1B TO220 - 1025 - INFINEON

BTS2145-1P SOP12 - 175 - INFINEON

BTS240 SIEMENS - SOP28 -

BTS 721-L1 - -

BTS104S - -

BTS112A Infineon Technologies - TO-220 - 02

BTS113A Infineon Technologies - TO-263 - 08+

BTS114A TO220 - 5005 - INFINEON

BTS115A Infineon Technologies - -

BTS115AE3045A sie - sie - dc95

BTS117E3045A Infineon Technologies - TO-220 - 01

BTS121 Infineon Technologies - TO-220 - 02

BTS129 INFINEON - P-TO220-3 - 07+pbfree

BTS130 Infineon - TO-220 -

BTS131 INFINEON - - 01+

BTS132 - - 03+

BTS132E3045A Infineon Technologies - TO-263 - 03+

BTS134U Infineon Technologies - -

BTS140A Infineon Technologies - TO-263 - 08+

BTS443P Parameters

Technical/Catalog Information	BTS443P
Vendor	Infineon Technologies (VA)
Category	Integrated Circuits (ICs)
Package / Case	DPak, TO-252 (4 leads + tab)
Mounting Type	Surface Mount
Type	High Side
Voltage - Supply	5 V ~ 36 V
On-State Resistance	13 mOhm
Current - Output / Channel	25A
Current - Peak Output	65A
Packaging	Cut Tape (CT)
Input Type	Non-Inverting
Number of Outputs	1
Operating Temperature	-40°C ~ 150°C
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	BTS443P BTS443P BTS443PINCT ND BTS443PINCTND BTS443PINCT

BTS452R Parameters

Technical/Catalog Information	BTS452R
Vendor	Infineon Technologies (VA)
Category	Integrated Circuits (ICs)
Package / Case	DPak, TO-252 (4 leads + tab)
Mounting Type	Surface Mount
Type	High Side
Voltage - Supply	6 V ~ 52 V
On-State Resistance	150 mOhm
Current - Output / Channel	2.2A
Current - Peak Output	6.5A
Packaging	Digi-Reel?
Input Type	Non-Inverting
Number of Outputs	1
Operating Temperature	-40°C ~ 150°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	BTS452R BTS452R BTS452RINDKR ND BTS452RINDKRND BTS452RINDKR

BTS452R General Description

N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS^®technology.

Providing embedded protective functions.

BTS452R Maximum Ratings

Parameter	Symbol	Value	Unit
Supply voltage	V_bb	52	V
Supply voltage for full short circuit protection	V_bb（SC）	50	V
Continuous input voltage	V_IN	-10 ... +16
Load current (Short - circuit current, see page 5)	I_L	self limited	A
Current through input pin (DC)	I_IN	±5	mA
Operating temperature	T_j	-40 ...+150	℃
Storage temperature	T_stg	-55 ... +150	℃
Power dissipation⁴)	P_tot	41.6	W
Inductive load switch-off energy dissipation⁴)⁵) single pulse T_j= 125 I_L= 0.5 A	E_AS	150	J
Load dump protection5)VLoadDump6)= V_A+ V_S R_I=2Ω, t_d=400ms, V_IN= low or high, V_A=13,5V R_L= 47 Ω	V_Loaddump	73.5 88.5	V
Electrostatic discharge voltage(HumanBodyModel) according to ANSI EOS/ESD - S5.1 - 1993 ESD STM5.1 - 1998 Input pin All other pins	V_ESD	±1 ±5	kV

BTS452R Features

•Overload protection
•Current limitation
•Short circuit protection
•Thermal shutdown with restart
•Overvoltage protection
  (including load dump)
•Fast demagnetization of inductive loads
•Reverse battery protection
  with external resistor
•Open drain diagnostic output for overtemperature
  and short circuit
•Open load detection in OFF - State
  with external resistor
•CMOS compatible input
• Loss of GND and loss of V_bbprotection
•ESD - Protection
•Very low standby current

BTS452R Typical Application

•All types of resistive, inductive and capacitive loads
•µC compatible power switch for 12 V, 24 V and 42 V DC applications
• Replaces electromechanical relays and discrete circuits

BTS452R Connection Diagram
