CD74ACT00M96, CD74ACT02, CD74ACT02E

Table of contents:
Info of CD74ACT00M96
Info of CD74ACT02
Info of CD74ACT02E

CD74ACT00M96, CD74ACT02, CD74ACT02E Selling Leads, Datasheet

MFG:Texas Instruments Category:Integrated Circuits (ICs) Package Cooled:14SOIC D/C:08.09+

CD74ACT00M96, CD74ACT02, CD74ACT02E Datasheet download

Five Points

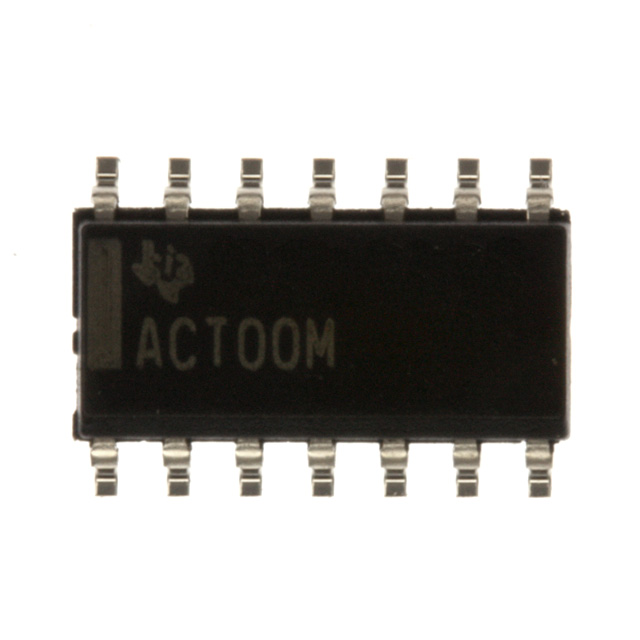

Part Number: CD74ACT00M96

Category: Integrated Circuits (ICs)

MFG: Texas Instruments

Package Cooled: 14SOIC

D/C: 08.09+

Description: IC QUAD 2IN POS-NOR GATE 14-DIP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

CD74ACT00M96 Parameters

Technical/Catalog Information	CD74ACT00M96
Vendor	Texas Instruments (VA)
Category	Integrated Circuits (ICs)
Number of Circuits	4 - Quad
Package / Case	14-SOIC (3.9mm Width), 14-SOL
Logic Type	NAND Gate
Packaging	Cut Tape (CT)
Mounting Type	Surface Mount
Number of Inputs	2
Current - Output High, Low	24mA, 24mA
Supply Voltage	4.5 V ~ 5.5 V
Operating Temperature	-55°C ~ 125°C
Voltage - Supply	4.5 V ~ 5.5 V
Drawing Number	296; 4040047-3; D; 14
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CD74ACT00M96 CD74ACT00M96 296 14485 1 ND 296144851ND 296-14485-1

CD74ACT00M96 General Description

Quad 2-Input NOR Gates

CD74ACT00M96 Features

Inputs Are TTL-Voltage Compatible
Speed of Bipolar F, AS, and S, With Significantly Reduced Power Consumption
Balanced Propagation Delays
±24-mA Output Drive Current
- Fanout to 15 F Devices
SCR-Latchup-Resistant CMOS Process and Circuit Design
Exceeds 2-kV ESD Protection Per MIL-STD-883, Method 3015

CD74ACT00M96 Typical Application

CD74ACT02 Datasheet

CD74ACT02 Parameters

CD74ACT02 Features

Inputs Are TTL-Voltage Compatible
Speed of Bipolar F, AS, and S, With Significantly Reduced Power Consumption
Balanced Propagation Delays
±24-mA Output Drive Current
- Fanout to 15 F Devices
SCR-Latchup-Resistant CMOS Process and Circuit Design
Exceeds 2-kV ESD Protection Per MIL-STD-883, Method 3015

CD74ACT02 General Description

Quad 2-Input NOR Gates

CD74ACT02 Maximum Ratings

DC Supply Voltage, V_CC . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to 6V
DC Input Diode Current, I_IK
For V_I < -0.5V or V_I > V_CC + 0.5V . . . . . . . . . . . . . . . . . . . .±20mA
DC Output Diode Current, I_OK
For V_O < -0.5V or V_O > V_CC + 0.5V . . . . . . . . . . . . . . . . . .. .±50mA
DC Output Source or Sink Current per Output Pin, I_O
For V_O> -0.5V or V_O < V_CC + 0.5V . . . . . . . . . . . . . . . . . . .±50mA
DC V_CC or Ground Current, I_CC or I_GND (Note 3) . . . . . . . .±100mA

CD74ACT02 Features

Inputs Are TTL-Voltage Compatible
Speed of Bipolar F, AS, and S, With Significantly Reduced Power Consumption
Balanced Propagation Delays
±24-mA Output Drive Current
- Fanout to 15 F Devices
SCR-Latchup-Resistant CMOS Process and Circuit Design
Exceeds 2-kV ESD Protection Per MIL-STD-883, Method 3015

CD74ACT02 Typical Application

CD74ACT02 Datasheet

CD74ACT02 Connection Diagram

CD74ACT02E Parameters

Technical/Catalog Information	CD74ACT02E
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Number of Circuits	4 - Quad
Package / Case	14-DIP (300 mil)
Logic Type	NOR Gate
Packaging	Tube
Mounting Type	Through Hole
Number of Inputs	2
Current - Output High, Low	24mA, 24mA
Supply Voltage	4.5 V ~ 5.5 V
Operating Temperature	-55°C ~ 125°C
Voltage - Supply	4.5 V ~ 5.5 V
Drawing Number	296; 4040049; N; 14, 16, 18, 20
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CD74ACT02E CD74ACT02E
