CD74ACT02M, CD74ACT02M96, CD74ACT04E

Table of contents:
Info of CD74ACT02M
Info of CD74ACT02M96
Info of CD74ACT04E

CD74ACT02M, CD74ACT02M96, CD74ACT04E Selling Leads, Datasheet

MFG:Texas Instruments Category:Integrated Circuits (ICs) Package Cooled:SOP-3.9 D/C:08.09+

CD74ACT02M, CD74ACT02M96, CD74ACT04E Datasheet download

Five Points

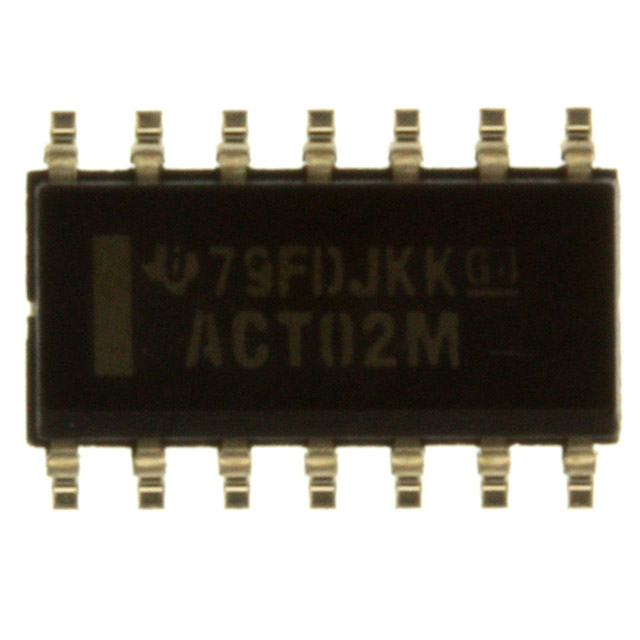

Part Number: CD74ACT02M

Category: Integrated Circuits (ICs)

MFG: Texas Instruments

Package Cooled: SOP-3.9

D/C: 08.09+

Description: IC HEX INVERTER 14-DIP

Price Break

1
25
100
250
500
1000
5000

Unit Price

.60000
.45000
.33750
.24900
.21000
.19950
.19125

Extended Price

0.60
11.25
33.75
62.25
105.00
199.50
956.25

(All prices are in USD) Prices for reference only

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

CD74ACT02M Parameters

Technical/Catalog Information	CD74ACT02M
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Number of Circuits	4 - Quad
Package / Case	14-SOIC (3.9mm Width), 14-SOL
Logic Type	NOR Gate
Packaging	Tube
Mounting Type	Surface Mount
Number of Inputs	2
Current - Output High, Low	24mA, 24mA
Supply Voltage	4.5 V ~ 5.5 V
Operating Temperature	-55°C ~ 125°C
Voltage - Supply	4.5 V ~ 5.5 V
Drawing Number	296; 4040047-3; D; 14
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CD74ACT02M CD74ACT02M 296 4251 5 ND 29642515ND 296-4251-5

CD74ACT02M96 Parameters

Technical/Catalog Information	CD74ACT02M96
Vendor	Texas Instruments (VA)
Category	Integrated Circuits (ICs)
Number of Circuits	4 - Quad
Package / Case	14-SOIC (3.9mm Width), 14-SOL
Logic Type	NOR Gate
Packaging	Digi-Reel?
Mounting Type	Surface Mount
Number of Inputs	2
Current - Output High, Low	24mA, 24mA
Supply Voltage	4.5 V ~ 5.5 V
Operating Temperature	-55°C ~ 125°C
Voltage - Supply	4.5 V ~ 5.5 V
Drawing Number	296; 4040047-3; D; 14
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CD74ACT02M96 CD74ACT02M96 296 14486 6 ND 296144866ND 296-14486-6

CD74ACT04E Parameters

Technical/Catalog Information	CD74ACT04E
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Number of Circuits	6 - Hex
Package / Case	14-DIP (300 mil)
Logic Type	Inverter
Packaging	Tube
Mounting Type	Through Hole
Number of Inputs	1
Current - Output High, Low	24mA, 24mA
Supply Voltage	4.5 V ~ 5.5 V
Operating Temperature	-55°C ~ 125°C
Voltage - Supply	4.5 V ~ 5.5 V
Drawing Number	296; 4040049; N; 14, 16, 18, 20
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CD74ACT04E CD74ACT04E 296 14487 5 ND 296144875ND 296-14487-5
