CEP-2242, CEP2500, CEP2645

Table of contents:
Info of CEP-2242
Info of CEP2500
Info of CEP2645

CEP-2242, CEP2500, CEP2645 Selling Leads, Datasheet

MFG:CUI Inc Category:Audio Products Package Cooled:4 D/C:07+

CEP-2242, CEP2500, CEP2645 Datasheet download

Five Points

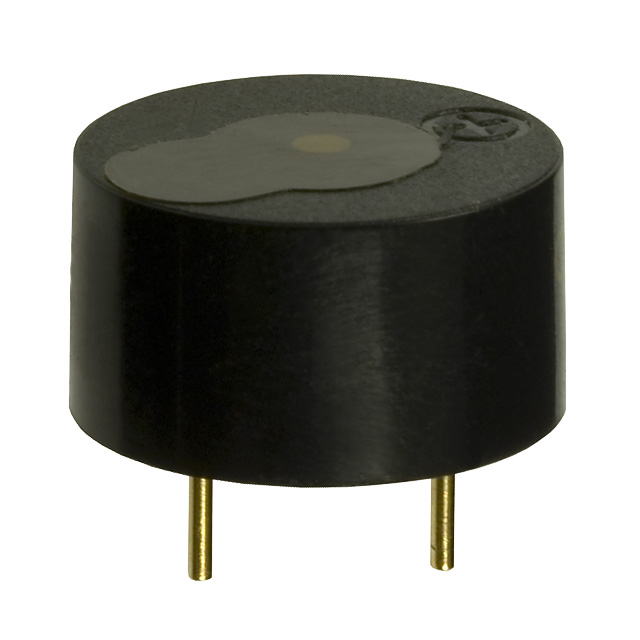

Part Number: CEP-2242

Category: Audio Products

MFG: CUI Inc

Package Cooled: 4

D/C: 07+

Description: BUZZER PIEZO 12VDC 13.7MM PCMNT

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

CEP-2242 Parameters

Technical/Catalog Information	CEP-2242
Vendor	CUI Inc
Category	Audio Products
Type	Piezo Indicator, Internal Drive
Sound Pressure Level	70dB
Mounting Type	Through Hole
Capacitance @ Frequency	-
Frequency	4.1kHz
Packaging	Bulk
Operating Mode	Continuous
Voltage Range	3 ~ 16VDC
Voltage - Rated	12VDC
Current Rating	7mA
Size / Dimension	Circular - 13.7mm Dia x 7.6mm H
Termination	Solder Pins/Posts
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CEP 2242 CEP2242 102 1115 ND 1021115ND 102-1115

CEP-2242 Maximum Ratings

resonant frequency: 4.1kHz ±0.5

operating voltage: 3-16 Vdc

current consumption: 7mA

sound pressure level: 70dB

rated voltage: 12 Vdc

operating temperature: -20 to +70°C

storage temperature: -30 to +80°C

diameter: 13.7 mm

depth: 7.6 mm

weight: 1.0 grams

termination: PC pins
