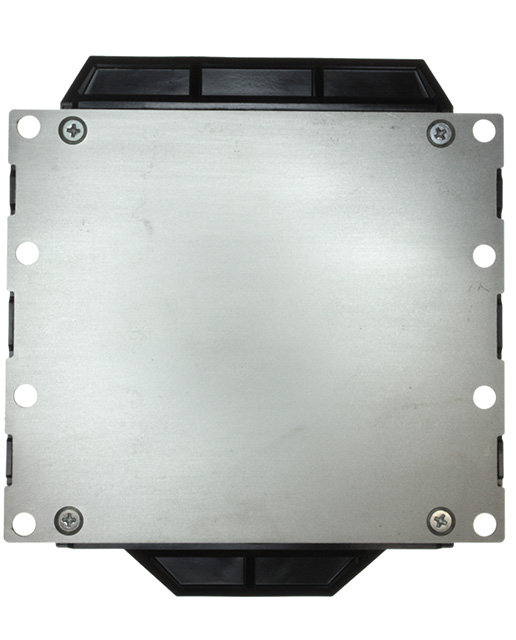

Part Number: CM1400DU-24NF

Category: Discrete Semiconductor Products

MFG: Powerex Inc

Package Cooled: IGBT

D/C: 2009

Description: IGBT MOD DUAL 1200V 1400A MEGA

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

CM1400DU-24NF Parameters

Technical/Catalog Information	CM1400DU-24NF
Vendor	Powerex Inc
Category	Discrete Semiconductor Products
Configuration	Half Bridge
Input	Standard
Voltage - Collector Emitter Breakdown (Max)	1200V
Current - Collector (Ic) (Max)	1400A
Power - Max	3900W
Vce(on) (Max) @ Vge, Ic	2.5V @ 15V, 1400A
Current - Collector Cutoff (Max)	1mA
NTC Thermistor	No
Input Capacitance (Cies) @ Vce	220nF @ 10V
Mounting Type	Chassis Mount
Package / Case	Module
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	CM1400DU 24NF CM1400DU24NF 835 1007 ND 8351007ND 835-1007

CM1400DU-24NF General Description

Powerex IGBTMOD™ Modules are designed for use in switching two IGBT applications. Each module consists of a half-bridge configuration, with each transistor having a reverse-connected super-fast recovery free-wheel diode. All components and inter- connects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management.

CM1400DU-24NF Features

Low Drive Power
Low VCE(sat)
Discrete Super-Fast Recovery Free-Wheel Diode
Isolated Baseplate for Easy Heat Sinking

CM1400DU-24NF Typical Application

High Power UPS
Large Motor Drives
Utility Interface Inverters
