MFG:Clare Category:Relays Package Cooled:SIP-4 D/C:09+
CPC1909J, CPC1916Y, CPC1926GX Datasheet download
Category: Relays
MFG: Clare
Package Cooled: SIP-4
D/C: 09+
Description: RELAY OPTOMOS SP-NO 2.5A 4-SIP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: CPC1008
File Size: 192512 KB
Manufacturer: CLARE [Clare, Inc.]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: CPC1008
File Size: 192512 KB
Manufacturer: CLARE [Clare, Inc.]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: CPC1008
File Size: 192512 KB
Manufacturer: CLARE [Clare, Inc.]
Download : Click here to Download
| Technical/Catalog Information | CPC1909J |
| Vendor | Clare |
| Category | Relays |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |

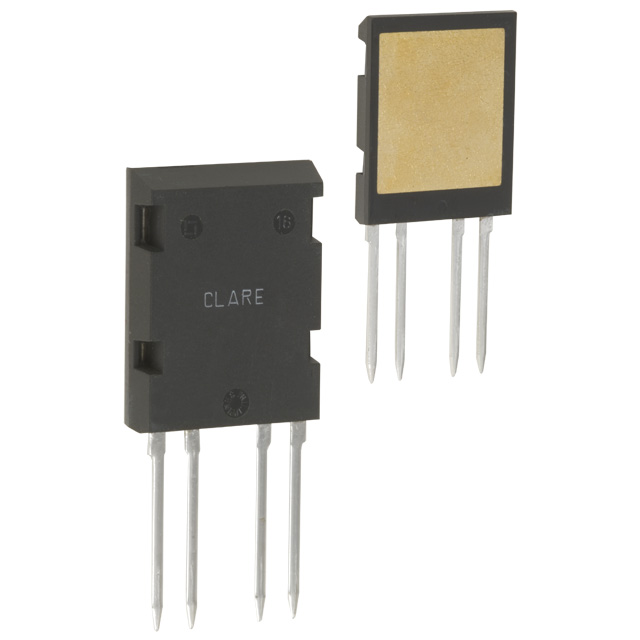

| Package / Case | ISOPLUS264? |
| Circuit | SPST-NO (1 Form A) |
| Load Current | 6.5A |
| Voltage - Input | 1.2VDC |
| Voltage - Load | 0 ~ 60V |
| Output Type | AC, DC |
| On-State Resistance | 100 mOhm |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | CPC1909J CPC1909J CLA281 ND CLA281ND CLA281 |
| Technical/Catalog Information | CPC1916Y |
| Vendor | Clare |
| Category | Relays |
| Mounting Type | Through Hole |
| Termination Style | PC Pin |
| Package / Case | 4-SIP |
| Circuit | SPST-NO (1 Form A) |
| Load Current | 2.5A |
| Voltage - Input | 1.2VDC |
| Voltage - Load | 0 ~ 100 V |
| Output Type | AC, DC |
| On-State Resistance | 340 mOhm |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | CPC1916Y CPC1916Y CLA209 ND CLA209ND CLA209 |
The CPC1916Y is one of the Power SIP Relay.
Clare and IXYS have brought OptoMOS® technology, reliability and compact size to a new family of high power solid state relays.The CPC1916Y is a part of that familya and is 1-Form-A solid state relay. The CPC1916Y uses optically coupled MOSFET technology to provide 2500Vrms of input to output isolation. While the input is controlled by a highly
efficient GaAlAs infrared LED, the efficient MOSFET switches and photovoltaic die use Clare's patented OptoMOS architecture. The low on resistance and high load current handling capabilities are combined ,and this makes the relay suitable for a variety of high performance switching applications.
There are nine Features of the CPC1916Y.The first of all is that it has Power SIP Package.The second is that it has Handle Load Currents Up to 2.5Arms.The third is that it has High Reliability.The forth is that it has No Moving Parts.The fifth is that it has Low Drive Power Requirements (TTL/CMOS Compatible).The sixth is that it has Arc-Free With No Snubbing Circuits.The seventh is that it has 2500Vrms Input/Output Isolation.The eighth is that it has No EMI/RFI Generation.The ninth is that it has Machine Insertable and Wave Solderable.
There are seven Applications of the CPC1916Y.The first of all is that it has Industrial Controls.The second is that it has Motor Control.The third is that it has Robotics.The forth is that it has Medical Equipment Patient/Equipment Isolation.The fifth is that it has Instrumentation,including Multiplexers,Data Acquisition, Electronic Switching,I/O Subsystems and Meters (Watt-Hour, Water, Gas).The sixth is that it has IC Equipment.The seventh is that it has Home Appliances.
