MFG:Cirrus Logic Inc Category:Integrated Circuits (ICs) Package Cooled:06+PBF D/C:2000
CS8900A-IQ3Z, CS8900A-IQZ, CS8900-CA Datasheet download
Category: Integrated Circuits (ICs)
MFG: Cirrus Logic Inc
Package Cooled: 06+PBF
D/C: 2000
Description: IC LAN ETHERNET CTLR 5V 100LQFP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: CS800-12IO1
File Size: 26382 KB
Manufacturer: IXYS [IXYS Corporation]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: CS800-12IO1
File Size: 26382 KB
Manufacturer: IXYS [IXYS Corporation]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: CS800-12IO1
File Size: 26382 KB
Manufacturer: IXYS [IXYS Corporation]
Download : Click here to Download
| Technical/Catalog Information | CS8900A-IQ3Z |
| Vendor | Cirrus Logic Inc |
| Category | Integrated Circuits (ICs) |
| Controller Type | Ethernet Controller (IEEE 802.3) |
| Interface | ISA-BUS |
| Voltage - Supply | 3V, 5V |
| Current - Supply | 95mA |
| Package / Case | 100-LQFP |
| Packaging | Tube |
| Operating Temperature | -40°C ~ 85°C |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | CS8900A IQ3Z CS8900AIQ3Z 598 1129 ND 5981129ND 598-1129 |

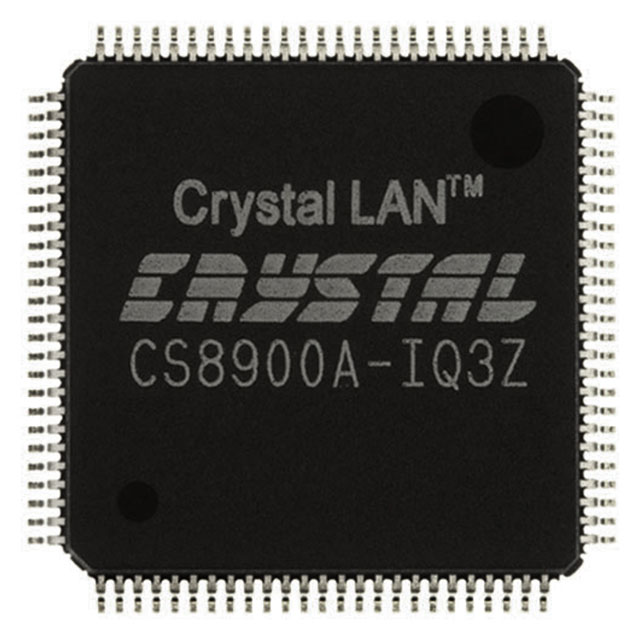

The CS8900A-IQ3Z is a low-cost Ethernet LAN Controller optimized for the Industry Standard Architecture (ISA) bus and general purpose microcontroller busses. Its highlyintegrated design eliminates the need for costly external components required by other Ethernet controllers. The CS8900A includes on-chip RAM, 10BASE-T transmit and receive filters, and a direct ISA-Bus interface with
24 mA Drivers.
Features of the CS8900A-IQ3Z are:(1) single-chip IEEE 802.3 ethernet controller with direct ISA-Bus interface;(2) maximum current consumption is 55 mA (5V supply);(3) 3 V or 5 V operation;(4) comprehensive suite of software drivers available;(5) efficient packetPage™ architecture operates in I/O and memory space, and as DMA slave;(6) full duplex operation;(7) on-chip RAM buffers transmit and receive frames.
The absolute maximum ratings of the CS8900A-IQ3Z can be summarized as:(1): input current (except supply pins)is±10.0 mA max;(2): analog input voltage is -0.3 V min and (AVDD+)+ 0.3 V max;(3): digital input voltage is -0.3 V min and (DVDD)+ 0.3 V max;(4): ambient temperature (power applied) is -55°C min and +125°C max; (5): storage temperature is -65°C min and +150°C max.
| Technical/Catalog Information | CS8900A-IQZ |
| Vendor | Cirrus Logic Inc |
| Category | Integrated Circuits (ICs) |
| Controller Type | Ethernet Controller (IEEE 802.3) |
| Interface | ISA-BUS |
| Voltage - Supply | 3V, 5V |
| Current - Supply | 95mA |
| Package / Case | 100-LQFP |
| Packaging | Tube |
| Operating Temperature | -40°C ~ 85°C |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | CS8900A IQZ CS8900AIQZ 598 1130 ND 5981130ND 598-1130 |
