CY8C22113, CY8C22113-24PI, CY8C22113-24SIT

Table of contents:
Info of CY8C22113
Info of CY8C22113-24PI
Info of CY8C22113-24SIT

CY8C22113, CY8C22113-24PI, CY8C22113-24SIT Selling Leads, Datasheet

MFG:Cypress Semiconductor Corp Category:Integrated Circuits (ICs) Package Cooled:QFP D/C:09+

CY8C22113, CY8C22113-24PI, CY8C22113-24SIT Datasheet download

Five Points

Part Number: CY8C22113-24PI

Category: Integrated Circuits (ICs)

MFG: Cypress Semiconductor Corp

Package Cooled: QFP

D/C: 09+

Description: IC MCU 2K FLASH 256B 8-SOIC

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

CY8C22113 Maximum Ratings

Symbol	Description	Min	Typ	Max	Units	Notes
T_STG	Storage Temperature	-65		+100		Higher storage temperatures will reduce data retention time.
T_A	Ambient Temperature with Power Applied	-40		+85
V_dd	Supply Voltage on Vdd Relative to Vss	-0.5		+6.0	V
V_IO	DC Input Voltage	V_ss-0.5		V_dd+0.5	V
	DC Voltage Applied to Tri-state	V_ss-0.5		V_dd+0.5	V
I_MIO	Maximum Current into any Port Pin	-25		+50	mA
I_MAIO	Maximum Current into any Port Pin Configured as Analog Driver	-50		+50	mA
	Static Discharge Voltage	2000			V
	Latch-up Current			200	mA

CY8C22113 Features

`Powerful Harvard Architecture Processor
M8C Processor Speeds to 24 MHz
Low Power at High Speed
3.0 to 5.25 V Operating Voltage
Industrial Temperature Range: 40°C to +85°C
`Advanced Peripherals (PSoC Blocks)
3 Rail-to-Rail Analog PSoC Blocks Provide:
Up to 14-Bit ADCs
Up to 8-Bit DACs
Programmable Gain Amplifiers
Programmable Filters and Comparators
4 Digital PSoC Blocks Provide:
8- to 32-Bit Timers, Counters and PWMs
CRC and PRS Modules
Full-Duplex UART
SPI Masters or Slaves
Connectable to all GPIO Pins
Complex Peripherals by Combining Blocks
`Flexible On-Chip Memory
2K Bytes Flash Program Storage 50,000 Erase/Write Cycles
256 Bytes SRAM Data Storage
In-System Serial Programming (ISSP)
Partial Flash Updates
Flexible Protection Modes
EEPROM Emulation in Flash
`Precision, Programmable Clocking
Internal ±2.5% 24/48 MHz Oscillator
High Accuracy 24 MHz with Optional 32 kHz Crystal and PLL
Optional External Oscillator, up to 24 MHz
Internal Oscillator for Watchdog and Sleep
`Programmable Pin Configurations
25 mA Drive on all GPIO
Pull up, Pull down, High Z, Strong, or Open Drain Drive Modes on all GPIO
Up to 8 Analog Inputs on GPIO
One 30 mA Analog Output on GPIO
Configurable Interrupt on all GPIO
`Additional System Resources
I²C Slave, Master, and Multi-Master to 400 kHz
Watchdog and Sleep Timers
User-Configurable Low Voltage Detection
Integrated Supervisory Circuit
On-Chip Precision Voltage Reference
`Complete Development Tools
Free Development Software (PSoC Designer)
Full-Featured, In-Circuit Emulator and Programmer: Full-Speed Emulation Complex Breakpoint Structure 128K Bytes Trace Memory

CY8C22113 Connection Diagram

CY8C22113-24PI Parameters

Technical/Catalog Information	CY8C22113-24PI
Vendor	Cypress Semiconductor Corp
Category	Integrated Circuits (ICs)
Program Memory Size	2K x 8
RAM Size	256 x 8
Number of I /O	6

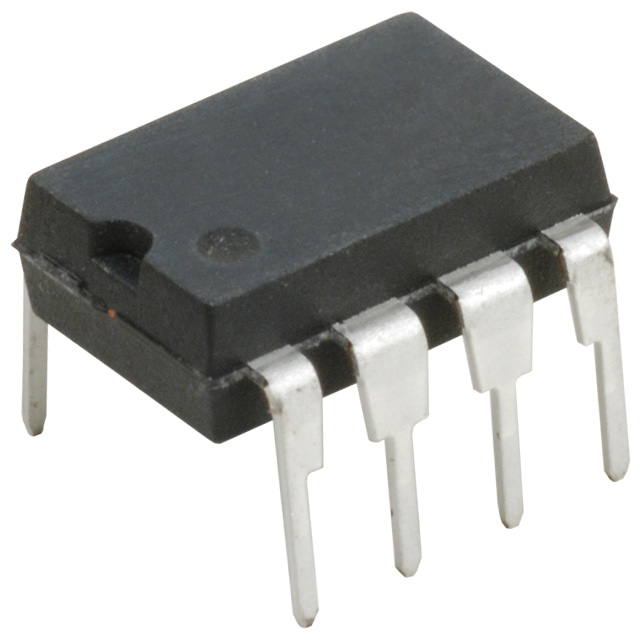

Package / Case	8-DIP
Speed	24MHz
Controller Series	CY8C22xxx
Oscillator Type	Internal
Packaging	Tube
Program Memory Type	FLASH
EEPROM Size	-
Core Processor	M8C
Data Converters	A/D 2x14b; D/A 1x9b
Core Size	8-Bit
Operating Temperature	-40°C ~ 85°C
Connectivity	I²C, SPI, UART/USART
Peripherals	LVD, POR, PWM, WDT
Voltage - Supply (Vcc/Vdd)	3 V ~ 5.25 V
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	CY8C22113 24PI CY8C2211324PI 428 1544 5 ND 42815445ND 428-1544-5

CY8C22113-24SIT Parameters

Technical/Catalog Information	CY8C22113-24SIT
Vendor	Cypress Semiconductor Corp
Category	Integrated Circuits (ICs)
Program Memory Size	2K x 8
RAM Size	256 x 8
Number of I /O	6
Package / Case	8-SOIC
Speed	24MHz
Controller Series	CY8C22xxx
Oscillator Type	Internal
Packaging	Tape & Reel (TR)
Program Memory Type	FLASH
EEPROM Size	-
Core Processor	M8C
Data Converters	A/D 2x14b; D/A 1x9b
Core Size	8-Bit
Operating Temperature	-40°C ~ 85°C
Connectivity	I²C, SPI, UART/USART
Peripherals	LVD, POR, PWM, WDT
Voltage - Supply (Vcc/Vdd)	3 V ~ 5.25 V
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	CY8C22113 24SIT CY8C2211324SIT
