CY8C29566, CY8C29566-24AXIT, CY8C29666

Table of contents:
Info of CY8C29566
Info of CY8C29566-24AXIT
Info of CY8C29666

CY8C29566, CY8C29566-24AXIT, CY8C29666 Selling Leads, Datasheet

MFG:Cypress Semiconductor Corp Category:Integrated Circuits (ICs) Package Cooled:N/A D/C:09+

CY8C29566, CY8C29566-24AXIT, CY8C29666 Datasheet download

Five Points

Part Number: CY8C29566-24AXIT

Category: Integrated Circuits (ICs)

MFG: Cypress Semiconductor Corp

Package Cooled: N/A

D/C: 09+

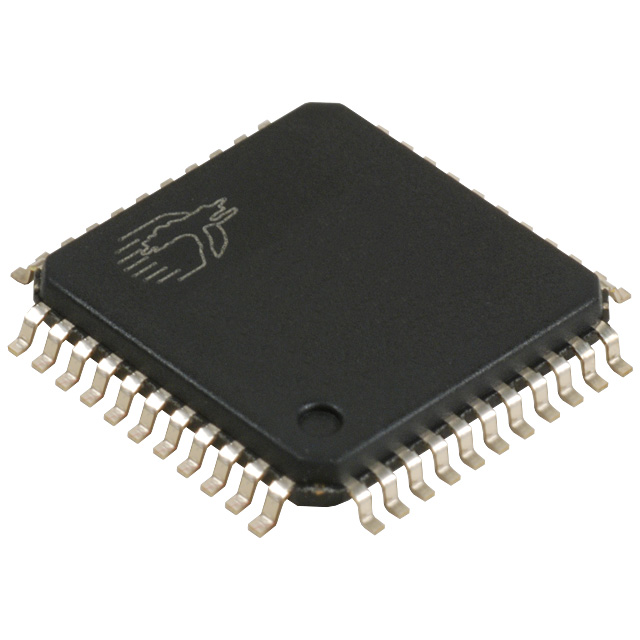

Description: IC MCU 32K FLASH 2K SRAM 44-TQFP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

CY8C29566 Maximum Ratings

Symbol	Absolute Maximum Ratings	Min	Typical	Max	Unit	Notes
TSTG	Storage Temperature	-55	-	+100		Higher storage temperatures will reduce data retention time.
TA	Ambient Temperature with Power Applied	-40	-	+85
Vdd	Supply Voltage on Vcc Relative to Vss	-0.5	-	+6.0	V
VIO	DC Input Voltage	V_ss-0.5	-	V_cc+0.5	V
	DC Voltage Applied to Tri-state	V_ss-0.5	-	V_cc+0.5	V
IMIO	Maximum Current into any Port Pin	-25	-	+50	mA
IMAIO	Maximum Current into any Port Pin Configured as Analog Driver	-50	-	+50	mA
IMAIO	Electro Static Discharge Voltage	2000	-	-		Human Body Model ESD
	Latch-up Current	-	-	200

CY8C29566 Features

·Powerful Harvard Architecture Processor
·M8C Processor Speeds to 24 MHz
·Two 8x8 Multiply, 32-Bit Accumulate
·Low Power at High Speed
·3.0V to 5.25V Operating Voltage
·Operating Voltages Down to 1.0V Using On-Chip Switch Mode Pump (SMP)
·Industrial Temperature Range: -40°C to +85°C
·Advanced Peripherals (PSoC Blocks)
·12 Rail-to-Rail Analog PSoC Blocks Provide:
- Up to 14-Bit ADCs
- Up to 9-Bit DACs
- Programmable Gain Amplifiers
- Programmable Filters and Comparators
·16 Digital PSoC Blocks Provide:
- 8- to 32-Bit Timers, Counters, and PWMs
- CRC and PRS Modules
- Up to 4 Full-Duplex UARTs
- Multiple SPI™ Masters or Slaves
- Connectable to all GPIO Pins
·Complex Peripherals by Combining Blocks
·Precision, Programmable Clocking
·Internal ±2.5% 24/48 MHz Oscillator
·24/48 MHz with Optional 32.768 kHz Crystal
·Optional External Oscillator, up to 24 MHz
·Internal Oscillator for Watchdog and Sleep
·Flexible On-Chip Memory
·32K Bytes Flash Program Storage 50,000 rase/Write Cycles
·2K Bytes SRAM Data Storage
·In-System Serial Programming (ISSP™)
·Partial Flash Updates
·Flexible Protection Modes
·EEPROM Emulation in Flash
·Programmable Pin Configurations
·25 mA Sink on all GPIO
·Pull up, Pull down, High Z, Strong, or Open Dain Drive Modes on all GPIO
·Up to 12 Analog Inputs on GPIO
·Four 40 mA Analog Outputs on GPIO
·Configurable Interrupt on all GPIO
·Additional System Resources
·I²C™ Slave, Master, and Multi-Master to 400kHz
·Watchdog and Sleep Timers
·User-Configurable Low Voltage Detection
·Integrated Supervisory Circuit
·On-Chip Precision Voltage Reference
·Complete Development Tools
·Free Development Software(PSoC™ Designer)
·Full-Featured, In-Circuit Emulator and Pogrammer
·Full Speed Emulation
·Complex Breakpoint Structure
·128K Bytes Trace Memory
·Complex Events
·C Compilers, Assembler, and Linker

CY8C29566 Connection Diagram

CY8C29566-24AXIT Parameters

Technical/Catalog Information	CY8C29566-24AXIT
Vendor	Cypress Semiconductor Corp
Category	Integrated Circuits (ICs)
Program Memory Size	32K x 8
RAM Size	2K x 8
Number of I /O	40
Package / Case	44-TQFP
Speed	24MHz
Controller Series	CY8C29xxx
Oscillator Type	Internal
Packaging	Tape & Reel (TR)
Program Memory Type	FLASH
EEPROM Size	-
Core Processor	M8C
Data Converters	A/D 4x14b; D/A 4x9b
Core Size	8-Bit
Operating Temperature	-40°C ~ 85°C
Connectivity	I²C, SPI, UART/USART
Peripherals	POR, PWM, WDT
Voltage - Supply (Vcc/Vdd)	3 V ~ 5.25 V
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	CY8C29566 24AXIT CY8C2956624AXIT

CY8C29666 Maximum Ratings

Symbol	Absolute Maximum Ratings	Min	Typical	Max	Unit	Notes
TSTG	Storage Temperature	-55	-	+100		Higher storage temperatures will reduce data retention time.
TA	Ambient Temperature with Power Applied	-40	-	+85
Vdd	Supply Voltage on Vcc Relative to Vss	-0.5	-	+6.0	V
VIO	DC Input Voltage	V_ss-0.5	-	V_cc+0.5	V
	DC Voltage Applied to Tri-state	V_ss-0.5	-	V_cc+0.5	V
IMIO	Maximum Current into any Port Pin	-25	-	+50	mA
IMAIO	Maximum Current into any Port Pin Configured as Analog Driver	-50	-	+50	mA
IMAIO	Electro Static Discharge Voltage	2000	-	-		Human Body Model ESD
	Latch-up Current	-	-	200

CY8C29666 Features

CY8C29666 Connection Diagram
