DS5002FM-16, DS5002FMN-16, DS5002FP

Table of contents:
Info of DS5002FM-16
Info of DS5002FMN-16
Info of DS5002FP

DS5002FM-16, DS5002FMN-16, DS5002FP Selling Leads, Datasheet

MFG:Maxim Integrated Products Category:Integrated Circuits (ICs) Package Cooled:2005+ D/C:1255

DS5002FM-16, DS5002FMN-16, DS5002FP Datasheet download

Five Points

Part Number: DS5002FMN-16

Category: Integrated Circuits (ICs)

MFG: Maxim Integrated Products

Package Cooled: 2005+

D/C: 1255

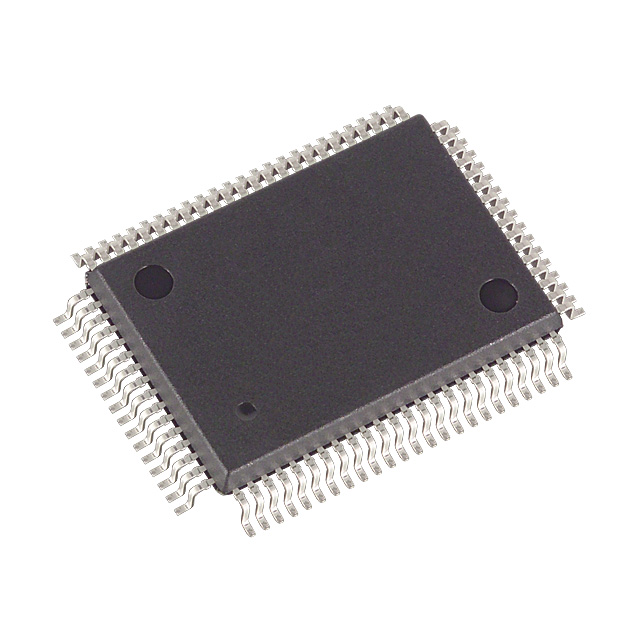

Description: IC MPU SECURE 16MHZ IND 80-TQFP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

DS5002FM-16 Parameters

DS5002FP Features

8051-compatible microprocessor for secure/sensitive applications

Access 32kB, 64kB, or 128kB of NV SRAM for program and/or data storage

In-system programming through on-chip serial port

Capable of modifying its own program or data memory in the end system

Firmware security features

Memory stored in encrypted form

Encryption using on-chip 64-bit key

Automatic true random key generator

Self destruct input (SDI)

Optional top coating prevents microprobe (DS5002FPM)

Improved security over previous generations

Protects memory contents from piracy

Crash-proof operation

Maintains all nonvolatile resources for over 10 years in the absence of power

Power-fail reset

Early warning power-fail interrupt

Watchdog timer

DS5002FM-16 General Description

Secure Microprocessor Chip

DS5002FM-16 Features

8051-compatible microprocessor for secure/sensitive applications

Access 32kB, 64kB, or 128kB of NV SRAM for program and/or data storage

In-system programming through on-chip serial port

Capable of modifying its own program or data memory in the end system

Firmware security features

Memory stored in encrypted form

Encryption using on-chip 64-bit key

Automatic true random key generator

Self destruct input (SDI)

Optional top coating prevents microprobe (DS5002FPM)

Improved security over previous generations

Protects memory contents from piracy

Crash-proof operation

Maintains all nonvolatile resources for over 10 years in the absence of power

Power-fail reset

Early warning power-fail interrupt

Watchdog timer

DS5002FM-16 Typical Application

DS5002FP Datasheet

DS5002FMN-16 Parameters

Technical/Catalog Information	DS5002FMN-16
Vendor	Maxim Integrated Products
Category	Integrated Circuits (ICs)
Program Memory Size	-
RAM Size	128 x 8
Number of I /O	32
Package / Case	80-MQFP
Speed	16MHz
Controller Series	DS500x
Oscillator Type	Internal
Packaging	Tray
Program Memory Type	SRAM
EEPROM Size	-
Core Processor	8051
Data Converters	-
Core Size	8-Bit
Operating Temperature	-40°C ~ 85°C
Connectivity	SIO, UART/USART
Peripherals	Power-Fail Reset, WDT
Voltage - Supply (Vcc/Vdd)	4.5 V ~ 5.5 V
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	DS5002FMN 16 DS5002FMN16

DS5002FP Parameters

DS5002FP Features

8051-compatible microprocessor for secure/sensitive applications

Access 32kB, 64kB, or 128kB of NV SRAM for program and/or data storage

In-system programming through on-chip serial port

Capable of modifying its own program or data memory in the end system

Firmware security features

Memory stored in encrypted form

Encryption using on-chip 64-bit key

Automatic true random key generator

Self destruct input (SDI)

Optional top coating prevents microprobe (DS5002FPM)

Improved security over previous generations

Protects memory contents from piracy

Crash-proof operation

Maintains all nonvolatile resources for over 10 years in the absence of power

Power-fail reset

Early warning power-fail interrupt

Watchdog timer

DS5002FP General Description

Secure Microprocessor Chip

DS5002FP Maximum Ratings

Voltage Range on Any Pin Relative to Ground                                                 -0.3V to (VCC + 0.5V)
Voltage Range on VCC Relative to Ground                                                                 -0.3V to +6.0V
Operating Temperature Range                                                                                 -40C to +85
Storage Temperature*                                                                                            -55 to +125
Soldering Temperature                                                                           See IPC/JEDEC J-STD-020A

DS5002FP Features

8051-compatible microprocessor for secure/sensitive applications

Access 32kB, 64kB, or 128kB of NV SRAM for program and/or data storage

In-system programming through on-chip serial port

Capable of modifying its own program or data memory in the end system

Firmware security features

Memory stored in encrypted form

Encryption using on-chip 64-bit key

Automatic true random key generator

Self destruct input (SDI)

Optional top coating prevents microprobe (DS5002FPM)

Improved security over previous generations

Protects memory contents from piracy

Crash-proof operation

Maintains all nonvolatile resources for over 10 years in the absence of power

Power-fail reset

Early warning power-fail interrupt

Watchdog timer

DS5002FP Typical Application

DS5002FP Datasheet

DS5002FP Connection Diagram
