MFG:Rohm Semiconductor Category:Discrete Semiconductor Products Package Cooled:SOT23 D/C:2300
DTC114EET1, DTC114EET1G, DTC114EETL Datasheet download
Category: Discrete Semiconductor Products
MFG: Rohm Semiconductor
Package Cooled: SOT23
D/C: 2300
Description: TRANS NPN 50V 50MA SOT-416
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: DTC114EET1
File Size: 105383 KB
Manufacturer: ONSEMI [ON Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: DTC114EET1G
File Size: 192167 KB
Manufacturer: ONSEMI [ON Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: DTC10C-N
File Size: 104096 KB
Manufacturer: SANYO [Sanyo Semicon Device]
Download : Click here to Download
|
Rating |
Symbol |
Value |
Unit |
|
Collector-Base Voltage |
VCBO |
50 |
Vdc |
|
Collector-Emitter Voltage |
VCEO |
50 |
Vdc |
|
Collector Current |
IC |
100 |
mAdc |
| Technical/Catalog Information | DTC114EET1G |
| Vendor | ON Semiconductor |
| Category | Discrete Semiconductor Products |
| Transistor Type | NPN - Pre-Biased |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Current - Collector (Ic) (Max) | 100mA |
| Power - Max | 600mW |
| Resistor - Base (R1) (Ohms) | 10K |
| Resistor - Emitter Base (R2) (Ohms) | 10K |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 300A, 10mA |
| Current - Collector Cutoff (Max) | 500nA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 35 @ 5mA, 10V |
| Frequency - Transition | - |
| Mounting Type | Surface Mount |

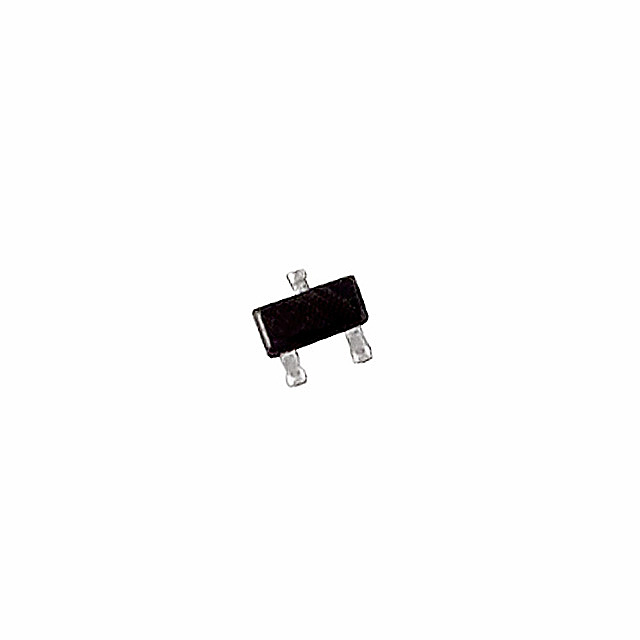

| Package / Case | SC-75-3, SOT-416, EMT3 |
| Packaging | Tape & Reel (TR) |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | DTC114EET1G DTC114EET1G DTC114EET1GOSTR ND DTC114EET1GOSTRND DTC114EET1GOSTR |
| Technical/Catalog Information | DTC114EETL |
| Vendor | Rohm Semiconductor |
| Category | Discrete Semiconductor Products |
| Transistor Type | NPN - Pre-Biased |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Current - Collector (Ic) (Max) | 50mA |
| Power - Max | 150mW |
| Resistor - Base (R1) (Ohms) | 10K |
| Resistor - Emitter Base (R2) (Ohms) | 1K |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 500A, 10mA |
| Current - Collector Cutoff (Max) | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 5mA, 5V |
| Frequency - Transition | 250MHz |
| Mounting Type | Surface Mount |
| Package / Case | SC-75-3, SOT-416, EMT3 |
| Packaging | Tape & Reel (TR) |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | DTC114EETL DTC114EETL DTC114EETLTR ND DTC114EETLTRND DTC114EETLTR |
