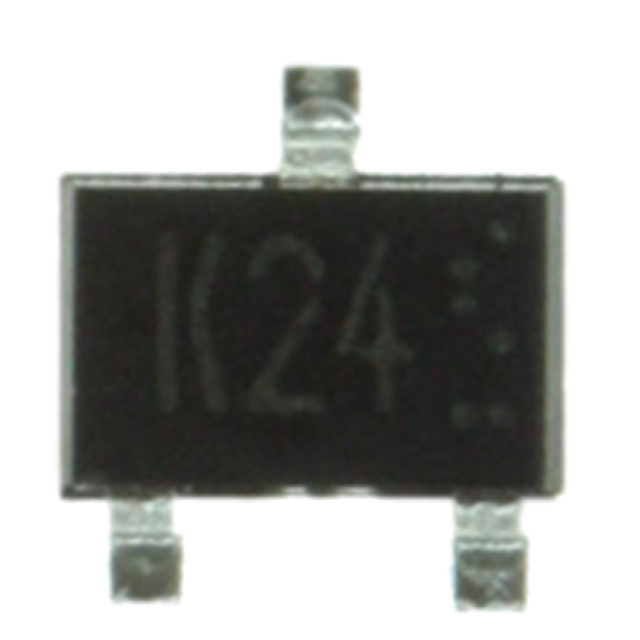

MFG:Rohm Semiconductor(VA) Category:Discrete Semiconductor Products Package Cooled:SOT-323 D/C:75,000
DTC114GUAT106, DTC114NPN150MWEMT3CXI2005, DTC114TCA Datasheet download
Category: Discrete Semiconductor Products
MFG: Rohm Semiconductor(VA)
Package Cooled: SOT-323
D/C: 75,000
Description: TRANS NPN 50V 100MA SOT-323
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: DTC10C-N
File Size: 104096 KB
Manufacturer: SANYO [Sanyo Semicon Device]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: DTC10C-N
File Size: 104096 KB
Manufacturer: SANYO [Sanyo Semicon Device]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: DTC114TCA
File Size: 59817 KB
Manufacturer:
Download : Click here to Download
| Technical/Catalog Information | DTC114GUAT106 |
| Vendor | Rohm Semiconductor(VA) |
| Category | Discrete Semiconductor Products |
| Transistor Type | NPN - Pre-Biased |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Current - Collector (Ic) (Max) | 100mA |
| Power - Max | 200mW |
| Resistor - Base (R1) (Ohms) | 10K |
| Resistor - Emitter Base (R2) (Ohms) | - |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 500A, 10mA |
| Current - Collector Cutoff (Max) | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 5mA, 5V |
| Frequency - Transition | 250MHz |
| Mounting Type | Surface Mount |
| Package / Case | SC-70-3, SOT-323-3 |
| Packaging | Digi-Reel? |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | DTC114GUAT106 DTC114GUAT106 DTC114GUAT106DKR ND DTC114GUAT106DKRND DTC114GUAT106DKR |
| Parameter | Symbol | Limits(DTC124T ) | Unit | ||||
| H | UA | KA | CA | SA | |||
| Collector-base voltage | VCBO | 50 |
V | ||||
|
Collector-emitter voltag |
VCEO VEBO IC |
50 5 100 |
V V mA | ||||
| Collector power dissipation | Pc | 150 | 200 | 300 | mW | ||
| Junction temperature | Tj | 150 | |||||
| Storage temperature | Tstg | -55 ~ +150 | |||||
1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit).
2) The bias resistors consist of thin-film resistors with complete isola-tion to allow negative biasing of the input. They also have the advan-tage of almost completely eliminat-ing parasitic effects.
3) Only the on/off conditions need to be set for operation, making device design easy.
