MFG:Rohm Semiconductor(VA) Category:Discrete Semiconductor Products Package Cooled:SOT-23 D/C:2008

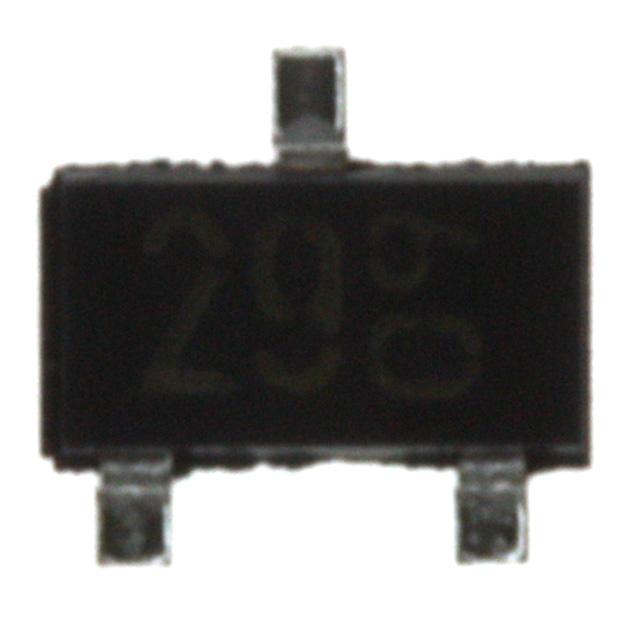

DTC115EKA/29, DTC115EKAT146, DTC115EM Datasheet download
Category: Discrete Semiconductor Products
MFG: Rohm Semiconductor(VA)
Package Cooled: SOT-23
D/C: 2008
Description: TRAN DIGIT NPN 50V 100MA SOT-346
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: DTC10C-N
File Size: 104096 KB
Manufacturer: SANYO [Sanyo Semicon Device]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: DTC10C-N
File Size: 104096 KB
Manufacturer: SANYO [Sanyo Semicon Device]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: DTC115EM
File Size: 54396 KB
Manufacturer: ROHM
Download : Click here to Download
| Technical/Catalog Information | DTC115EKAT146 |
| Vendor | Rohm Semiconductor(VA) |
| Category | Discrete Semiconductor Products |
| Transistor Type | NPN - Pre-Biased |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Current - Collector (Ic) (Max) | 100mA |
| Power - Max | 200mW |
| Resistor - Base (R1) (Ohms) | 100K |
| Resistor - Emitter Base (R2) (Ohms) | 100K |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 250A, 5mA |
| Current - Collector Cutoff (Max) | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 82 @ 5mA, 5V |
| Frequency - Transition | 250MHz |
| Mounting Type | Surface Mount |
| Package / Case | SC-59-3, SMT3, SOT-346, TO-236 |
| Packaging | Digi-Reel? |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | DTC115EKAT146 DTC115EKAT146 DTC115EKAT146DKR ND DTC115EKAT146DKRND DTC115EKAT146DKR |
|
Parameter |
Symbol |
Limits |
Unit | |
| Supply voltage |
VCC |
50 |
V | |
| Input voltage |
VI |
−10~+40 |
V | |
| Output current |
IO |
20 |
mA | |
|
IC(Max.) |
100 | |||
| Power dissipation |
DTC115EM / DTC115EE |
Pd |
150 |
mW |
| DTC115EUA / DTC115EKA |
200 | |||
| DTC115ESA |
300 | |||
| Junction temperature |
Tj |
150 |
°C | |
| Storage temperature |
Tstg |
−55~+150 |
°C | |
1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see the equivalent circuit).
2) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input, and parasitic effects are almost completely eliminated.
3) Only the on/off conditions need to be set for operation, making device design easy.
4) Higher mounting densities can be achieved.
