MFG:Rohm Semiconductor Category:Discrete Semiconductor Products Package Cooled:SOT-23 D/C:09+

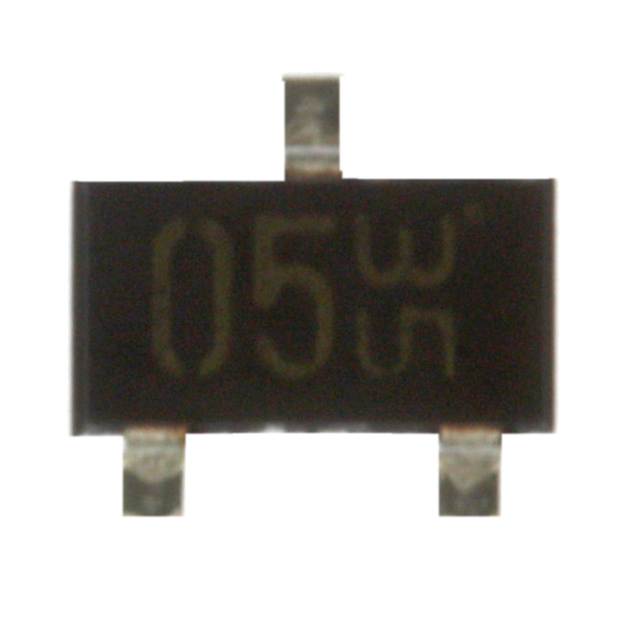

DTC124TKA/05, DTC124TKAT146, DTC124TM Datasheet download
Category: Discrete Semiconductor Products
MFG: Rohm Semiconductor
Package Cooled: SOT-23
D/C: 09+
Description: TRANS NPN 50V 100MA SOT-346
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: DTC10C-N
File Size: 104096 KB
Manufacturer: SANYO [Sanyo Semicon Device]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: DTC10C-N
File Size: 104096 KB
Manufacturer: SANYO [Sanyo Semicon Device]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: DTC124TM
File Size: 54396 KB
Manufacturer: ROHM
Download : Click here to Download
| Technical/Catalog Information | DTC124TKAT146 |
| Vendor | Rohm Semiconductor |
| Category | Discrete Semiconductor Products |
| Transistor Type | NPN - Pre-Biased |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Current - Collector (Ic) (Max) | 100mA |
| Power - Max | 200mW |
| Resistor - Base (R1) (Ohms) | 22K |
| Resistor - Emitter Base (R2) (Ohms) | - |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 500A, 5mA |
| Current - Collector Cutoff (Max) | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 1mA, 5V |
| Frequency - Transition | 250MHz |
| Mounting Type | Surface Mount |
| Package / Case | SC-59-3, SMT3, SOT-346, TO-236 |
| Packaging | Tape & Reel (TR) |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | DTC124TKAT146 DTC124TKAT146 DTC124TKAT146TR ND DTC124TKAT146TRND DTC124TKAT146TR |
The DTC124TM has 3 features.The first one is Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit).The second one is The bias resistors consist of thin-film resistors with complete of the input. They also have the advantage of almost completely eliminating parasitic effects.The last one is Only the on/off conditions need to be set for operation,making device design easy.
The DTC124TM has some absolute maximum ratings(Ta=25).When parameter is Collector-base voltage,the symbol is VCBO,the limits is 50,the unit is V.When parameter is Collector-emitter voltage,the symbol is VCEO,the limits is 50,the unit is V.When parameter is Emitter-base voltage,the symbol is VEBO,the limits is 5,the unit is V.When parameter is Collector current,the symbol is Ic,the limits is 100,the unit is mA.When parameter is Collector power dissipation,the symbol is Pc,the limits is 150,the unit is mW/total.When parameter is junction temperature,the symbol is Tj,the limits is 150,the unit is .When parameter is storage temperature,the symbol is Tstg,the limits is -55 to +150,the unit is .
The products listed in this document are designed to be used with ordinary electronic equipment or devices (such as audio visual equipment, office-automation equipment, communications devices, electrical appliances and electronic toys).Should you intend to use these products with equipment or devices which require an extremely high level of reliability and the malfunction of with would directly endanger human life (such as medical instruments,transportation equipment, aerospace machinery, nuclear-reactor controllers, fuel controllers and other safety devices), please be sure to consult with our sales representative in advance.
