EL8201, EL82010, EL8201IS

Table of contents:
Info of EL8201
Info of EL82010
Info of EL8201IS

EL8201, EL82010, EL8201IS Selling Leads, Datasheet

MFG:Intersil Category:Integrated Circuits (ICs) Package Cooled:EL D/C:08+

EL8201, EL82010, EL8201IS Datasheet download

Five Points

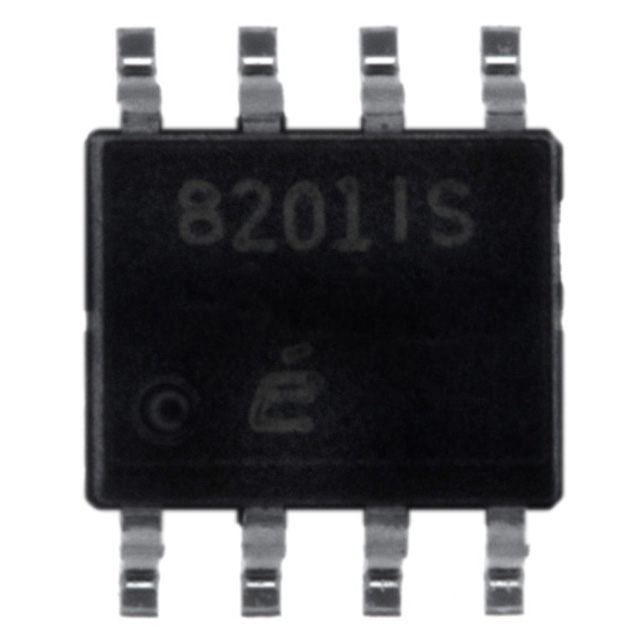

Part Number: EL8201IS

Category: Integrated Circuits (ICs)

MFG: Intersil

Package Cooled: EL

D/C: 08+

Description: IC OP AMP 200MHZ R-R 8-SOIC

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

EL8201 Parameters

EL8201 Features

200MHz -3dB bandwidth
200V/�s slew rate
Low supply current = 2mA per channel
Supplies from 3V to 5.5V
Rail-to-rail output
Input to 0.15V below V_S-
Fast 25ns disable (EL8200 only)
Low cost
Pb-free available

EL8201 General Description

Op Amp, Dual, 200MHz, Rail-to-Rail

EL8201 Maximum Ratings

Supply Voltage from VS+ to VS- . . . . . . . . . . . . . . . . . . . . . . . . 5.5V
Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . VS+ +0.3V to VS- -0.3V
Differential Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2V
Continuous Output Current . . . . . . . . . . . . . . . . . . . . . . . . . . . 40mA
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Curves
Storage Temperature. . . . . . . . . . . . . . . . . . . . . . -65°C to +150°C
Ambient Operating Temperature . . . . . . . . . . . . . . -40°C to +85°C
Operating Junction Temperature. . . . . . . . . . . . . . . . . . . . . .+125°C

CAUTION: Stresses above those listed in "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress only rating and operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied.

EL8201 Features

200MHz -3dB bandwidth
200V/�s slew rate
Low supply current = 2mA per channel
Supplies from 3V to 5.5V
Rail-to-rail output
Input to 0.15V below V_S-
Fast 25ns disable (EL8200 only)
Low cost
Pb-free available

EL8201 Typical Application

EL8201 Datasheet

EL8201IS Parameters

Technical/Catalog Information	EL8201IS
Vendor	Intersil
Category	Integrated Circuits (ICs)
Packaging	Tube
Amplifier Type	Voltage Feedback
Number of Circuits	2 - Dual
Package / Case	8-SOIC
Slew Rate	200 V/s
Gain Bandwidth Product	100MHz
Current - Supply	2mA
Current - Output / Channel	65mA
Voltage - Supply, Single/Dual (±)	3 V ~ 5 V, ±1.5 V ~ 2.5 V
Output Type	Rail-to-Rail
-3db Bandwidth	200MHz
Current - Input Bias	1.6A
Operating Temperature	-40°C ~ 85°C
Voltage - Input Offset	800V
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	EL8201IS EL8201IS
