MFG:Rohm Semiconductor Category:Discrete Semiconductor Products Package Cooled:SOT-463 D/C:08+

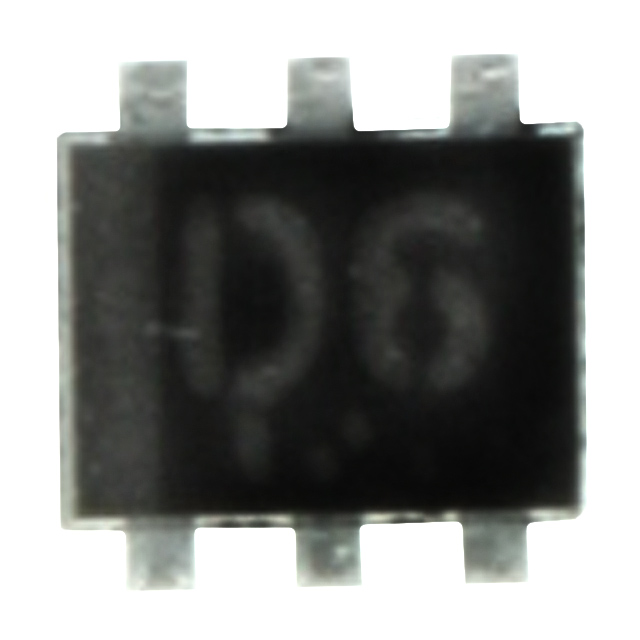

EMD5, EMD6, EMD6T2R Datasheet download
Category: Discrete Semiconductor Products
MFG: Rohm Semiconductor
Package Cooled: SOT-463
D/C: 08+
Description: TRANS PNP/NPN 50V 100MA EMT6
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: EMD5
File Size: 101973 KB
Manufacturer: ROHM
Download : Click here to Download
PDF/DataSheet Download
Datasheet: EMD6
File Size: 68257 KB
Manufacturer: ROHM [Rohm]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: EMD12
File Size: 55816 KB
Manufacturer: ROHM [Rohm]
Download : Click here to Download
|
Parameter |
Symbol |
Limits |
Unit | |
|
DTr1(DTC144E) |
DTr2(DTC143X) | |||
| Supply voltage |
VCC |
50 |
-50 |
V |
| Input voltage |
VIN |
−10 to +40 |
−20 to +7 |
V |
| Output current |
IO |
30 |
-100 |
A |
|
IC(Max.) |
100 |
-100 |
A | |
| Power dissipation |
Pd |
150(TOTAL) |
120(1ELEMENT) |
W |
| Junction temperature |
Tj |
150 |
||
| Storage temperature |
Tstg |
−55 to +150 |
||
|
Parameter |
Symbol |
Limits |
Unit | |
| Collector-base voltage |
VCBO |
50 |
V | |
| Collector-emitter voltage |
VCEO |
50 |
V | |
| Emitter-base voltage |
VEBO |
5 |
V | |
| Collector current |
IC |
100 |
mA | |
| Collector power dissipation |
EMD6, UMD6N |
PC |
150(TOTAL) |
mW |
| IMD6A |
300(TOTAL) | |||
| Junction temperature |
Tj |
150 |
°C | |
| Storage temperature |
Tstg |
-55~+150 |
°C | |
| Technical/Catalog Information | EMD6T2R |
| Vendor | Rohm Semiconductor |
| Category | Discrete Semiconductor Products |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Current - Collector (Ic) (Max) | 100mA |
| Power - Max | 150mW |
| Resistor - Base (R1) (Ohms) | 4.7K |
| Resistor - Emitter Base (R2) (Ohms) | - |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 250A, 5mA |
| Current - Collector Cutoff (Max) | - |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 1mA, 5V |
| Frequency - Transition | 250MHz |
| Mounting Type | Surface Mount |
| Package / Case | EMT6 |
| Packaging | Tape & Reel (TR) |
| Drawing Number | * |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | EMD6T2R EMD6T2R EMD6T2RTR ND EMD6T2RTRND EMD6T2RTR |
