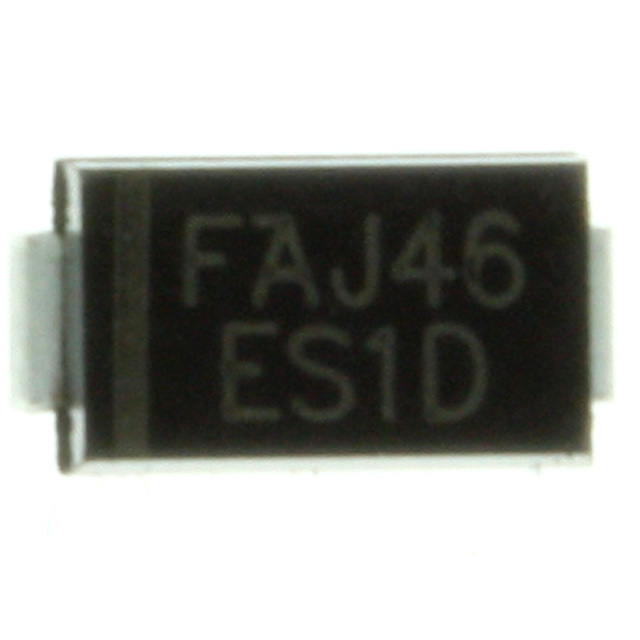

ES1CB-TR, ES1C-TR, ES1D Datasheet download
Category: Discrete Semiconductor Products
MFG: Fairchild Semiconductor (VA)
Package Cooled: DO214AA
D/C: DO214AA
Description: DIODE ULTRAFAST 200V 1A DO-214AC
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: ES1 series
File Size: 67167 KB
Manufacturer: Philips
Download : Click here to Download
PDF/DataSheet Download
Datasheet: ES1 series
File Size: 67167 KB
Manufacturer: Philips
Download : Click here to Download
PDF/DataSheet Download
Datasheet: ES1D
File Size: 372060 KB
Manufacturer: DCCOM [Dc Components]
Download : Click here to Download
| Technical/Catalog Information | ES1D |
| Vendor | Fairchild Semiconductor (VA) |
| Category | Discrete Semiconductor Products |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 920mV @ 1A |
| Reverse Recovery Time (trr) | 15ns |
| Current - Reverse Leakage @ Vr | 5A @ 200V |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Packaging | Digi-Reel? |
| Capacitance @ Vr, F | 7pF @ 4V, 1MHz |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | ES1D ES1D ES1DFSDKR ND ES1DFSDKRND ES1DFSDKR |
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing |
|---|---|---|---|---|---|---|---|
| ES1D | Full Production | RoHS Compliant | $0.073 | DO-214AC(SMA) | 2 | TAPE REEL | TBD |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Plastic package has Underwriters Laboratory Flammability Classification 94V-0
For surface mount applications
Low profile package
Ideally suited for use in very high frequency switching power supplies, nverters and as a free wheeling diodes
Ultrafast recovery times for high efficiency
Low forward voltage
Low leakage current
Glass passivated chip junction
High temperature soldering guaranteed:250°C/10 seconds on terminals
