MFG:Hirose Electric Co Ltd (VA) Category:Connectors Package Cooled:SMD D/C:07+

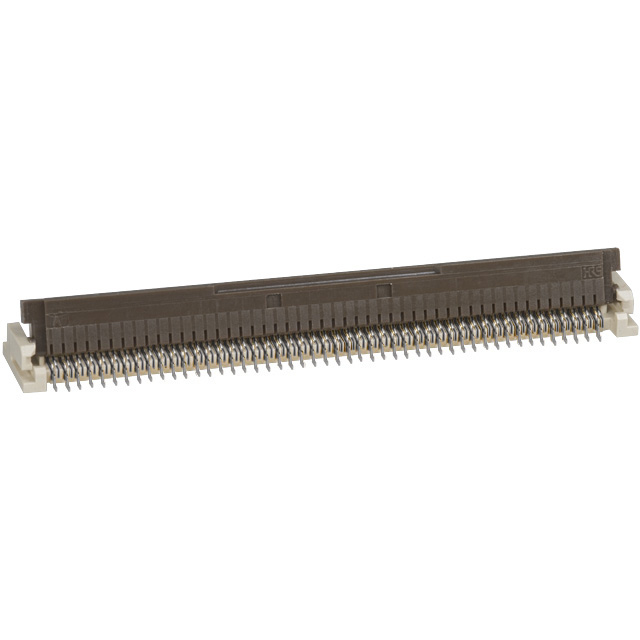

FH16M-80S-0.4SHW(05), FH16M-80S-0.8SHW(05), FH16M-96S-0.4SHW Datasheet download
Category: Connectors
MFG: Hirose Electric Co Ltd (VA)
Package Cooled: SMD
D/C: 07+
Description: CONN FFC/FPC 96POS .4MM SMD TIN
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FH101
File Size: 181880 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FH101
File Size: 181880 KB
Manufacturer: ETC [ETC]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FH16M-96S-0.4SHW
File Size: 328714 KB
Manufacturer: HIROSE [Hirose Electric]
Download : Click here to Download
| Technical/Catalog Information | FH16M-80S-0.4SHW(05) |
| Vendor | Hirose Electric Co Ltd |
| Category | Connectors |
| Pitch | 0.016" (0.40mm) |
| Mounting Type | Surface Mount, Right Angle |
| Features | Zero Insertion Force (ZIF) |
| Packaging | Tape & Reel (TR) |
| Connector Type | Bottom Contacts |
| Number of Positions | 80 |
| Locking Feature | Flip Lock |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FH16M 80S 0 4SHW 05 FH16M80S04SHW05 |
| Technical/Catalog Information | FH16M-96S-0.4SHW |
| Vendor | Hirose Electric Co Ltd (VA) |
| Category | Connectors |
| Pitch | 0.016" (0.40mm) |
| Mounting Type | Surface Mount, Right Angle |
| Features | Zero Insertion Force (ZIF) |
| Packaging | Cut Tape (CT) |
| Connector Type | Bottom Contacts |
| Number of Positions | 96 |
| Locking Feature | Flip Lock |
| Termination | Solder |
| FFC, FCB Thickness | 0.30mm |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | FH16M 96S 0 4SHW FH16M96S04SHW HFP096CT ND HFP096CTND HFP096CT |
1. High Density FPC Connector
The FH16 series is a fine pitch, zero insertion force (ZIF), right angle, bottom ontact, connector compatible with flexible printed circuits (FPC) with a pitch f 0.3mm, 0.4mm, and 0.5mm and a recommended thickness of 0.295mm for ingle-sided or 0.306mm for double-sided. The FH16 provides a higher pin ount given the same amount of board space than other manufacturers of imilar product. With a large selection in pin density, the FH16 series greatly mproves design flexibility. H16 : 0.3mm pitch 60, 80, and 90 contacts H16M : 0.4mm pitch 80 and 96 contacts H16H : 0.5mm pitch 50 contacts H16P : 0.5mm pitch 64 contacts
2. Easy mounting on PCB
FH16 supports 0.3mm pitch cable but only requires a 0.6mm pitch pad ayout on the PCB. The FH16's staggered pin design allows the ounting lead area to be twice as wide as the FPC contact area making t easier to place the connector on the board given the fine pitch of the ontacts.
3. User Friendly Flip-Lock Design
The flip-lock (one-touch rotating type) ZIF structure secures the FPC onnection with a single and light force. This design helps simplify ssembly and repair work. When locking the FPC, the audible click ssures the assembly worker of a steady FPC connection resulting in mproved customer service.
4. Prevents FPC from escape and oblique mating
The FH16 series with its recommended FPC dimensions prevents the PC from escape and oblique mating thereby securing a steady onnection.
5. Compatible with Automatic Assembly Tooling
Embossed tape packaging allows for automatic placement onto the PCB.
