MFG:Fairchild Semiconductor (VA) Category:Integrated Circuits (ICs) Package Cooled:TSSOP D/C:2010+
FMS6145, FMS6145MTC14_NL, FMS6145MTC14X Datasheet download
Category: Integrated Circuits (ICs)
MFG: Fairchild Semiconductor (VA)
Package Cooled: TSSOP
D/C: 2010+
Description: IC DRIVER VIDEO FLTR 5CH 14TSSOP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FMS6145
File Size: 65513 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FMS6145MTC14_NL
File Size: 65513 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FMS6145MTC14X_NL
File Size: 65513 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
FMS6145 Low Cost Video Filter (LCVF) is intended to replace passive LC filters and drivers with a low-cost integrated device. Five 4th order filters provide improved image quality compared to typical 2nd or 3rd order passive solutions. The FMS6145 may be directly driven by a DC-coupled DAC output or an AC-coupled signal. Internal diode clamps and bias circuitry may be used if AC-coupled inputs are required (see applications section for details).
The outputs can drive AC or DC-coupled single (150) ordual (75) loads. DC-coupling the outputs removes the need for output coupling capacitors. The input DC levels will be offset approximately +280mV at the output (see applications section for details).
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
|---|---|---|---|---|---|---|---|---|

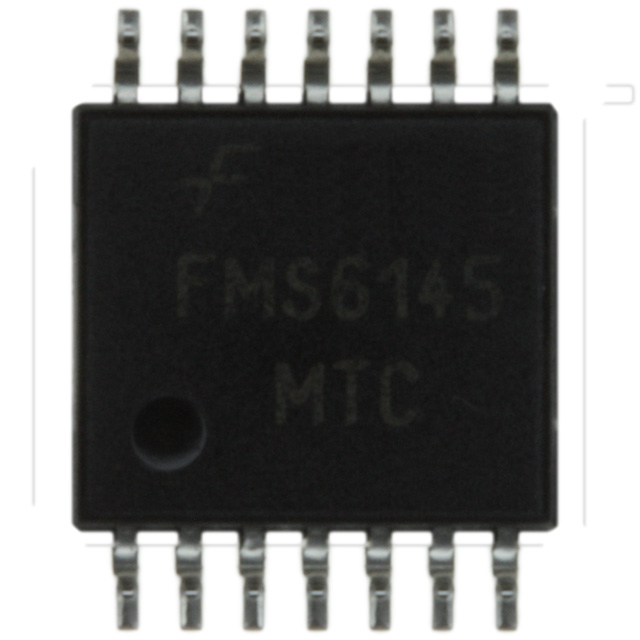

| FMS6145MTC14 | Not recommended for new designs | RoHS Compliant | N/A | TSSOP | 14 | RAIL | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: FMS6145 Line 3: MTC | |
| FMS6145MTC14X | Full Production | RoHS Compliant | $0.64 | TSSOP | 14 | TAPE REEL | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: FMS6145 Line 3: MTC |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FMS6145 is available. Click here for more information . |
| Technical/Catalog Information | FMS6145MTC14X |
| Vendor | Fairchild Semiconductor (VA) |
| Category | Integrated Circuits (ICs) |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP |
| Type | Driver |
| Packaging | Digi-Reel? |
| Applications | Set-Top Boxes, Video Players, Recorders |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FMS6145MTC14X FMS6145MTC14X FMS6145MTC14XDKR ND FMS6145MTC14XDKRND FMS6145MTC14XDKR |
