MFG:Fairchild Semiconductor Category:Integrated Circuits (ICs) Package Cooled:TSSOP D/C:08+
FMS6243MTC14X, FMS6246, FMS6246MTC20_NL Datasheet download
Category: Integrated Circuits (ICs)
MFG: Fairchild Semiconductor
Package Cooled: TSSOP
D/C: 08+

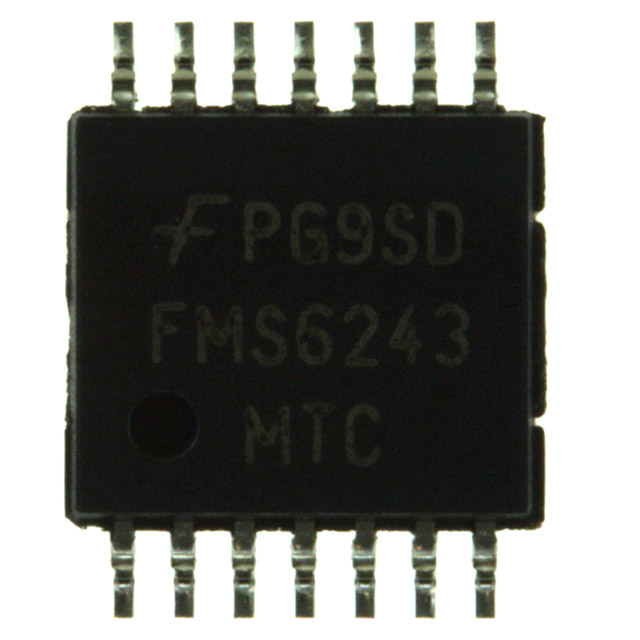

Description: IC DRIVER SD VID FILTER 14-TSSOP
Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.
TOP
PDF/DataSheet Download
Datasheet: FMS-109
File Size: 222098 KB
Manufacturer: MACOM [Tyco Electronics]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FMS6246
File Size: 95178 KB
Manufacturer: FAIRCHILD [Fairchild Semiconductor]
Download : Click here to Download
PDF/DataSheet Download
Datasheet: FMS-109
File Size: 222098 KB
Manufacturer: MACOM [Tyco Electronics]
Download : Click here to Download
| Technical/Catalog Information | FMS6243MTC14X |
| Vendor | Fairchild Semiconductor |
| Category | Integrated Circuits (ICs) |
| Mounting Type | Surface Mount |
| Package / Case | 14-TSSOP |
| Type | Video Filter |
| Packaging | Tape & Reel (TR) |
| Applications | Set-Top Boxes, Video Players, Recorders |
| Lead Free Status | Lead Free |
| RoHS Status | RoHS Compliant |
| Other Names | FMS6243MTC14X FMS6243MTC14X FMS6243MTC14XTR ND FMS6243MTC14XTRND FMS6243MTC14XTR |
The FMS6246 Low Cost Video Filter (LCVF) is intended to replace passive LC filters and drivers with a low-cost integrated device. Six 6th order Butterworth filters provide improved image quality compared to typical passive solutions. The combination of low power Standard Definition (SD) and Progressive Scan (PS) filters greatly simplify DVD video output circuitry. Three channels offer fixed SD filters while the other three are selectable between SD and PS filters.
The FMS6246 offers a fixed gain of 6dB. A metal option is available that provides a fixed gain of 9dB, offering even more flexibility.
The FMS6246 may be directly driven by a DC-coupled DAC output or an AC-coupled signal. Internal diode clamps and bias circuitry may be used if AC-coupled inputs are required (see applications section for details).
The outputs can drive AC or DC-coupled single (150W) video loads. DC-coupling the outputs removes the need for output coupling capacitors. The input DC levels will be offset approximately +280mV at the output.
| Product | Product status | Eco Status | Pricing* | Package type | Leads | Packing method | Package Drawing | Package Marking Convention** |
|---|---|---|---|---|---|---|---|---|
| FMS6246MTC20 | Full Production | RoHS Compliant | $1.03 | TSSOP | 20 | RAIL | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: 6246 Line 3: MTC20 | |
| FMS6246MTC20X | Full Production | RoHS Compliant | $1.03 | TSSOP | 20 | TAPE REEL | Line 1: $Y (Fairchild logo) &Z (Asm. Plant Code) &2 (2-Digit Date Code) &K Line 2: 6246 Line 3: MTC20 |
| * Fairchild 1,000 piece Budgetary Pricing |
| ** A sample button will appear if the part is available through Fairchild's on-line samples program. If there is no sample button, please contact a Fairchild distributor to obtain samples |
Package marking information for product FMS6246 is available. Click here for more information . |
