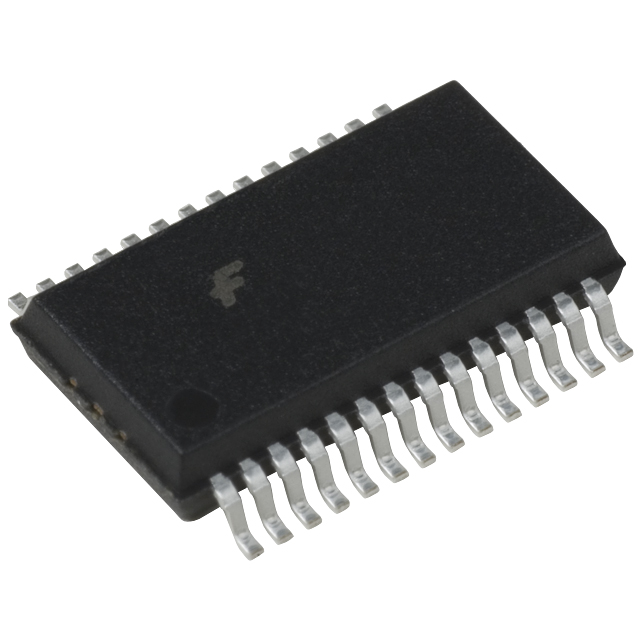

Description: IC VIDEO SW MATRIX 12X9 28SSOP

Attentive hint

Want to post a buying lead? If you are not a member yet, please select the specific/related part number first and then fill the quantity and your contact details in the "Request for Quotation Form" on the left, and then click "Send RFQ".Your buying lead can then be posted, and the reliable suppliers will quote via our online message system or other channels soon.

How to buy ?

How long will receive a response.

Top Sellers:

TOP

FMS6501 General Description

The FMS6501 provides 12 inputs which can be routed to any of 9 outputs. Each input can be routed to one or more outputs but only one input may be routed to any output. The input to output routing is controlled via an I²C compatible digital interface.

Each input supports an integrated clamp option to set the output sync tip level of video with sync to ~300mV. Alternatively, the input may be internally biased to center signals without sync (Chroma, Pb, Pr) at ~1.25V. These DC output levels are for the 6dB gain setting. Higher gain settings will increase the DC output levels accordingly. The input clamp / bias mode is selected via I²C.

FMS6501 Maximum Ratings

Parameter	Min.	Max.	Unit
DC Supply Voltage	-0.3	6	V
Analog and Digital I/O	-0.3	V_CC + 0.3	V
Output Current Any One Channel, Do Not Exceed		60	mA

FMS6501 Features

12 x 9 Crosspoint Matrix
Supports SD, PS, and HD 1080i/1080p Video
Input Clamp / Bias Circuitry
AC or DC-Coupled Inputs
AC or DC-Coupled Outputs
Dual Load(75) Output Drivers with High Impedance Disable
One-to-One or One-to-Many Input to Output Switching
Programmable Gain: +6, +7, +8 or +9dB
I²C^TM Compatible Digital Interface, Standard Mode
3.3V or 5V single supply operation
Lead (Pb) Free SSOP-28 Package

FMS6501 Typical Application

Cable and Satellite set top boxes
TV and HDTV Sets
A/V Switchers
Personal Video Recorders (PVR)
Security / Surveillance
Video Distribution
Automotive (In-Cabin Entertainment)

FMS6501 Connection Diagram

FMS6501MSA28 Parameters

Technical/Catalog Information	FMS6501MSA28
Vendor	Fairchild Semiconductor
Category	Integrated Circuits (ICs)
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	FMS6501MSA28 FMS6501MSA28
